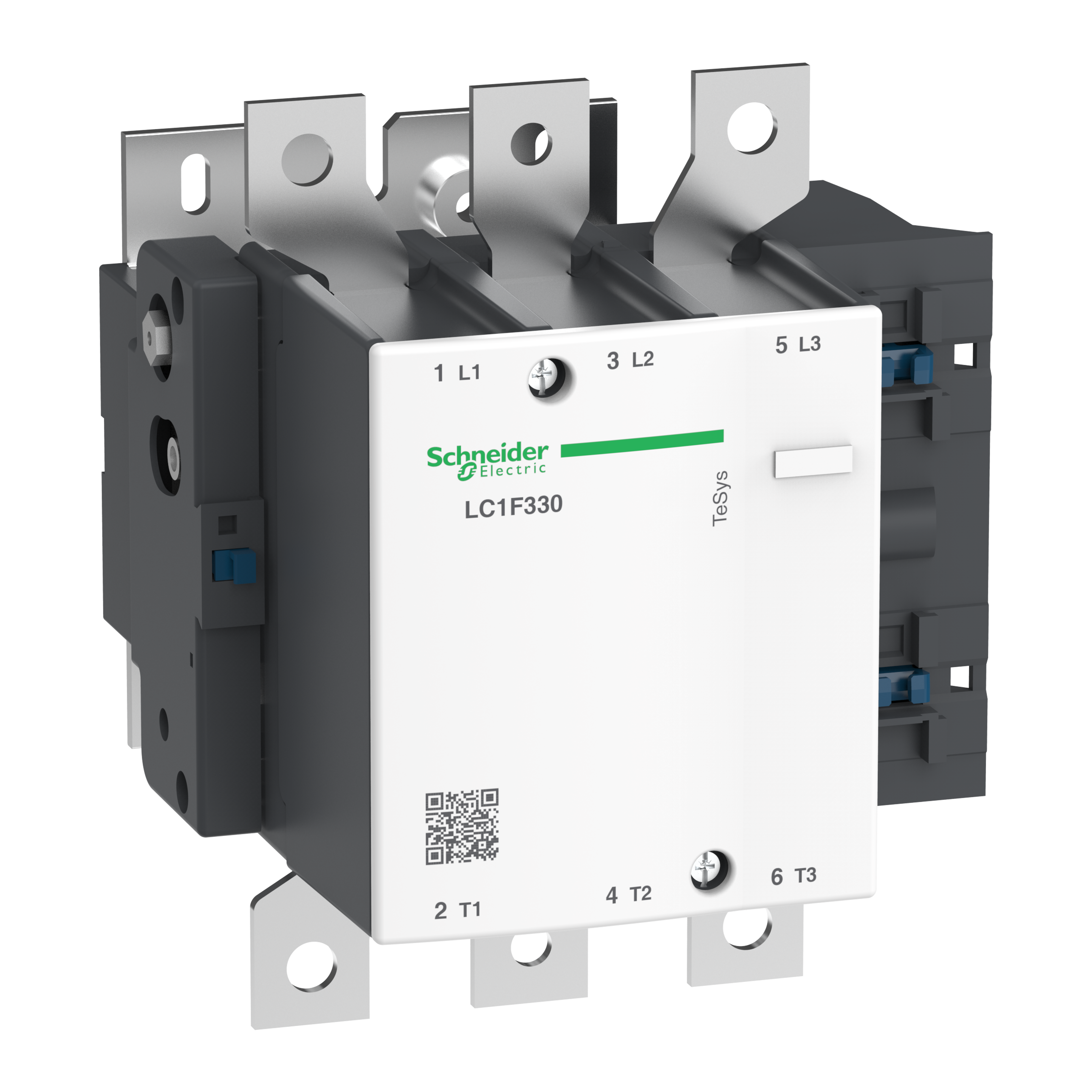

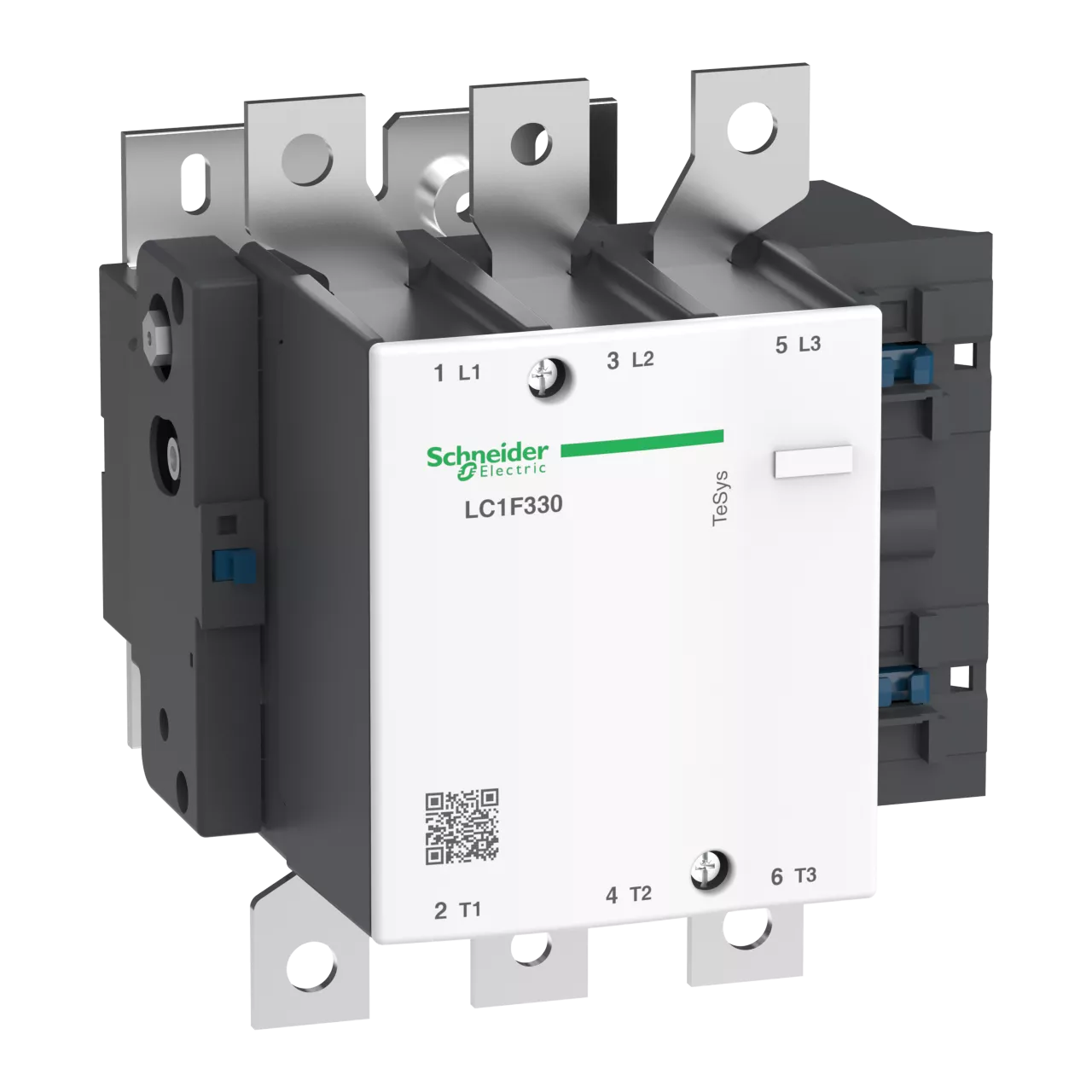

Stycznik mocy TeSys F AC3 330A 3P 1NO 1NC cewka 230VAC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LC1F330P7 |
| GTIN(EAN) | 3389110788280 |
| Price unit | piece |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
| Sale price | from 3 690,00 zł / szt. (3 000,00 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 9,204 kg |
| ETIM class: | Power contactor, AC switching |
| Type of electrical connection of main circuit: | Bolt connection |
| Number of normally open contacts as main contact: | 3 |
| Number of normally closed contacts as main contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-3, 400 V: | 330 A |
| Rated operation current Ie at AC-1, 400 V: | 400 A |
| Rated control supply voltage AC 60 Hz: | 230 - 230 V |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Rated operation power at AC-3, 400 V: | 160 kW |
| Modular version: | no |
| Rated operation power at AC-4, 400 V: | 59 kW |
| Rated operation current Ie at AC-4, 400 V: | 125 A |
