Stycznik mocy TeSys D AC3 95A 3P 1NO 1NC cewka 230VAC zaciski skrzynkowe
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LC1D95P7 |
| GTIN(EAN) | 3389110451733 |
| Price unit | piece |
| Catalog price | 1 971,10 zł (1 602,52 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:

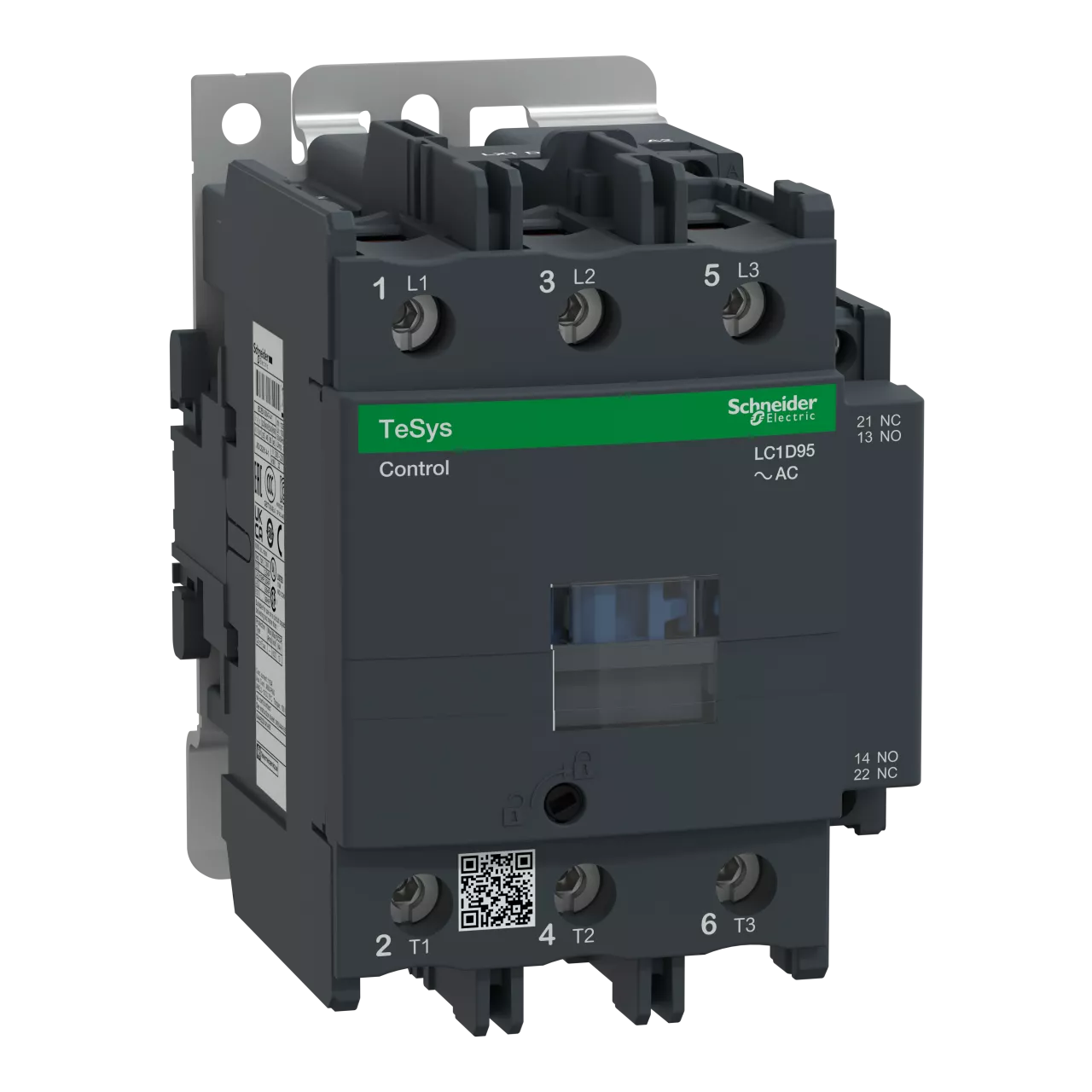

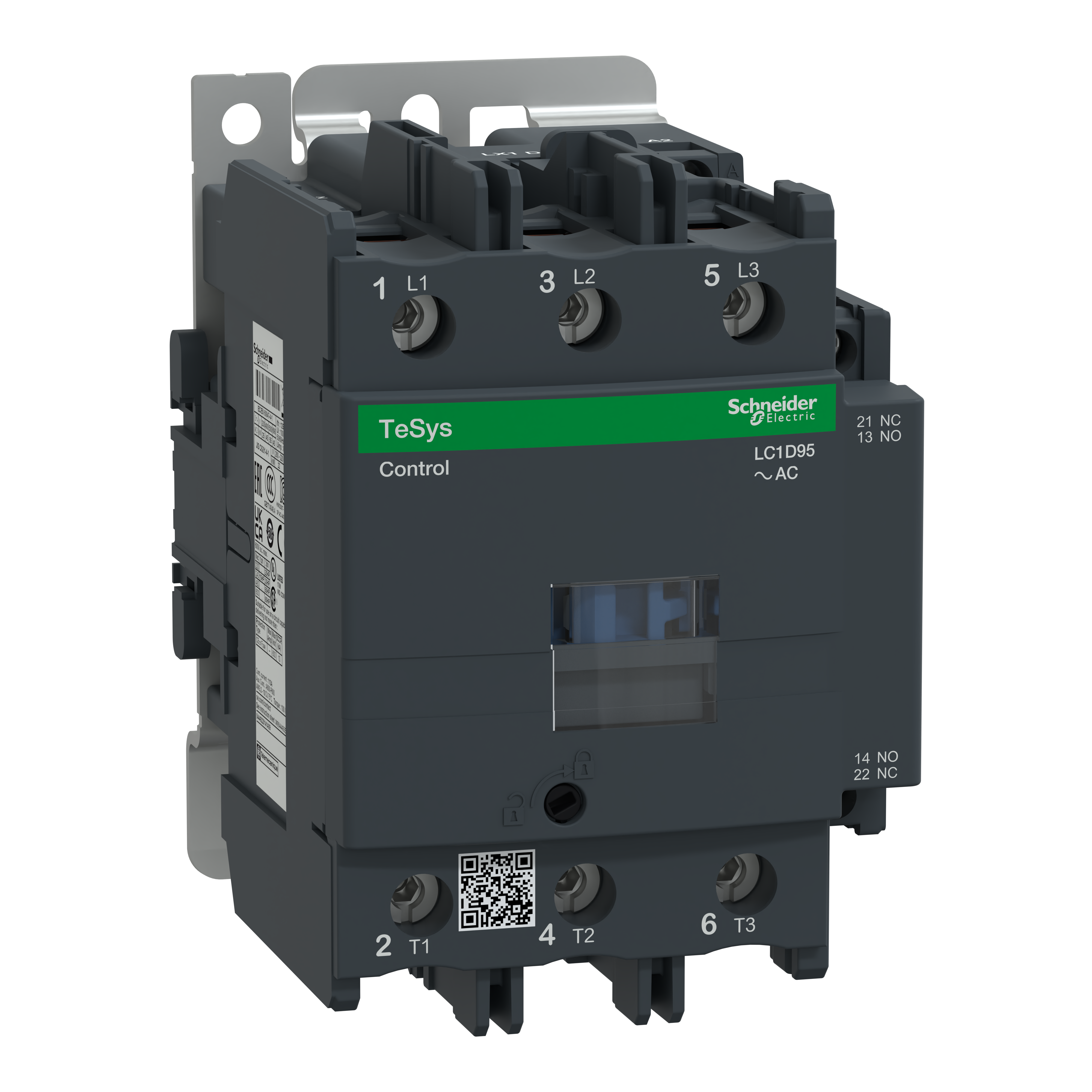

TeSys D contactor, 3 poles (3NO), 80A/1000V AC-3, for motor applications up to 45kW@400V. It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirrror certified), connections by screw terminals. Compact (85mm width), mounting on 35mm or 75mm DIN-rails, for operating rates until 60 cycles/min, it procures high reliability and durability. Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 141 |
| Gross weight: | 1,567 kg |
| ETIM class: | Power contactor, AC switching |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally open contacts as main contact: | 3 |
| Number of normally closed contacts as main contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-3, 400 V: | 95 A |
| Rated operation current Ie at AC-1, 400 V: | 125 A |
| Rated control supply voltage AC 60 Hz: | 230 - 230 V |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Rated operation power at AC-3, 400 V: | 45 kW |
| Modular version: | no |
| Rated operation power at AC-4, 400 V: | 15 kW |
| Rated operation current Ie at AC-4, 400 V: | 32 A |
