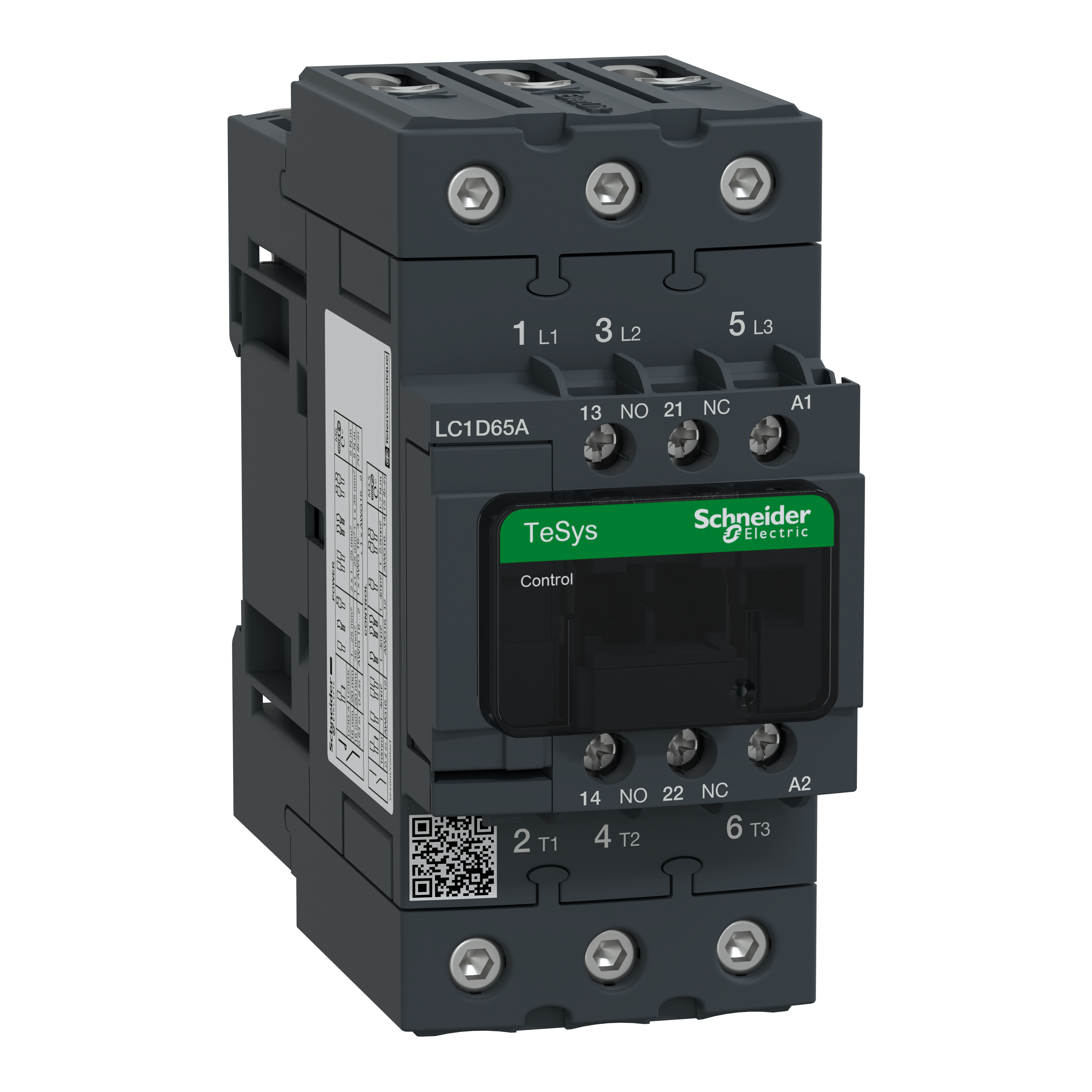

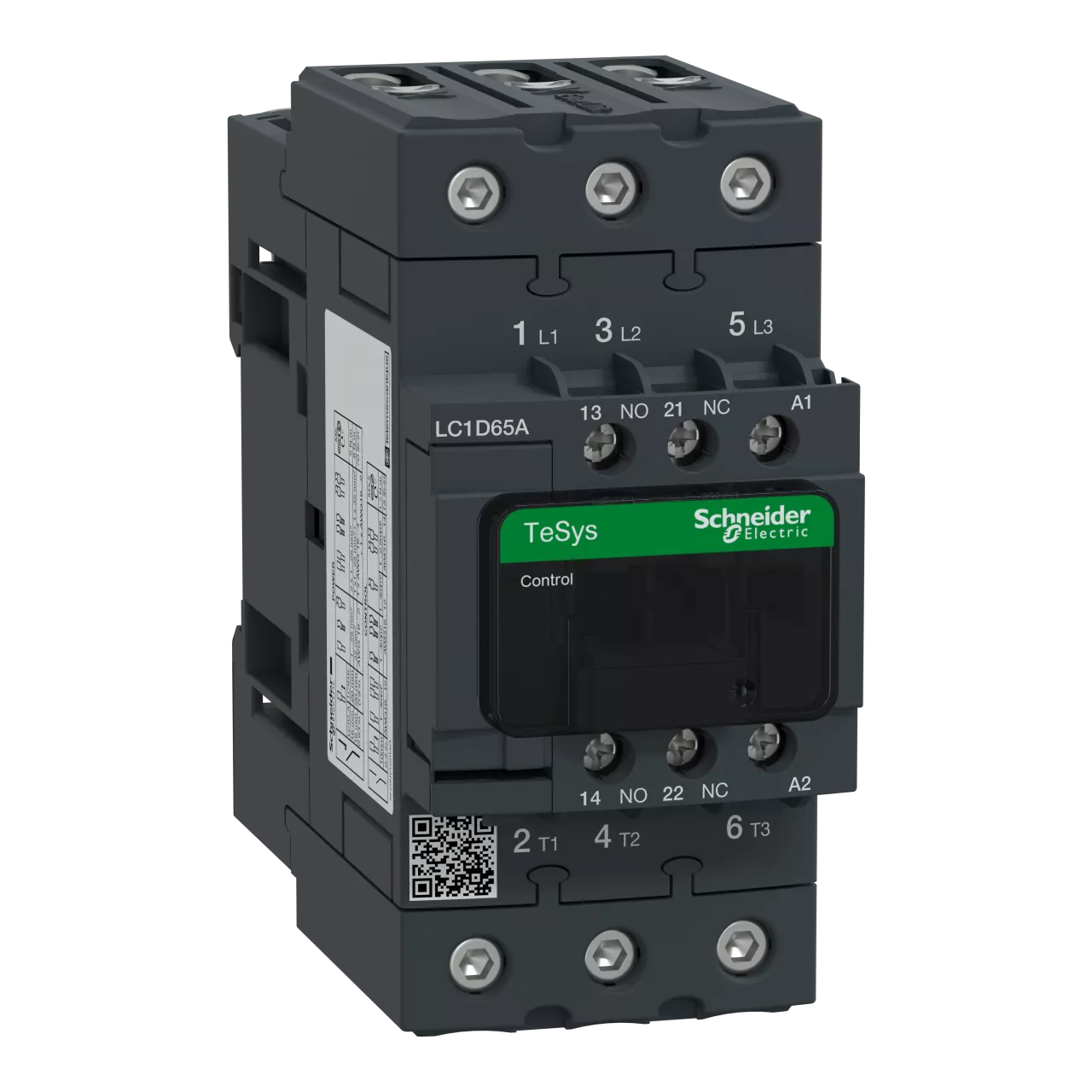

Stycznik mocy TeSys D 65A 30kW 3P 1NO 1NC cewka 230VAC zaciski EVK skrzynkowe
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LC1D65AP7 |
| GTIN(EAN) | 3389119409025 |
| Price unit | piece |
| Catalog price | 1 127,11 zł (916,35 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
LC1D65AP7 to kompaktowy 3-biegunowy stycznik TeSys D firmy Schneider Electric do zastosowań silnikowych. Znamionowe 65A AC-3 30kW/400V, stycznik zawiera cewkę o napięciu sterującym 230V 50/60Hz AC i styki pomocnicze 1NO + 1NC. Może być stosowany w aplikacjach bezpiecze ństwa. •Znamionowy prąd łączeniowy AC-3 do 440V: 65A •Napięcie sterownia cewki: 230V AC •Liczba biegunów: 3 •Kategoria użytkowania zgodnie z IEC 60947-4-1: AC-3
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 81 |
| Gross weight: | 921 g |
| ETIM class: | Power contactor, AC switching |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally open contacts as main contact: | 3 |
| Number of normally closed contacts as main contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-3, 400 V: | 65 A |
| Rated operation current Ie at AC-1, 400 V: | 80 A |
| Rated control supply voltage AC 60 Hz: | 230 - 230 V |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Rated operation power at AC-3, 400 V: | 30 kW |
| Modular version: | no |
| Rated operation power at AC-4, 400 V: | 11 kW |
| Rated operation current Ie at AC-4, 400 V: | 25 A |
