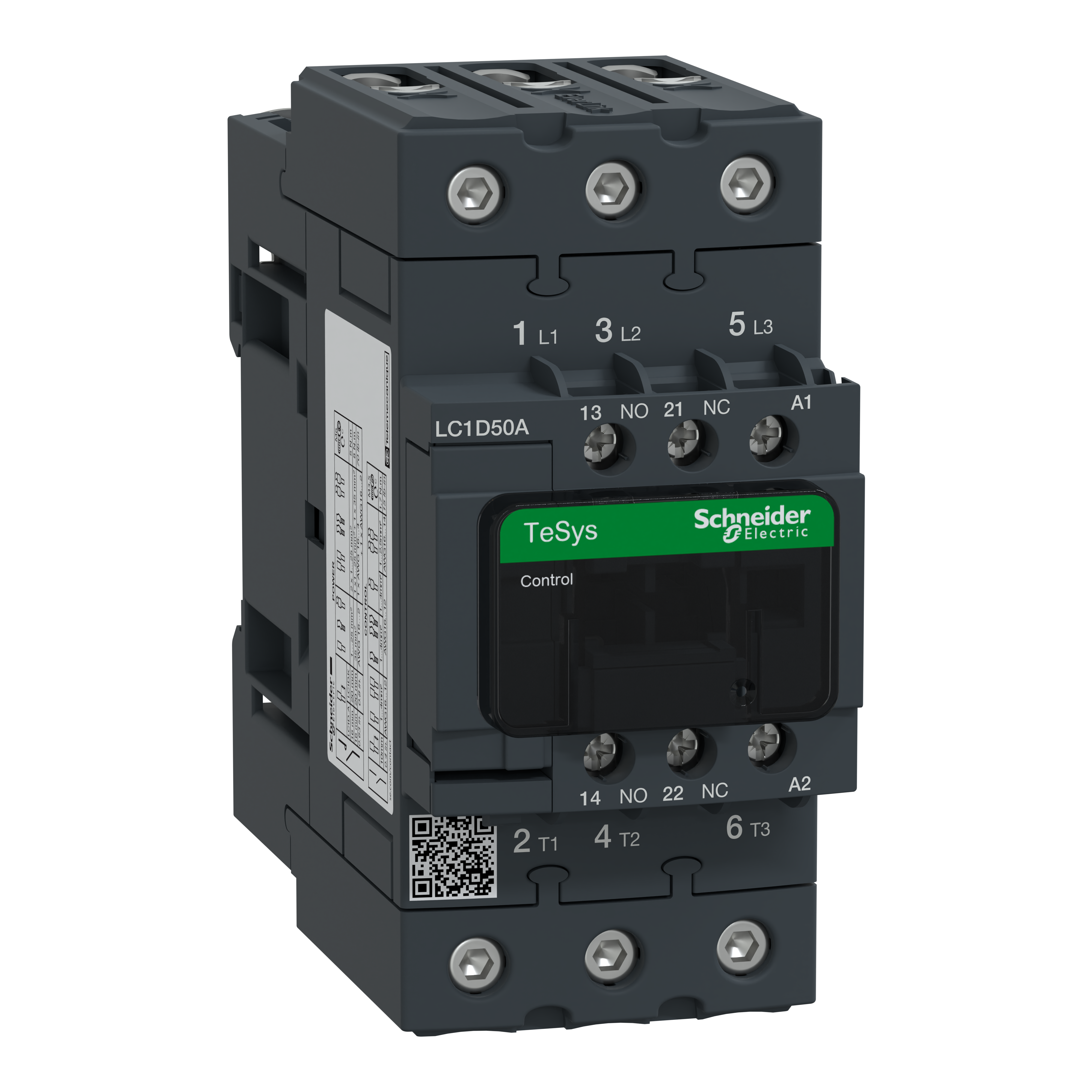

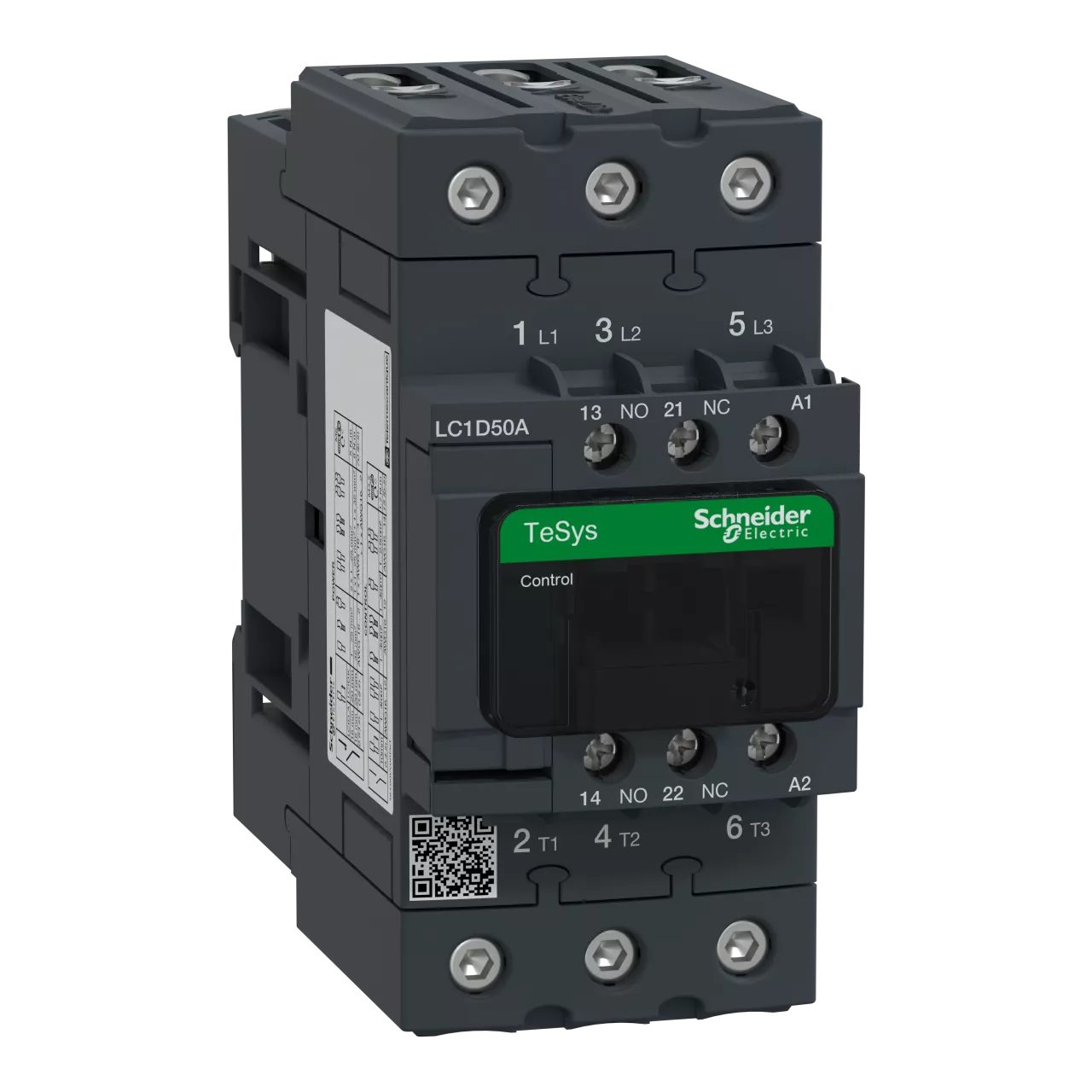

Stycznik mocy TeSys D 50A 3P 1NO 1NC cewka 120VAC zaciski EVK skrzynkowe
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | LC1D50AG7 |
GTIN(EAN) | 3389119408677 |
Price unit | piece |
Catalog price | 1 024,17 zł (832,66 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 920 g |
ETIM class: | Power contactor, AC switching |
Type of electrical connection of main circuit: | Screw connection |
Number of normally open contacts as main contact: | 3 |
Number of normally closed contacts as main contact: | 0 |
Number of auxiliary contacts as normally open contact: | 1 |
Number of auxiliary contacts as normally closed contact: | 1 |
Voltage type for actuating: | AC |
Rated operation current Ie at AC-3, 400 V: | 50 A |
Rated operation current Ie at AC-1, 400 V: | 80 A |
Rated operation power NEMA: | 29.8 kW |
Rated control supply voltage AC 60 Hz: | 120 - 120 V |
Rated operation power at AC-3, 400 V: | 22 kW |
Modular version: | yes |
Rated operation power at AC-4, 400 V: | 22 kW |
Rated operation current Ie at AC-4, 400 V: | 50 A |
