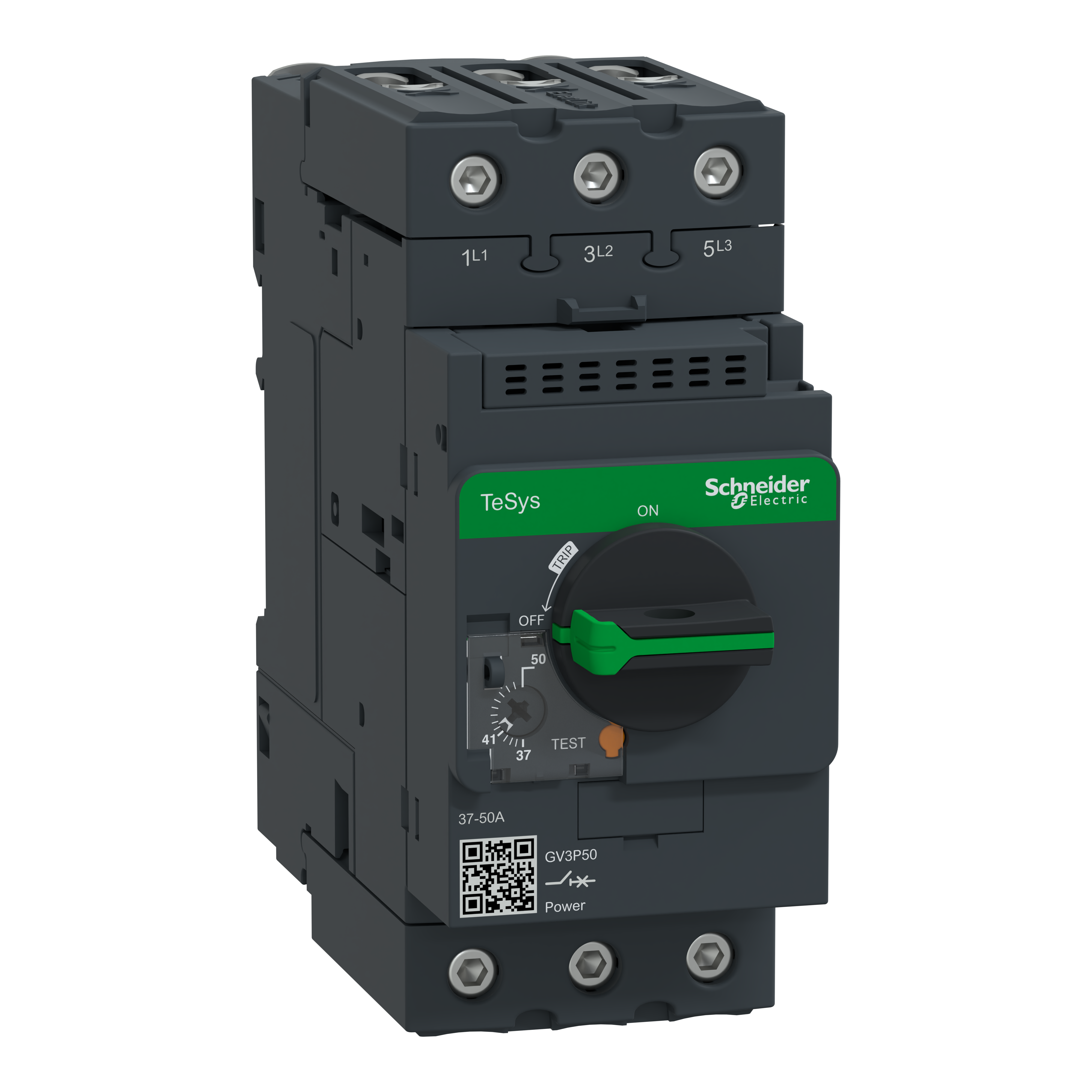

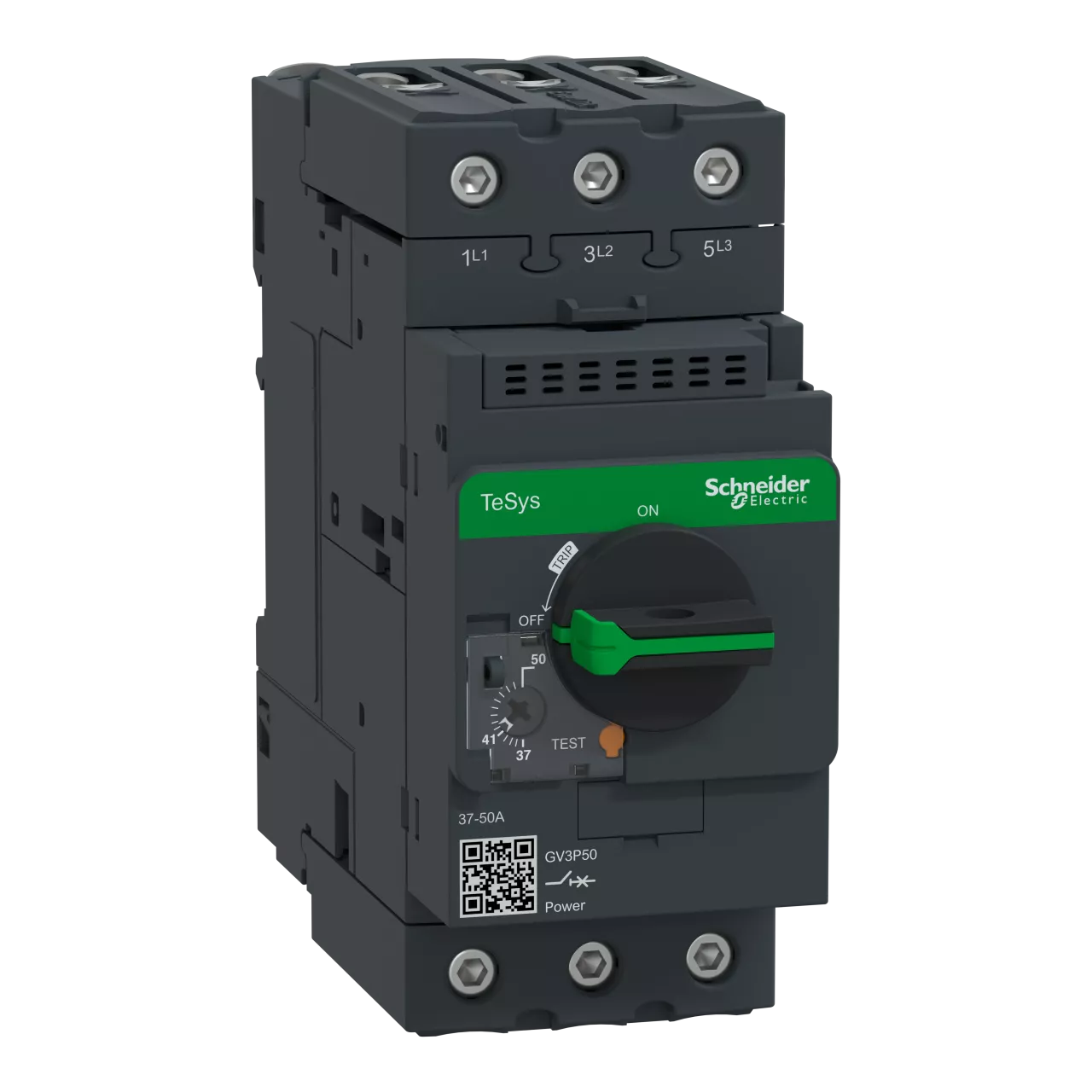

Wyłącznik silnikowy magnetotermiczny TeSys GV3P napęd obrotowy 50A zaciski everlink
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | GV3P50 |
| GTIN(EAN) | 3389119405409 |
| Price unit | piece |
| Catalog price | 1 367,53 zł (1 111,81 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wyłącznik silnikowy TeSys GV, 3-polowy (3P), 50 A/690 V, do zastosowań w silnikach 3-fazowych 22kW przy 400V. Zapewnia ochronę termiczno-magnetyczną z zakresem 37-50A, wyzwalanie magnetyczne przy 14xIn, wysoka zdolność wyłączania Icu 50kA przy 400V. Połączenie za pomocą zacisków śrubowych BTR Everlink. Sterowanie start-stop za pomocą pokrętła gwarantowane przez 50 000 cykli AC-3. Certyfikat zgodności z wieloma normami (IEC, UL, CSA, CCC, EAC, Marine, ATEX), zgodność z Green Premium (RoHS/REACh).
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 98 |
| Gross weight: | 1,008 kg |
| ETIM class: | Motor protection circuit-breaker |
| Type of electrical connection of main circuit: | Screw connection |
| Adjustment range undelayed short-circuit release: | 700 - 700 A |
| Device construction: | Complete device in housing |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Degree of protection (IP): | IP20 |
| Height: | 132 mm |
| Rated operating voltage: | 690 - 690 V |
| Depth: | 136 mm |
| Width: | 55 mm |
| Switch off technique: | Thermomagnetic |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 50 kA |
| Rated operation power at AC-3, 400 V: | 22 kW |
| Phase failure sensitive: | yes |
| With integrated auxiliary switch: | no |
| Type of control element: | Turn button |
| Rated permanent current Iu: | 50 A |
| Overload release current setting: | 37 - 50 A |
| With thermal overload protection: | yes |
| Rated operation power at AC-3, 230 V: | 15 kW |
