Stycznik mocy TeSys D AC3 38A 3P 1NO 1NC cewka 24VAC zaciski skrzynkowe
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LC1D38B7 |
| GTIN(EAN) | 3389110352092 |
| Price unit | piece |
| Catalog price | 678,62 zł (551,72 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

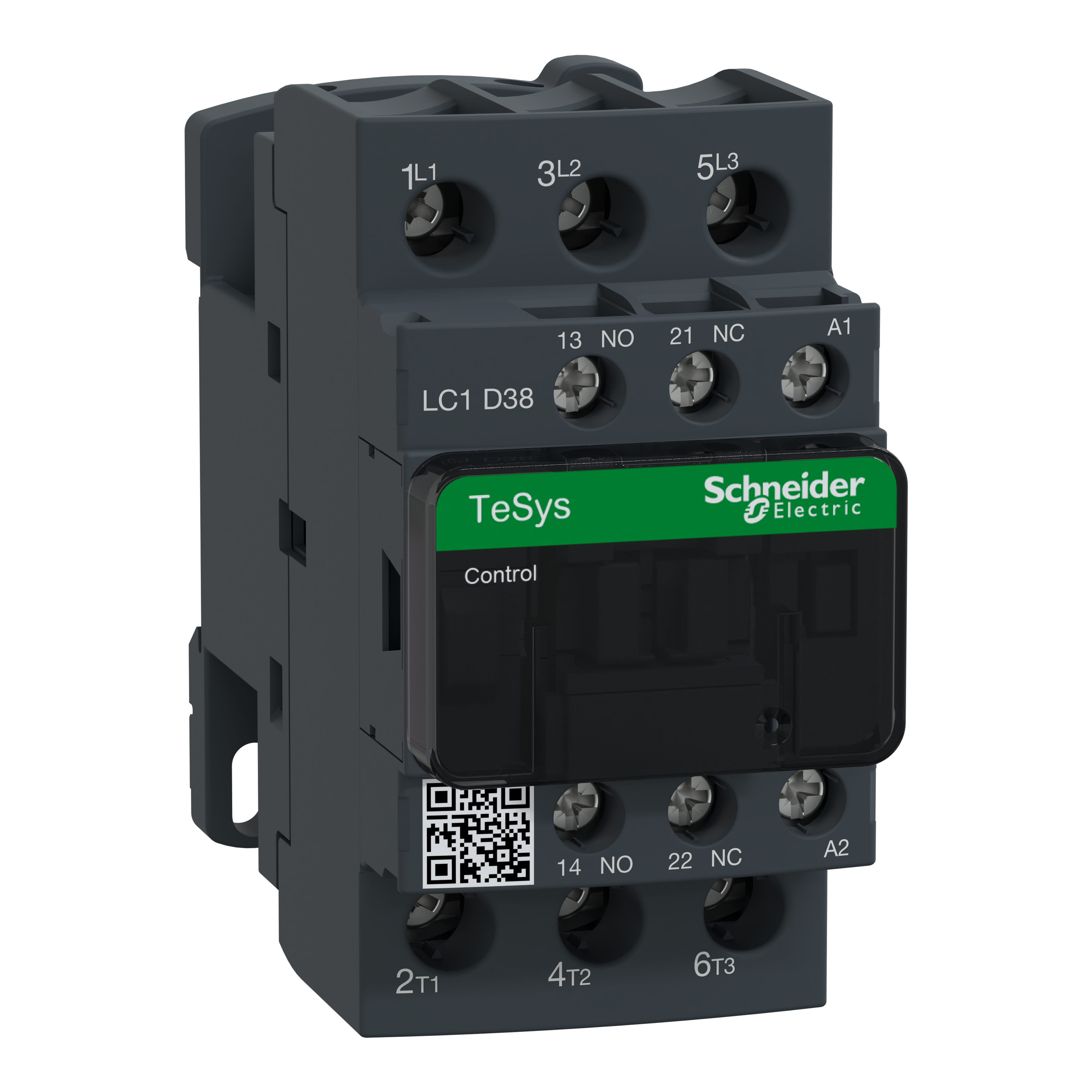

TeSys D contactor, 3 poles (3NO), 38A/690V AC-3, for motor applications up to 18.5kW@400V. It provides a 24V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. Compact (45mm width), DIN-rail mounting, for high operating rates until 60 cycles/min, it procures high reliability and durability. Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 421 g |
| ETIM class: | Power contactor, AC switching |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally open contacts as main contact: | 3 |
| Number of normally closed contacts as main contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-3, 400 V: | 38 A |
| Rated operation current Ie at AC-1, 400 V: | 50 A |
| Rated control supply voltage AC 60 Hz: | 24 - 24 V |
| Rated control supply voltage AC 50 Hz: | 24 - 24 V |
| Rated operation power at AC-3, 400 V: | 18.5 kW |
| Modular version: | no |
| Rated operation power at AC-4, 400 V: | 7.5 kW |
| Rated operation current Ie at AC-4, 400 V: | 18 A |
