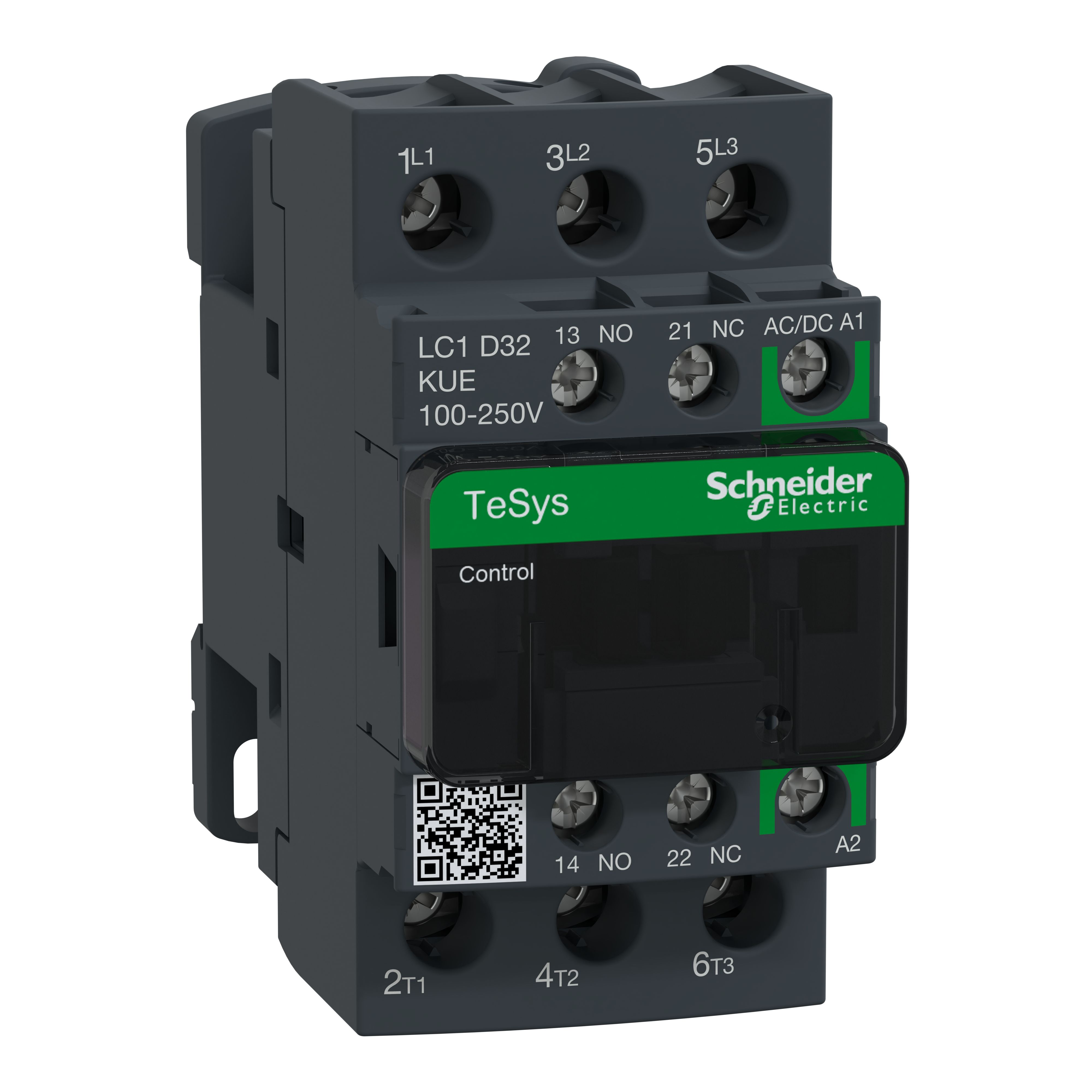

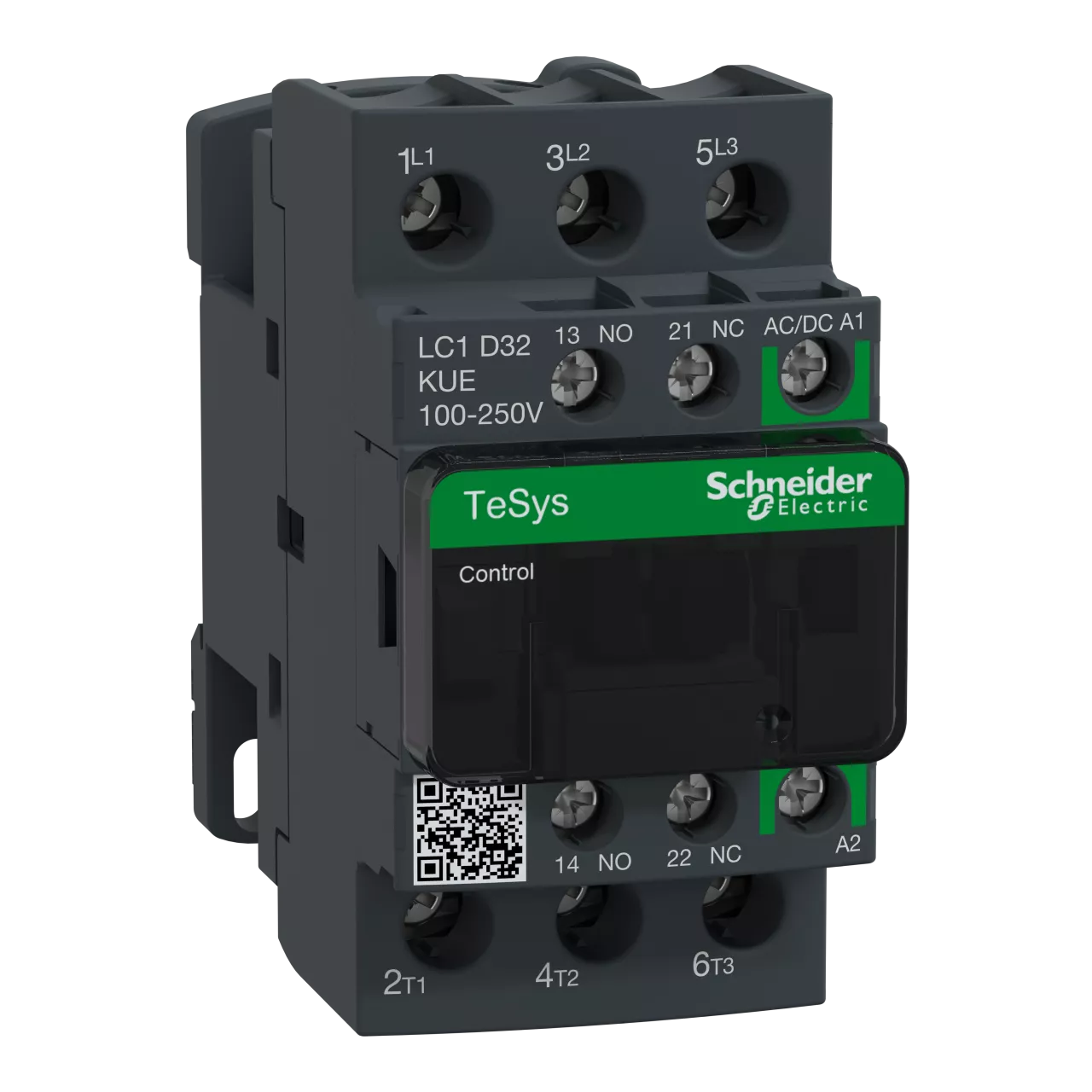

Stycznik mocy, TeSys Deca, I=32A, cewka 100-250VAC/DC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LC1D32KUE |
| GTIN(EAN) | 3606480987779 |
| Price unit | piece |
| Catalog price | 1 561,55 zł (1 269,55 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 456 g |
| ETIM class: | Power contactor, AC switching |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally open contacts as main contact: | 3 |
| Number of normally closed contacts as main contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Voltage type for actuating: | AC/DC |
| Rated operation current Ie at AC-3, 400 V: | 32 A |
| Rated operation current Ie at AC-1, 400 V: | 50 A |
| Rated control supply voltage AC 60 Hz: | 100 - 250 V |
| Rated control supply voltage AC 50 Hz: | 100 - 250 V |
| Rated control supply voltage DC: | 100 - 250 V |
| Rated operation power at AC-3, 400 V: | 15 kW |
| Modular version: | no |
| Rated operation power at AC-4, 400 V: | 7.5 kW |
| Rated operation current Ie at AC-4, 400 V: | 18 A |
