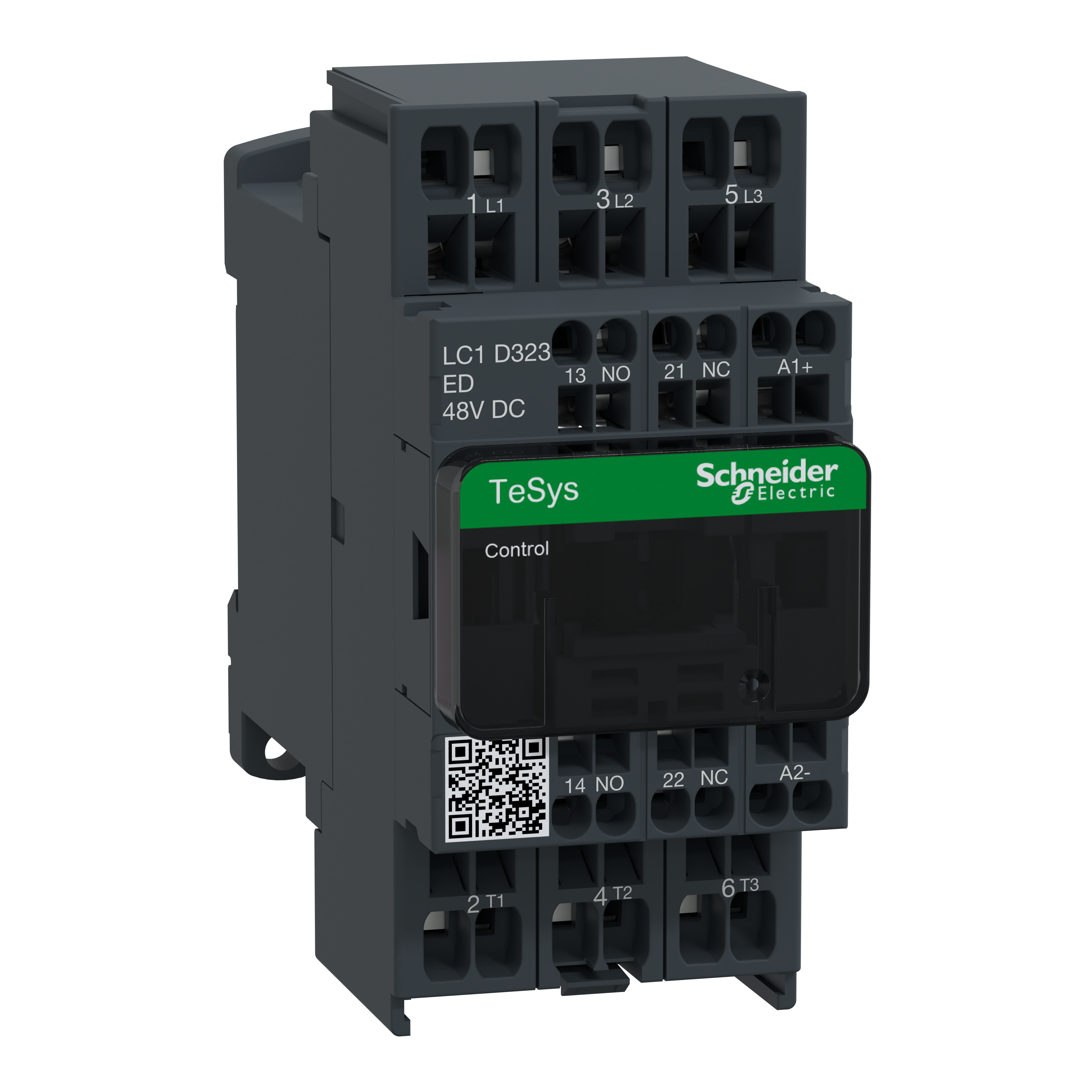

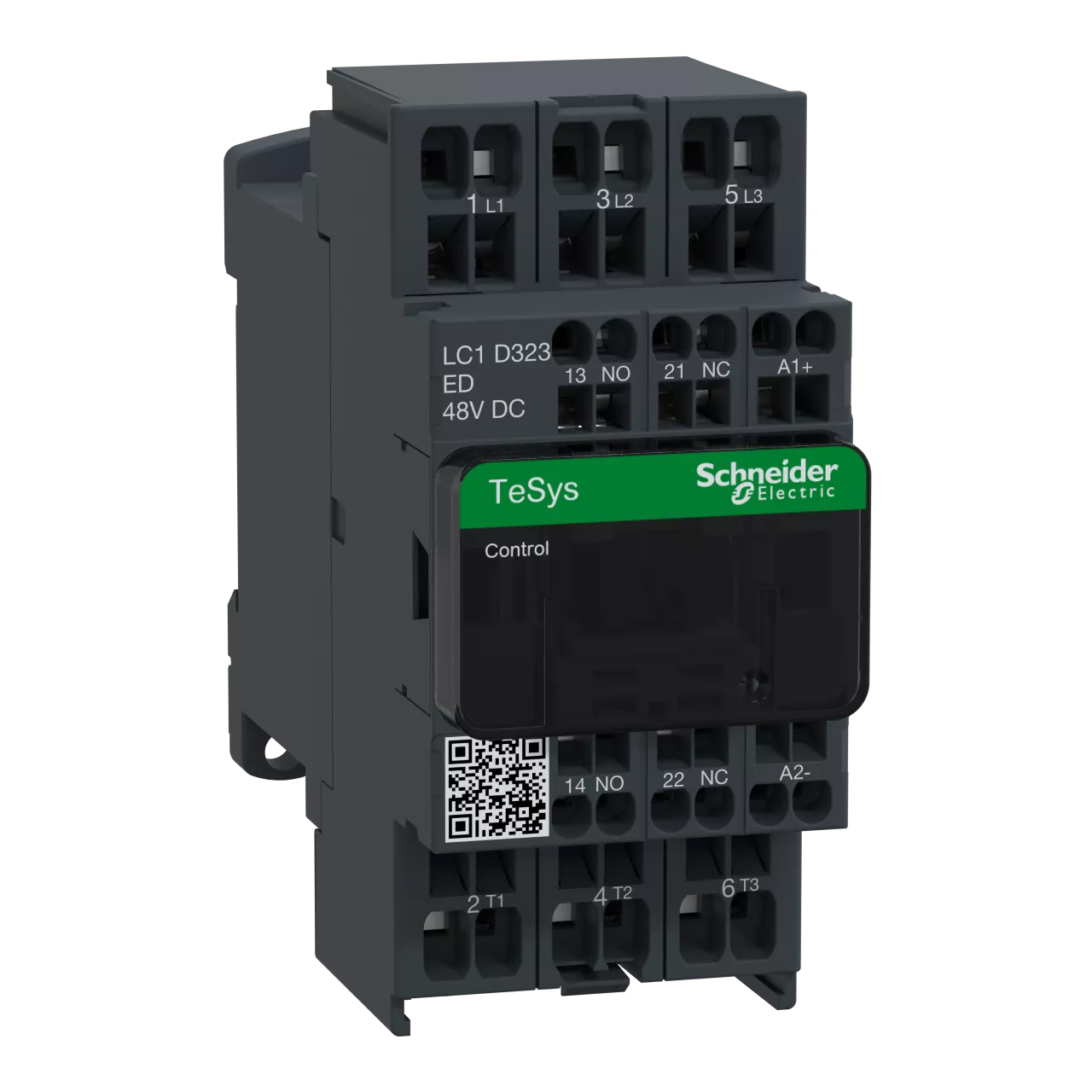

Stycznik mocy TeSys D AC3 32A 3P 1NO 1NC cewka 48VDC zaciski sprężynowe
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LC1D323ED |
| GTIN(EAN) | 3389110807806 |
| Price unit | piece |
| Catalog price | 1 451,18 zł (1 179,82 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 550 g |
| ETIM class: | Power contactor, AC switching |
| Type of electrical connection of main circuit: | Spring clamp connection |
| Number of normally open contacts as main contact: | 3 |
| Number of normally closed contacts as main contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Voltage type for actuating: | DC |
| Rated operation current Ie at AC-3, 400 V: | 32 A |
| Rated operation current Ie at AC-1, 400 V: | 40 A |
| Rated control supply voltage DC: | 48 - 48 V |
| Rated operation power at AC-3, 400 V: | 15 kW |
| Modular version: | no |
| Rated operation power at AC-4, 400 V: | 7.5 kW |
| Rated operation current Ie at AC-4, 400 V: | 18 A |
