Stycznik mocy TeSys D AC3 12A 3P 1NO 1NC cewka 24VAC
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | LC1D12B7 |
GTIN(EAN) | 3389110349160 |
Price unit | piece |
Catalog price | 218,31 zł (177,49 zł + 23% VAT) |
Sale price | from 100,49 zł / szt. (81,70 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

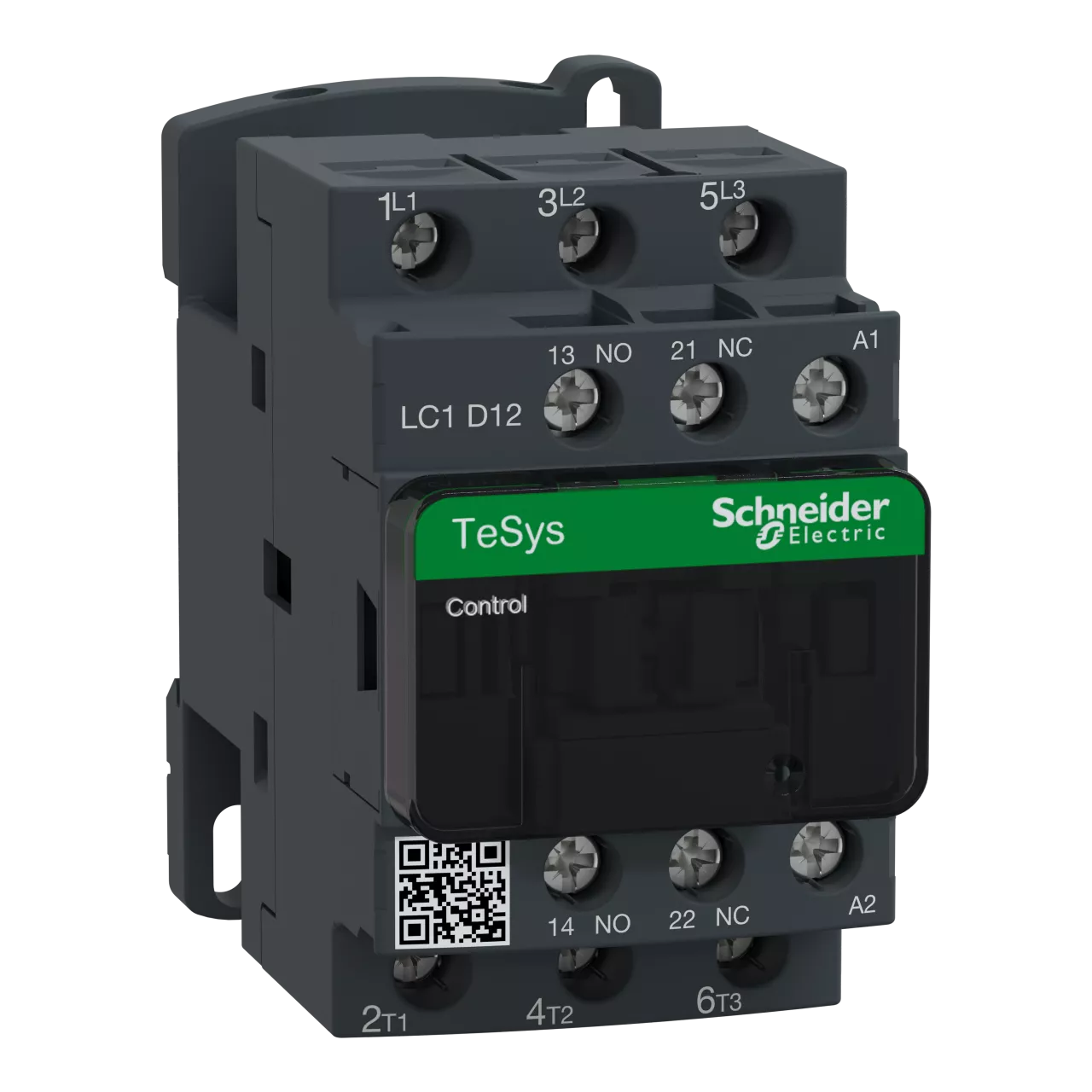

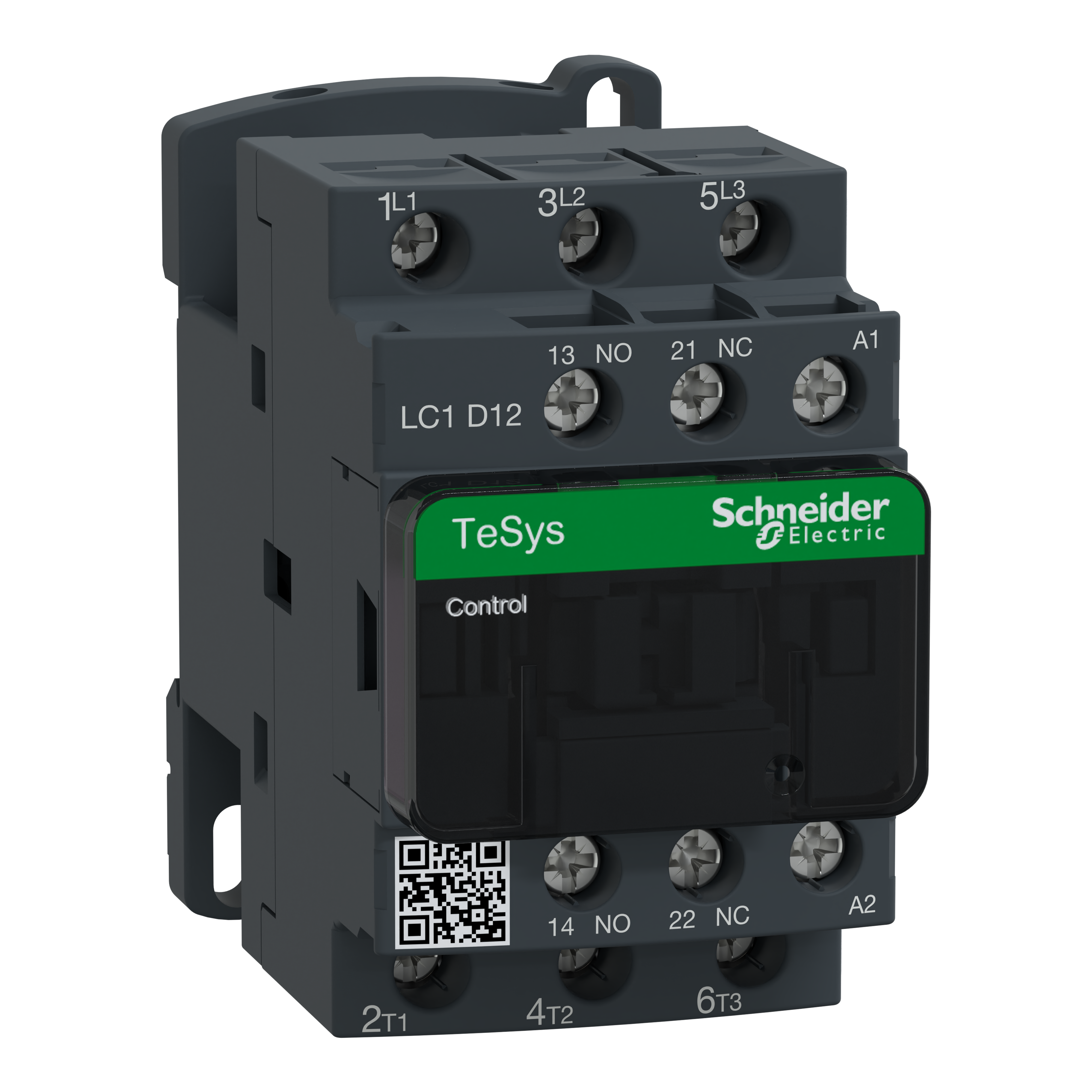

LC1D12B7 to kompaktowy 3-biegunowy stycznik TeSys D firmy Schneider Electric do zastosowań silnikowych. Znamionowy prąd 12A AC-3 5,5kW przy 400V, zawiera 24V 50/60Hz AC cewkę i styki pomocnicze 1NO + 1NC. Może być stosowany w aplikacjach bezpieczeństwa. •Znamionowy prąd łączeniowy AC-3 do 440V: 12A •Napięcie sterownia cewki: 24V AC •Liczba biegunów: 3 •Kategoria użytkowania zgodnie z IEC 60947-4-1: AC-3
Additional features:
Information | Value |
---|---|
Gross weight: | 359 g |
ETIM class: | Power contactor, AC switching |
Type of electrical connection of main circuit: | Screw connection |
Number of normally open contacts as main contact: | 3 |
Number of normally closed contacts as main contact: | 0 |
Number of auxiliary contacts as normally open contact: | 1 |
Number of auxiliary contacts as normally closed contact: | 1 |
Voltage type for actuating: | AC |
Rated operation current Ie at AC-3, 400 V: | 12 A |
Rated operation current Ie at AC-1, 400 V: | 25 A |
Rated control supply voltage AC 60 Hz: | 24 - 24 V |
Rated control supply voltage AC 50 Hz: | 24 - 24 V |
Rated operation power at AC-3, 400 V: | 5.5 kW |
Modular version: | no |
Rated operation power at AC-4, 400 V: | 3 kW |
Rated operation current Ie at AC-4, 400 V: | 7.5 A |
