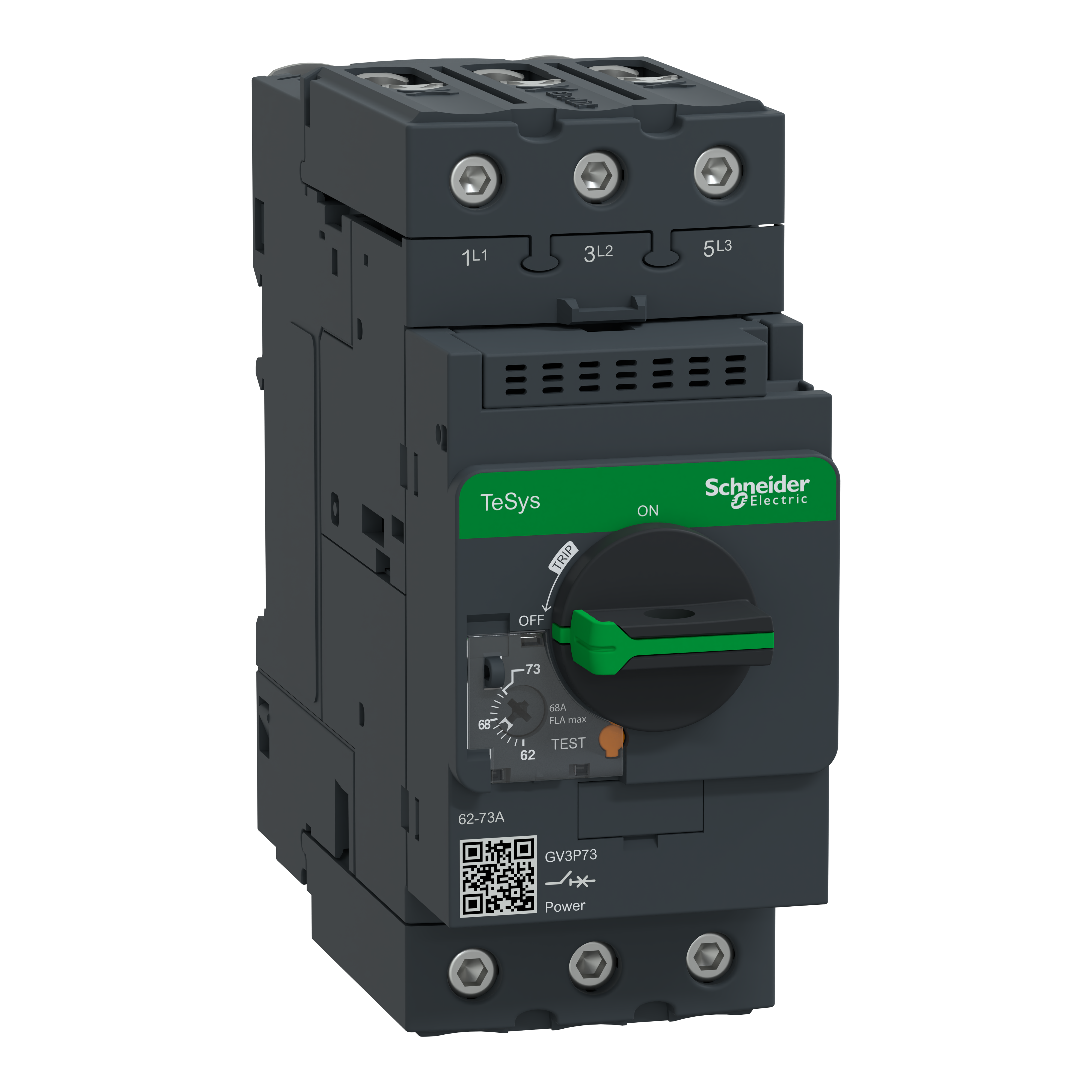

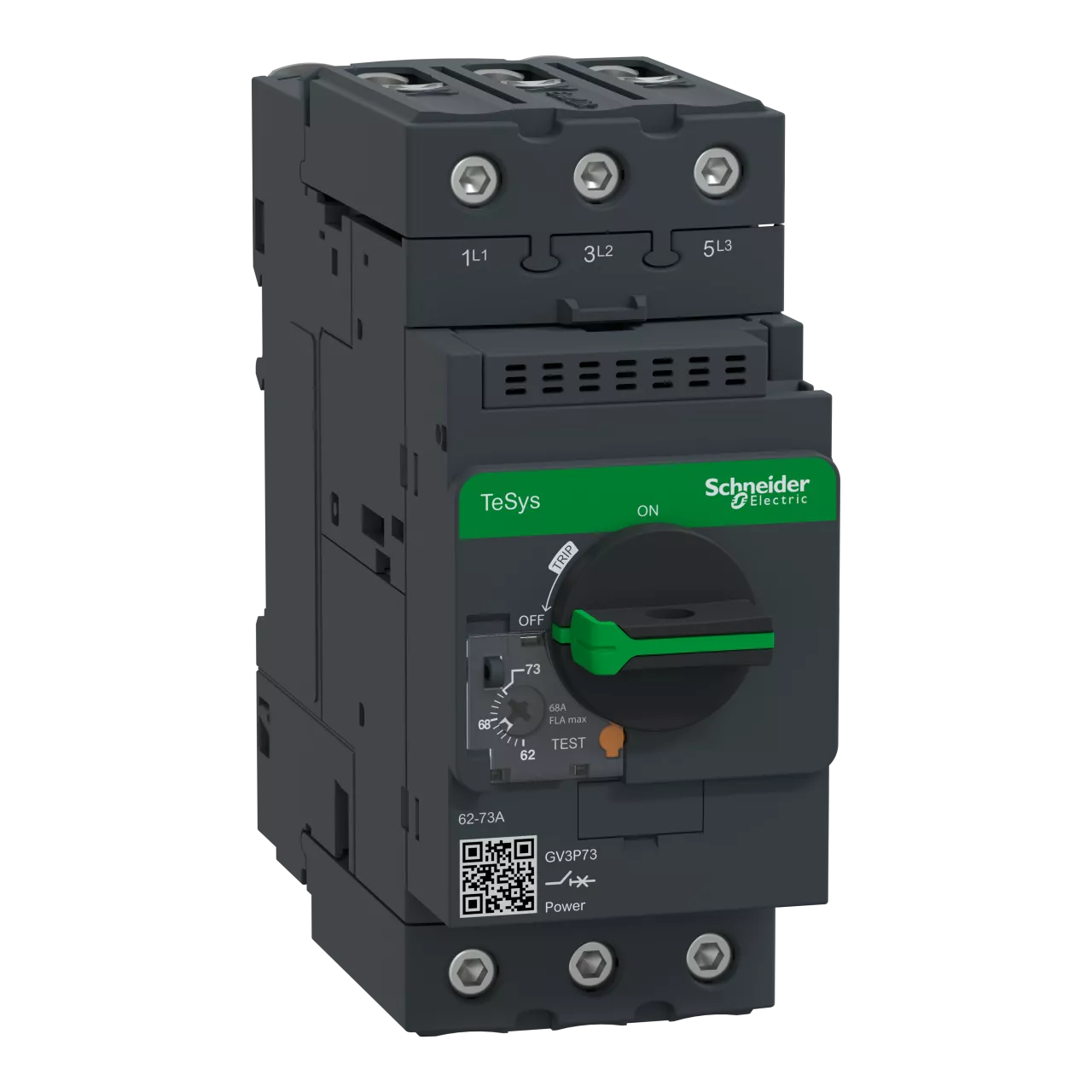

Wyłącznik silnikowy magnetotermiczny TeSys GV3P napęd obrotowy 62-73A zaciski everlink
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | GV3P73 |
GTIN(EAN) | 3606481304513 |
Price unit | piece |
Catalog price | 1 646,51 zł (1 338,63 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Wyłącznik silnikowy TeSys GV, 3-polowy (3P), 73 A/690 V, do zastosowań w silnikach 3-fazowych 37kW przy 400V. Zapewnia ochronę termiczno-magnetyczną z zakresem 62-73A, wyzwalanie magnetyczne przy 15xIn, wysoka zdolność wyłączania Icu 50kA przy 400V. Połączenie za pomocą zacisków śrubowych BTR Everlink. Sterowanie start-stop za pomocą pokrętła gwarantowane przez 20 000 cykli AC-3. Certyfikat zgodności z wieloma normami (IEC, UL, CSA, CCC, EAC, Marine, ATEX), zgodność z Green Premium (RoHS/REACh).
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 118 |
Gross weight: | 1,007 kg |
ETIM class: | Motor protection circuit-breaker |
Type of electrical connection of main circuit: | Screw connection |
Adjustment range undelayed short-circuit release: | 1120 - 1120 A |
Device construction: | Complete device in housing |
With integrated under voltage release: | no |
Number of poles: | 3 |
Degree of protection (IP): | IP20 |
Height: | 132 mm |
Rated operating voltage: | 230 - 690 V |
Depth: | 136 mm |
Width: | 55 mm |
Switch off technique: | Thermomagnetic |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 50 kA |
Rated operation power at AC-3, 400 V: | 37 kW |
Phase failure sensitive: | yes |
With integrated auxiliary switch: | no |
Type of control element: | Turn button |
Rated permanent current Iu: | 73 A |
Overload release current setting: | 62 - 73 A |
With thermal overload protection: | yes |
Rated operation power at AC-3, 230 V: | 18.5 kW |
