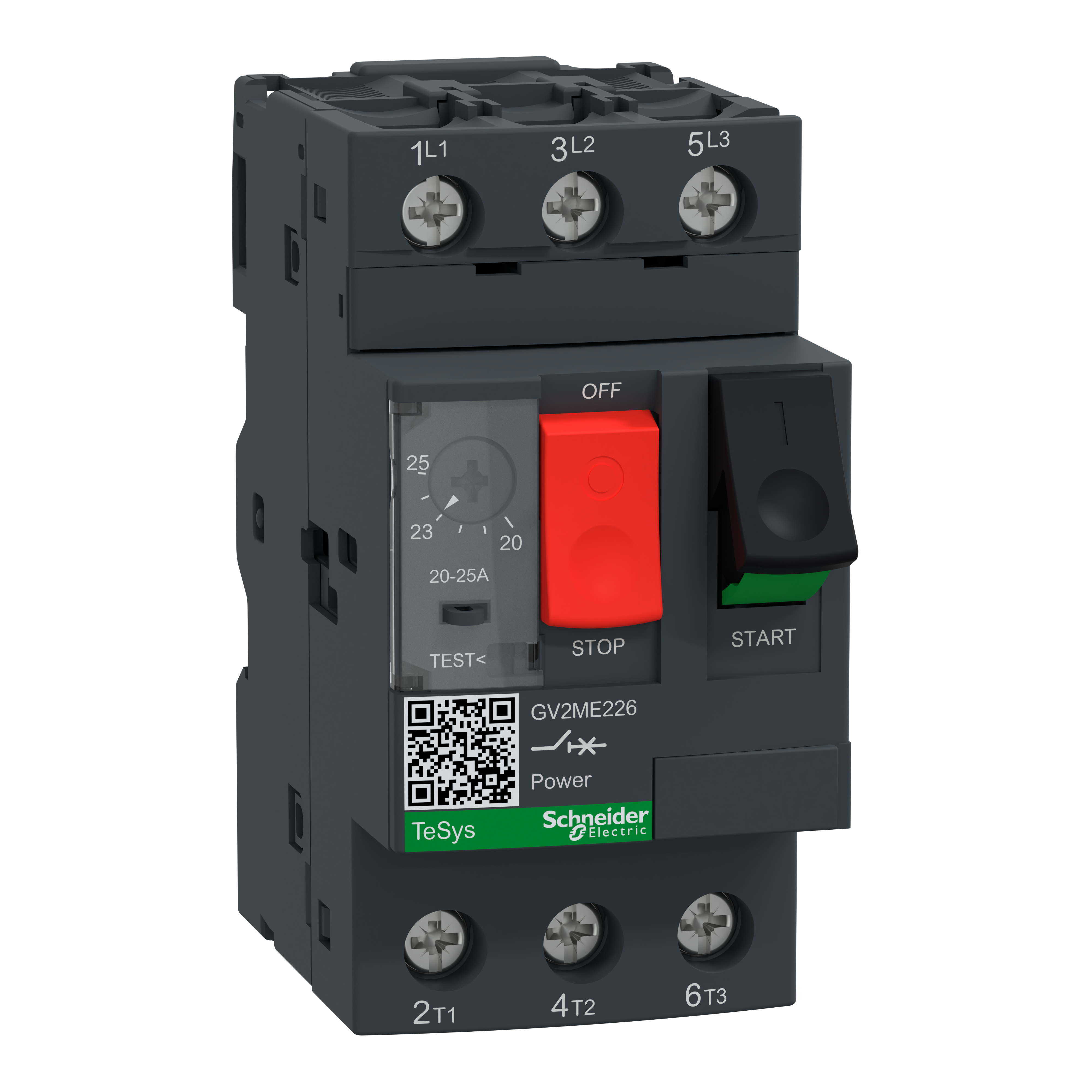

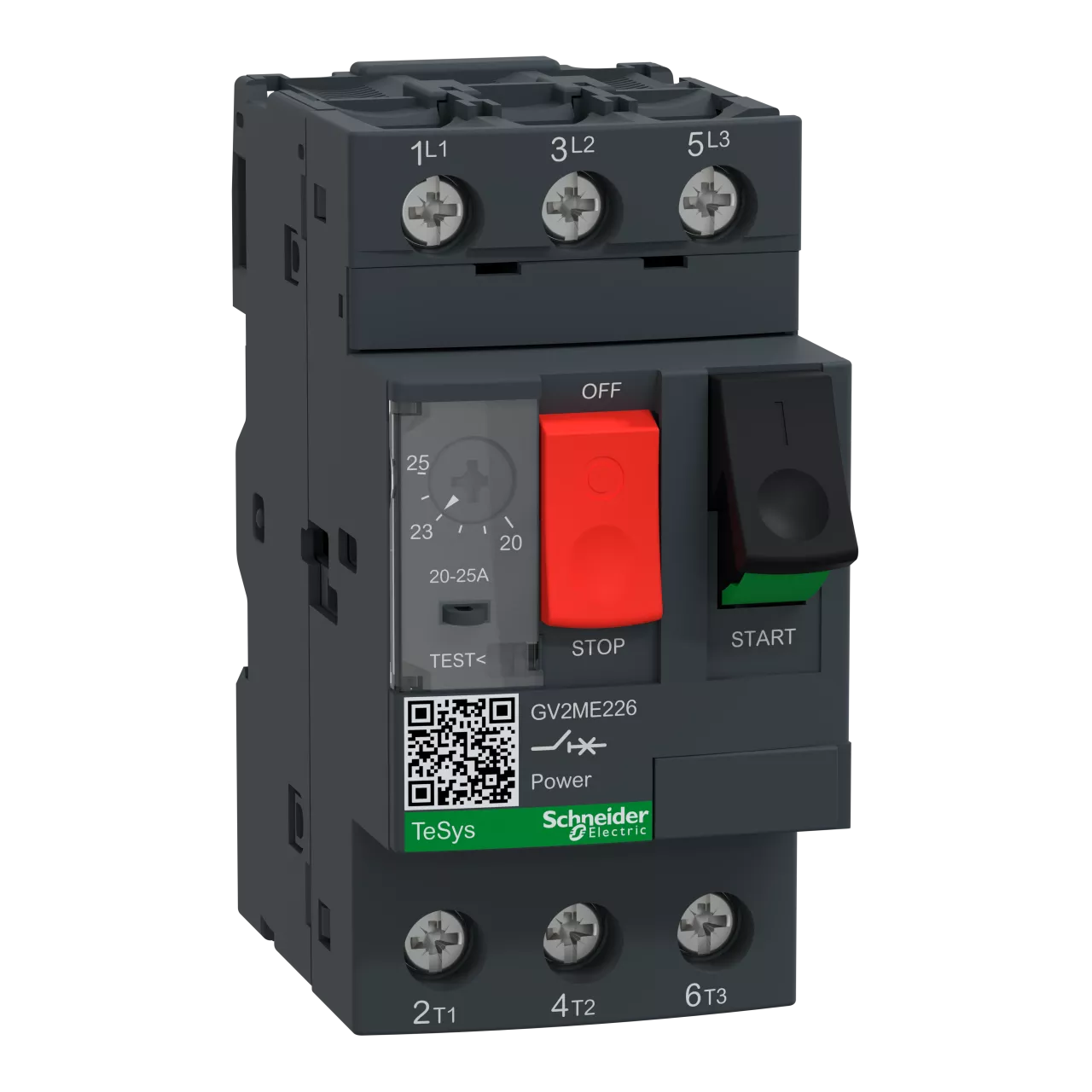

Wyłącznik silnikowy GV2ME napęd przyciskowy 20-25A zaciski śrubowe
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | GV2ME226 |
| GTIN(EAN) | 3389110611496 |
| Price unit | piece |
| Catalog price | 705,34 zł (573,45 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 235 g |
| ETIM class: | Motor protection circuit-breaker |
| Type of electrical connection of main circuit: | Screw connection |
| Adjustment range undelayed short-circuit release: | 327 - 327 A |
| Device construction: | Complete device in housing |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Degree of protection (IP): | IP20 |
| Height: | 89 mm |
| Rated operating voltage: | 690 - 690 V |
| Depth: | 78.5 mm |
| Width: | 45 mm |
| Switch off technique: | Thermomagnetic |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 15 kA |
| Rated operation power at AC-3, 400 V: | 11 kW |
| Phase failure sensitive: | yes |
| With integrated auxiliary switch: | no |
| Type of control element: | Push button |
| Rated permanent current Iu: | 25 A |
| Overload release current setting: | 20 - 25 A |
| With thermal overload protection: | yes |
| Rated operation power at AC-3, 230 V: | 5.5 kW |
