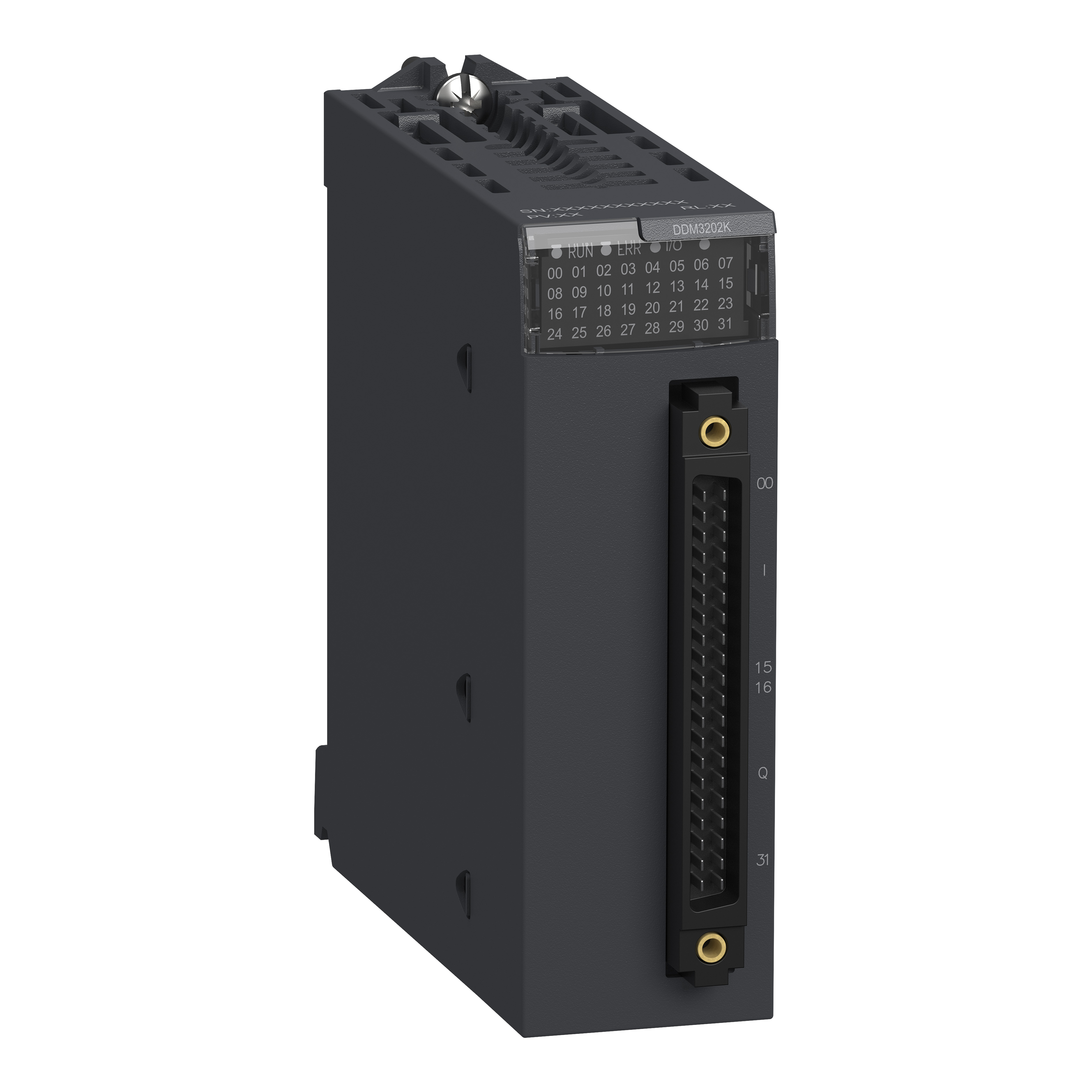

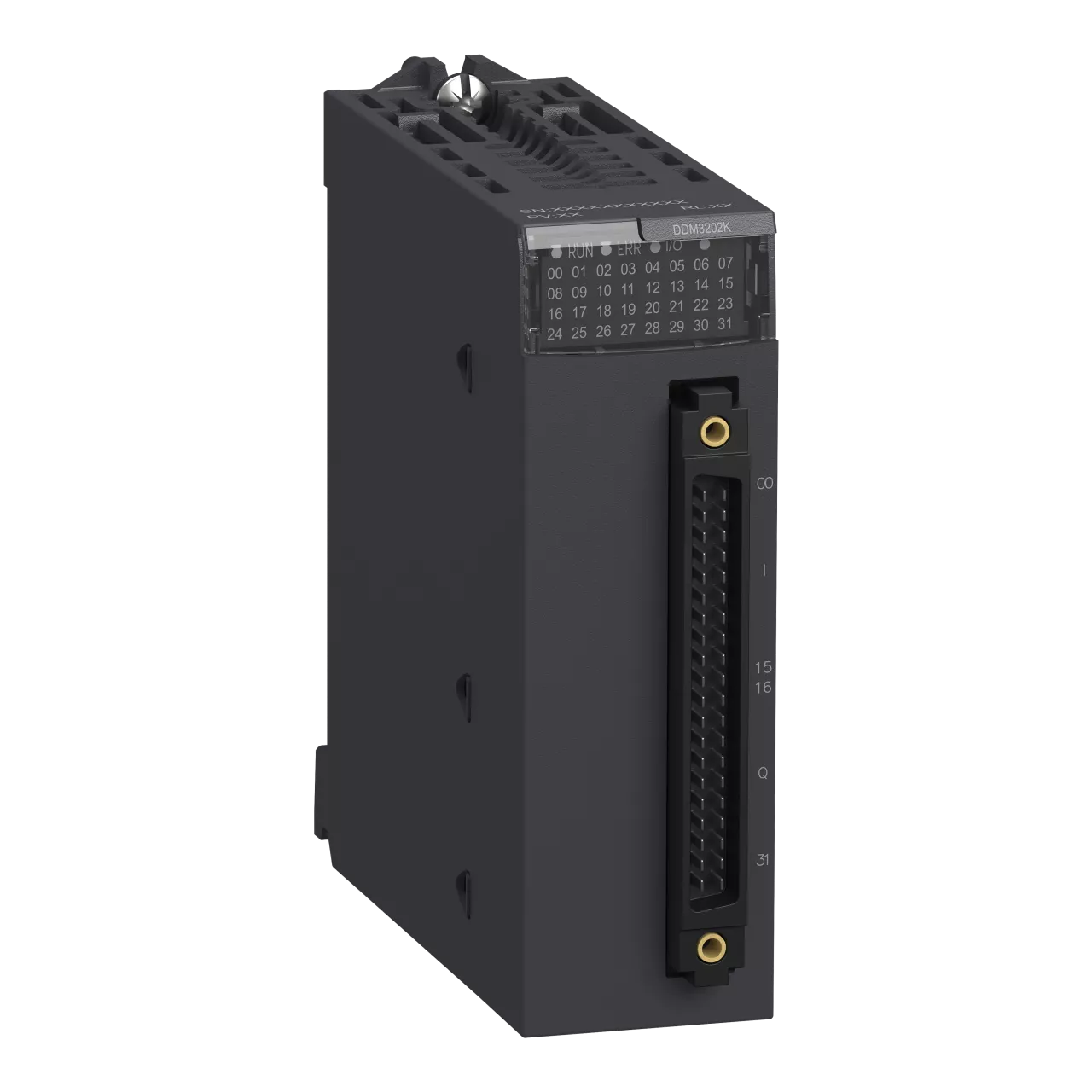

Modicon X80, moduł wyjść/wyjść cyfrowych, 16 wejść, 24 V DC, 16 wyjść, kanały półprzewodnikowe
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | BMXDDM3202K |
| GTIN(EAN) | 3595863910636 |
| Price unit | piece |
| Catalog price | 3 148,80 zł (2 560,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 134 g |
| ETIM class: | PLC digital I/O-module |
| Input current at signal 1: | 2.5 mA |
| Supply voltage DC: | 24 - 24 V |
| Number of digital inputs: | 16 |
| Number of digital outputs: | 16 |
| Suitable for safety functions: | no |
| Appendant operation agent (Ex ib): | no |
| Type of output voltage: | DC |
| Appendant operation agent (Ex ia): | no |
| Depth: | 150 mm |
| Explosion safety category for dust: | None |
| Width: | 33 mm |
| Voltage type (supply voltage): | DC |
| Short-circuit protection, outputs available: | no |
| Output current: | 0.1 A |
| Type of electric connection: | Plug-in connection |
| Type of digital output: | Transistor |
| Type of voltage (input voltage): | DC |
| Redundancy: | no |
| Permitted voltage at input: | 19 - 30 V |
| Explosion safety category for gas: | None |
| Digital outputs configurable: | yes |
| Permitted voltage at output: | 19 - 30 V |
| Performance level according to EN ISO 13849-1: | None |
| Time delay at signal change: | 4 - 7 ms |
| Height: | 100 mm |
| Digital inputs configurable: | yes |
| SIL according to IEC 61508: | None |
