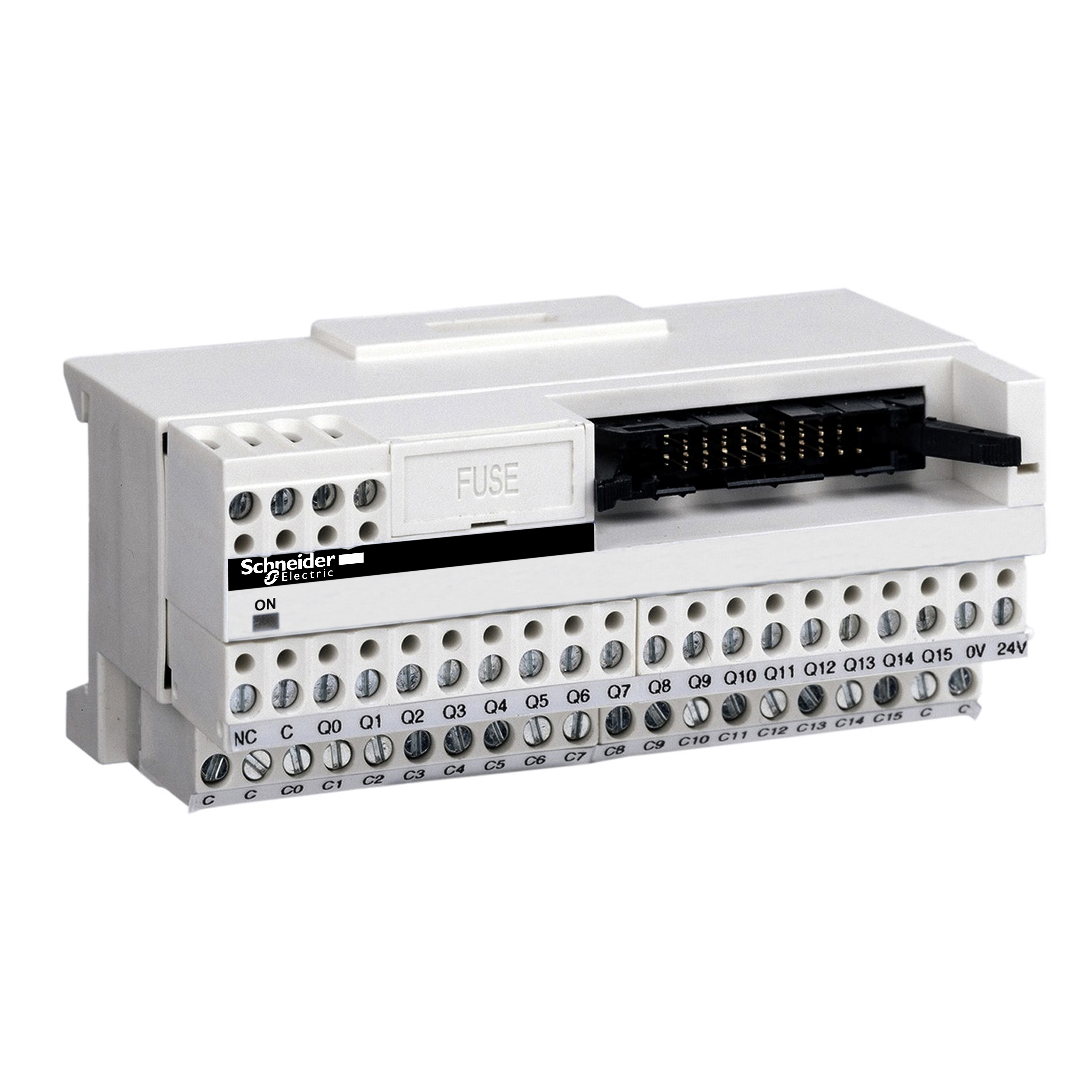

Modicon ABE7, miniaturowa podbaza, dyskretne pasywne we/wy, 16 wejść/wyjść, Led
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | ABE7H16C11 |
| GTIN(EAN) | 3389110251180 |
| Price unit | piece |
| Catalog price | 544,89 zł (443,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 150 g |
| ETIM class: | Passive sensor-actuator interface (with cable) |
| With LED indication: | yes |
| Number of channels per connector slot: | 16 |
| Housing material: | Plastic, metallized |
| Degree of protection (IP): | IP2X |
| Material of contact surface: | Other |
| Depth: | 64 mm |
| Explosion safety category for dust: | None |
| Width: | 106 mm |
| Number of poles sensor/actuator slots: | 16 |
| Housing colour: | Grey |
| Operating temperature: | -5 - 60 °C |
| Connection for NPN-sensors: | no |
| Number of sensor-/actuator-slots: | 1 |
| Pollution degree: | 2 |
| Material contact body: | Other copper alloys |
| Diameter contact female: | 2.5 mm |
| Explosion safety category for gas: | None |
| With potential separation: | no |
| Thread sleeves sensor/actuator slots: | Other |
| Connectable conductor cross section: | 0.09 - 2.5 mm² |
| Height: | 63 mm |
| Rated voltage: | 24 V |
| Max. current carrying capacity per I/O signal: | 0.5 A |
| Type of branches for sensor-/actuator cables: | Other |
| Cable outer diameter for cable gland: | 0.09 - 2.5 mm |
| Cable length configurable: | yes |
| Material insulation body: | Other |
| Operating voltage: | 24 - 24 V |
| Max. current carrying capacity per socket: | 1.8 A |
| Max. total current: | 1.8 A |
| Fix cable version suitable for cable guide chain: | no |
