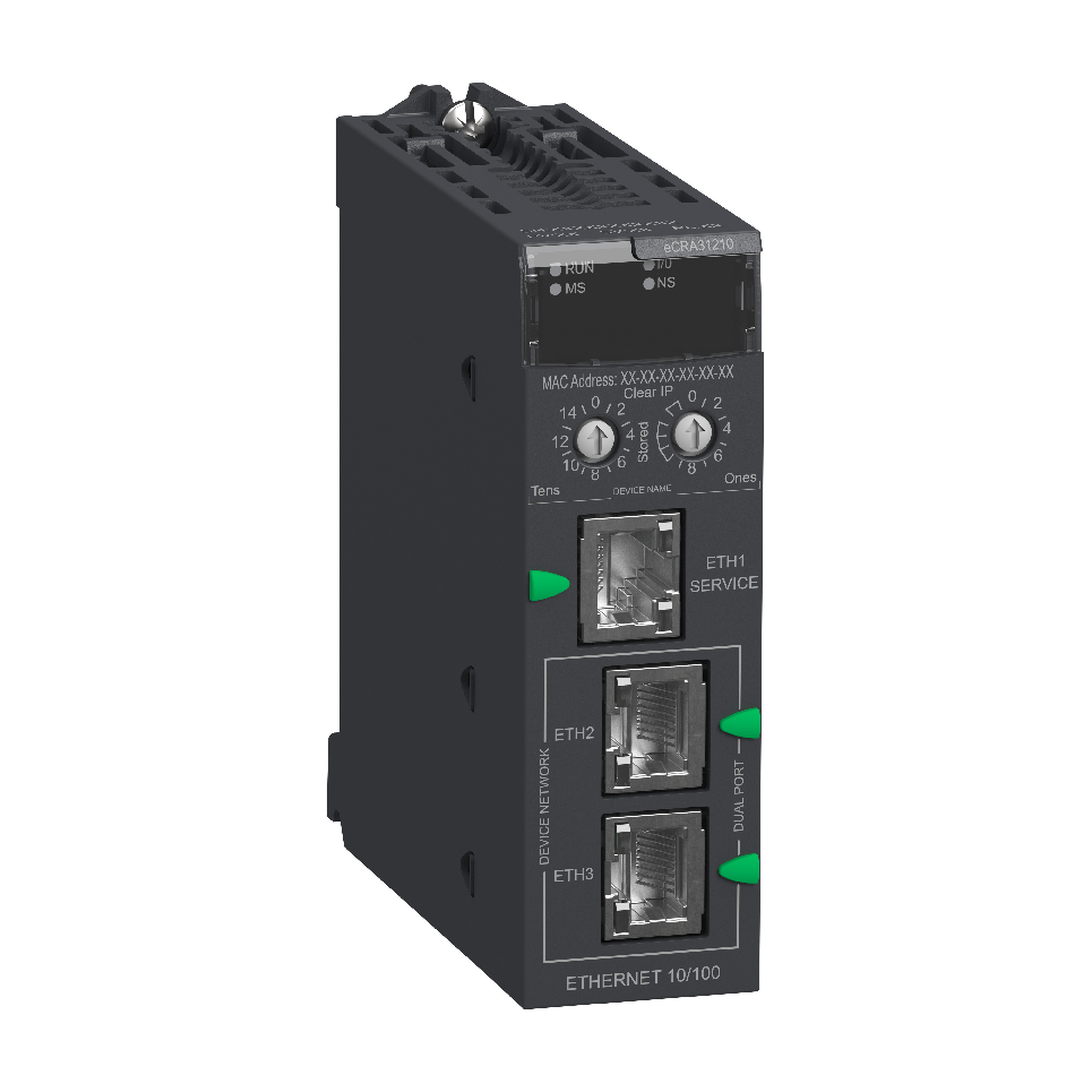

Modicon X80, Adapter DIO Drop, Ethernet, płyta montażowa
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | BMECRA31210 |
| GTIN(EAN) | 3595864174013 |
| Price unit | piece |
| Catalog price | 9 397,20 zł (7 640,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 260 g |
| ETIM class: | PLC communication module |
| Supporting protocol for SERCOS: | no |
| Number of interfaces PROFINET: | 0 |
| Number of HW-interfaces parallel: | 0 |
| Number of HW-interfaces other: | 0 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces USB: | 0 |
| SIL according to IEC 61508: | None |
| With optical interface: | no |
| Number of HW-interfaces wireless: | 0 |
| Transmission rate: | 1000 kb/s |
| Performance level according to EN ISO 13849-1: | None |
| With potential separation: | no |
| Radio standard GPRS: | no |
| Height: | 100 mm |
| Supporting protocol for INTERBUS-Safety: | no |
| Width: | 32 mm |
| Redundancy: | no |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Radio standard GSM: | no |
| Explosion safety category for dust: | None |
| Radio standard UMTS: | no |
| Depth: | 87.5 mm |
| Explosion safety category for gas: | None |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for EtherNet/IP: | yes |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for PROFIsafe: | no |
| Radio standard Bluetooth: | no |
| Supporting protocol for ASI: | no |
| Appendant operation agent (Ex ia): | no |
| Supporting protocol for PROFIBUS: | no |
| Radio standard WLAN 802.11: | no |
| Type of data transmission: | Serial |
| Supporting protocol for TCP/IP: | yes |
| Supporting protocol for KNX: | no |
| Supporting protocol for CAN: | no |
| Appendant operation agent (Ex ib): | no |
| IO link master: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for DeviceNet: | no |
| Suitable for safety functions: | no |
| Supporting protocol for Modbus: | yes |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for LON: | no |
| Supporting protocol for other bus systems: | no |
| Supporting protocol for SUCONET: | no |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces RS-485: | 0 |
| Number of HW-interfaces industrial Ethernet: | 3 |
| Number of HW-interfaces RS-232: | 0 |
