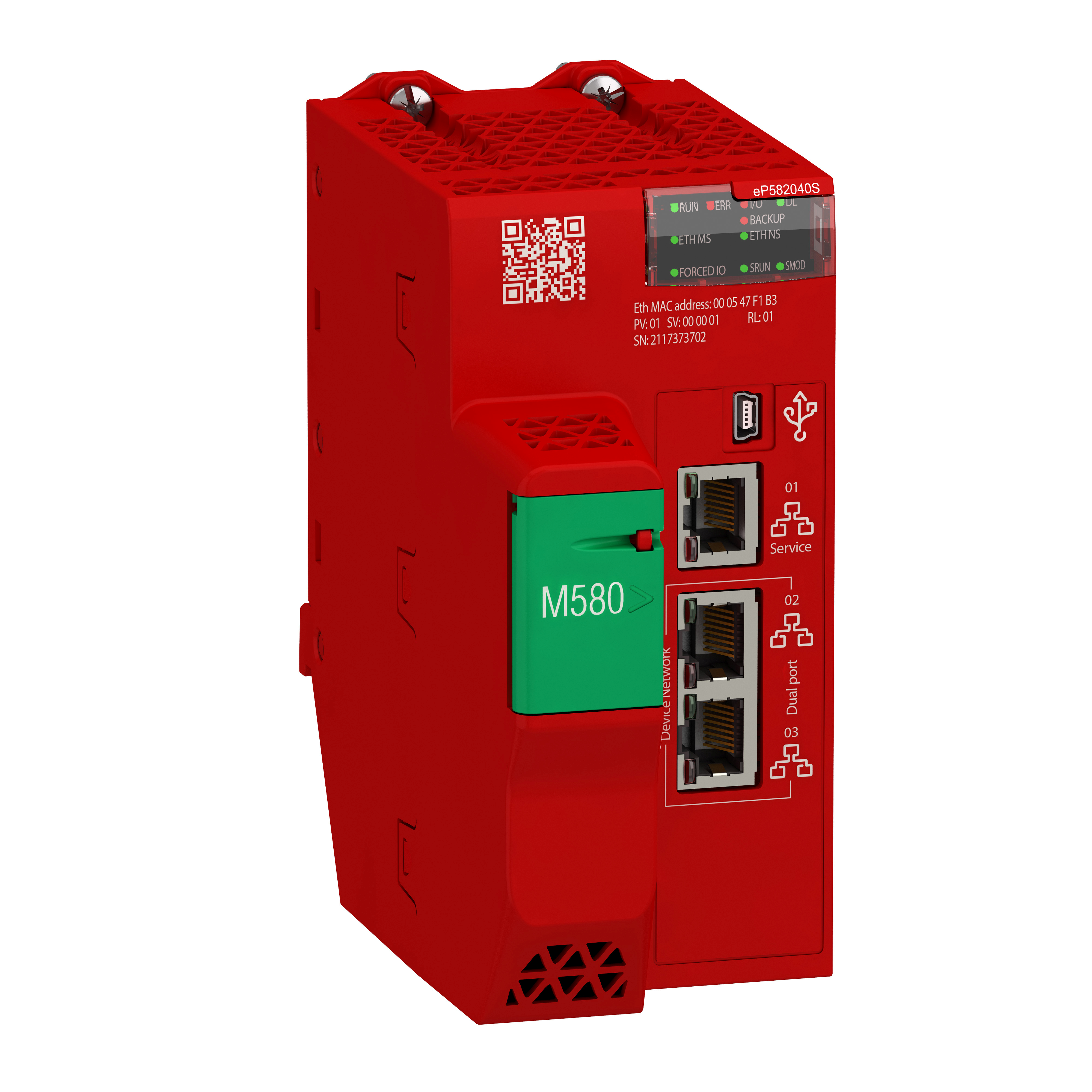

Modicon M580, moduł procesora Safety SIL3, poziom 2
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | BMEP582040S |
| GTIN(EAN) | 3606489705480 |
| Price unit | piece |
| Catalog price | 28 044,00 zł (22 800,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 876 g |
| ETIM class: | PLC CPU-module |
| Suitable for safety functions: | yes |
| Supporting protocol for LON: | no |
| Radio standard WLAN 802.11: | no |
| Radio standard Bluetooth: | no |
| IO link master: | no |
| Explosion safety category for dust: | Other |
| Width: | 180 mm |
| Model: | Modular |
| Radio standard GPRS: | no |
| Radio standard GSM: | no |
| Explosion safety category for gas: | Other |
| Radio standard UMTS: | no |
| Performance level according to EN ISO 13849-1: | Level e |
| Wall mounting/direct mounting: | yes |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | no |
| Memory size: | 10 kB |
| With display: | no |
| Rack-assembly possible: | yes |
| Supply voltage DC: | 24 - 24 V |
| Supporting protocol for KNX: | no |
| Supporting protocol for Data-Highway: | no |
| Front built-in possible: | no |
| Supporting protocol for Modbus: | yes |
| Supporting protocol for DeviceNet: | no |
| Rail mounting possible: | yes |
| Supporting protocol for TCP/IP: | yes |
| Supporting protocol for PROFIBUS: | no |
| Supporting protocol for ASI: | yes |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for CAN: | no |
| Appendant operation agent (Ex ia): | no |
| Supporting protocol for IEC 61850 Ethernet: | yes |
| Depth: | 250 mm |
| Supporting protocol for AS-Interface Safety at Work: | yes |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | yes |
| Voltage type (supply voltage): | DC |
| Supporting protocol for SafetyBUS p: | no |
| Type of memory: | RAM |
| Supporting protocol for PROFIsafe: | no |
| Long-Term Evolution (LTE): | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for IEC 60870: | no |
| Supporting protocol for DNP3: | no |
| Redundancy: | yes |
| Supporting protocol for INTERBUS-Safety: | no |
| Height: | 89 mm |
| Number of HW-interfaces USB: | 1 |
| System accessory: | yes |
| Supporting protocol for SERCOS: | no |
| Additional program memory possible: | yes |
| SIL according to IEC 61508: | 3 |
| Number of HW-interfaces industrial Ethernet: | 3 |
