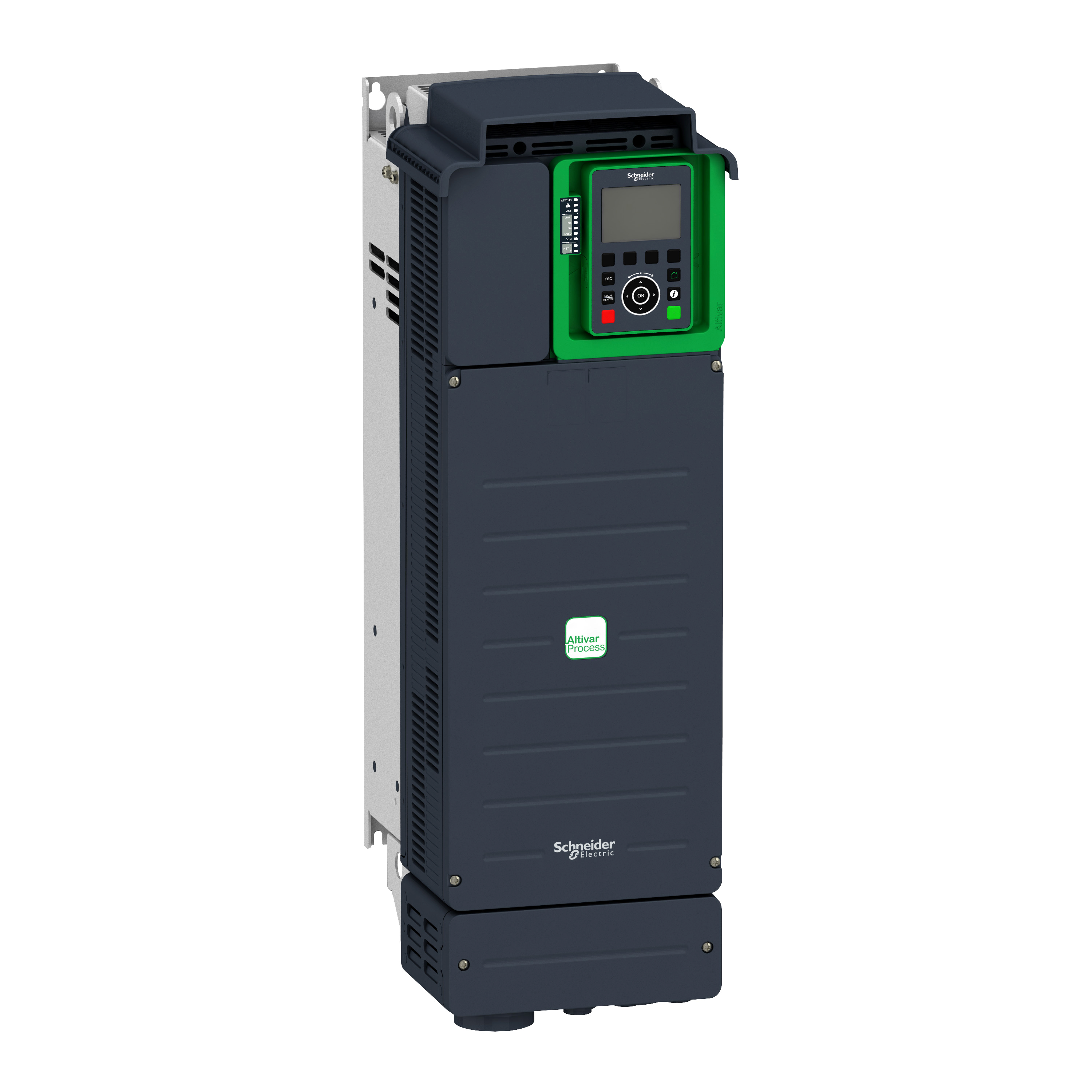

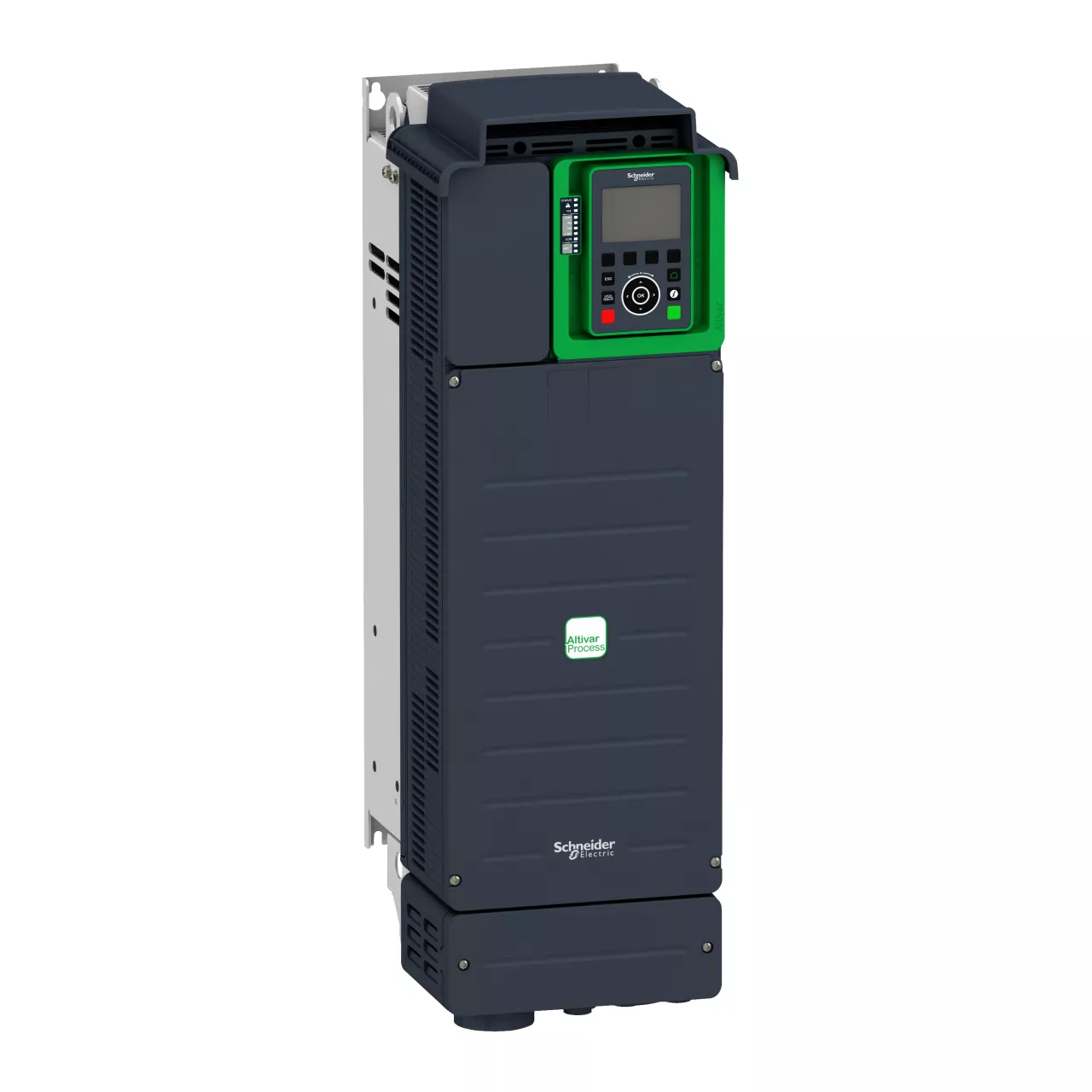

Przemiennik częstotliwości, ATV930, 3 fazowe 380/480VAC 50/60Hz 45kW 88A IP21
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | ATV930D45N4 |
| GTIN(EAN) | 3606480883385 |
| Price unit | piece |
| Catalog price | 29 775,82 zł (24 207,98 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przemiennik częstotliwości Schneider Electric Altivar 930 z zintegrowaym filtrem EMC oraz czoperem hamującym, o stopniu ochrony IP21 i wejściowym napięciu znamionowym od 380VAC do 480VAC może zasilać silniki synchroniczne i asynchroniczne o obciążalności do 88,0A. Ten A ltivar 930 może być stosowany dla silników o mocy do 45,0kW/60,0KM do zastosowań wymagających niewielkiego przeciążenia (do 120%) oraz do 37,0kW/50,0KM w zastosowaniach wymagających znacznego przeciążenia (do 150%). Ten Altivar 930 został zaprojektowany specjalnie dla s ystemów z charakterystyką stałomomentową.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 27,5 kg |
| ETIM class: | Frequency converter =< 1 kV |
| Supporting protocol for BACnet: | no |
| Number of digital inputs: | 8 |
| Number of digital outputs: | 1 |
| Number of analogue inputs: | 3 |
| Supporting protocol for LON: | no |
| Number of analogue outputs: | 2 |
| Application in domestic- and commercial area permitted: | yes |
| Application in industrial area permitted: | yes |
| Integrated breaking resistance: | no |
| Relative symmetric net frequency tolerance: | 5 % |
| Relative symmetric net voltage tolerance: | 10 % |
| Width: | 226 mm |
| Number of phases output: | 3 |
| With PC connection: | no |
| Type of converter: | U converter |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | yes |
| Max. output voltage: | 480 V |
| Nominal output current I2N: | 88 A |
| Supporting protocol for KNX: | no |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for Modbus: | no |
| Supporting protocol for DeviceNet: | yes |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for PROFIBUS: | yes |
| Degree of protection (IP): | IP21 |
| Supporting protocol for ASI: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for CAN: | yes |
| Depth: | 274 mm |
| Supporting protocol for AS-Interface Safety at Work: | no |
| With control element: | yes |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | yes |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for PROFINET IO: | yes |
| Max. output at quadratic load at rated output voltage: | 45 kW |
| Supporting protocol for DeviceNet Safety: | no |
| Max. output at linear load at rated output voltage: | 45 kW |
| Number of phases input: | 3 |
| Max. output frequency: | 500 Hz |
| Mains frequency: | 50/60 Hz |
| Supporting protocol for INTERBUS-Safety: | no |
| Height: | 673 mm |
| Mains voltage: | 380 - 480 V |
| 4-quadrant operation possible: | yes |
| Number of HW-interfaces RS-485: | 3 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces other: | 0 |
| Number of HW-interfaces parallel: | 0 |
| Supporting protocol for SERCOS: | no |
| Number of interfaces PROFINET: | 0 |
| With optical interface: | yes |
| Number of HW-interfaces RS-232: | 0 |
| Number of HW-interfaces industrial Ethernet: | 0 |
