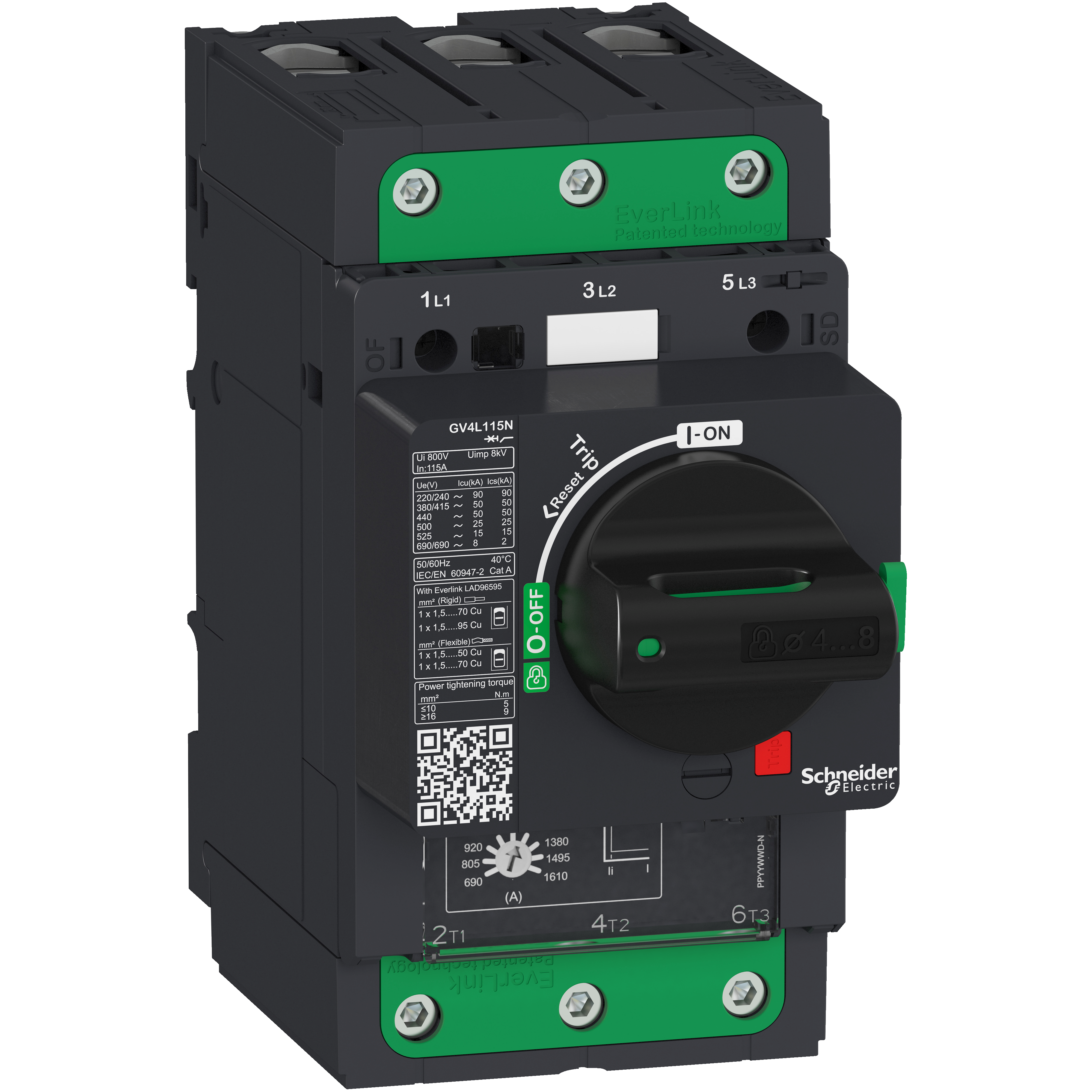

Wyłącznik silnikowy, TeSys GV4, 3P, 115 A, Icu 50 kA, magnetyczny, terminale EverLink
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | GV4L115N |
| GTIN(EAN) | 3606481309747 |
| Price unit | piece |
| Catalog price | 4 482,69 zł (3 644,46 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 1,839 kg |
| ETIM class: | Motor protection circuit-breaker |
| Type of electrical connection of main circuit: | Screw connection |
| Adjustment range undelayed short-circuit release: | 690 - 1610 A |
| Device construction: | Complete device in housing |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Degree of protection (IP): | IP40 |
| Height: | 155 mm |
| Rated operating voltage: | 690 - 690 V |
| Depth: | 165 mm |
| Width: | 81 mm |
| Switch off technique: | Magnetic |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 50 kA |
| Rated operation power at AC-3, 400 V: | 55 kW |
| Phase failure sensitive: | no |
| With integrated auxiliary switch: | no |
| Type of control element: | Turn button |
| Rated permanent current Iu: | 115 A |
| With thermal overload protection: | no |
| Rated operation power at AC-3, 230 V: | 30 kW |
