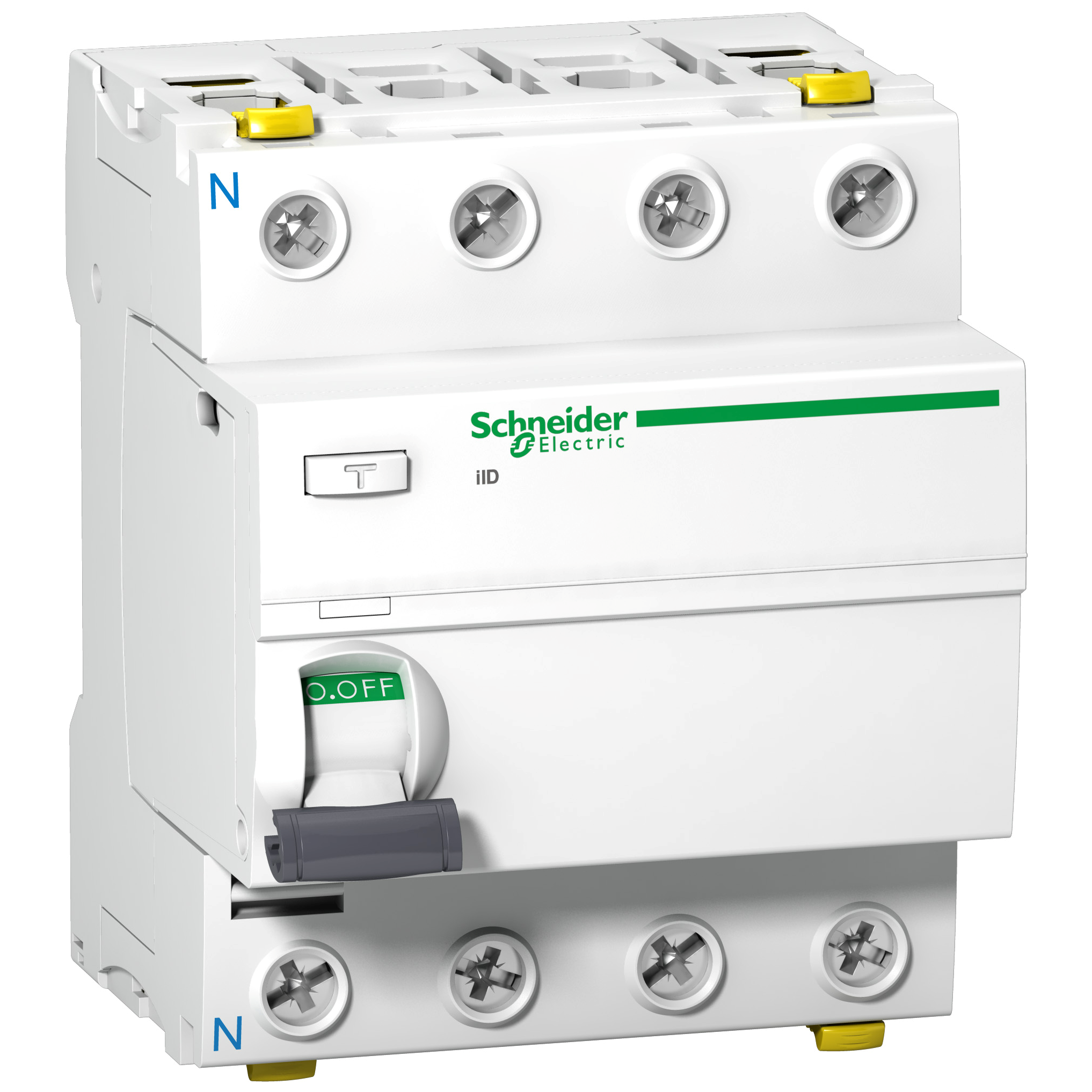

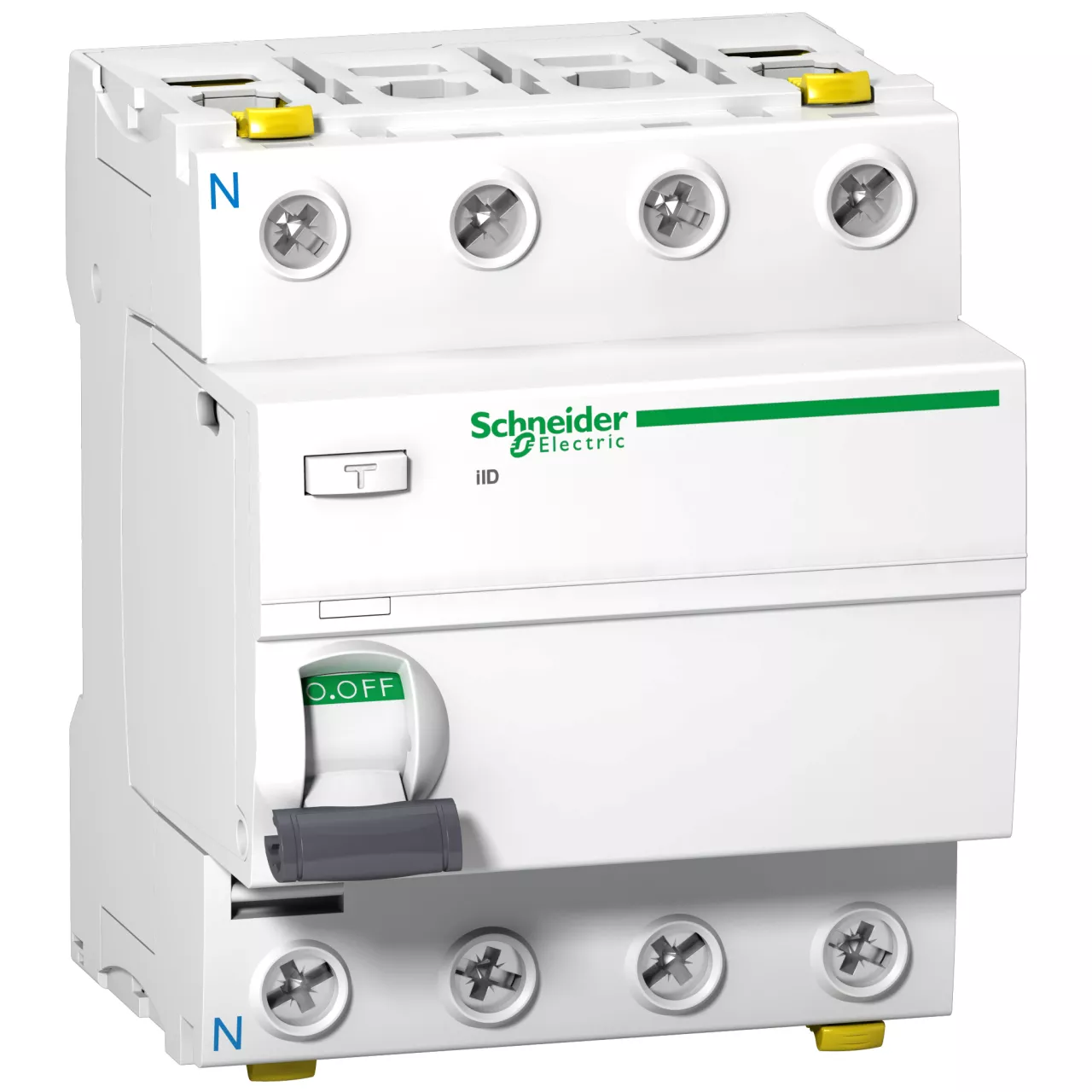

Wyłącznik różnicowoprądowy Acti9 iID-25-4-30-AC 25A 4-biegunowy 30mA typ AC
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | A9Z11425 |
GTIN(EAN) | 3606480442360 |
Price unit | piece |
Catalog price | 425,58 zł (346,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
This Acti 9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 4P, rated current is 25A, and operating voltage is 380VAC to 415VAC. Making and breaking capacity is 1500A (Im/IΔm). Electrical endurance goes up to 15000 cycles, and mechanical endurance goes up to 20000 cycles. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. Device location in system is outgoer, and the earth leakage protection class is type AC. This product is compliant with EN/IEC 61008-1.
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 16 |
Gross weight: | 376 g |
ETIM class: | Residual current circuit breaker (RCCB) |
Short-time delayed tripping: | no |
Built-in depth: | 44 mm |
Selective protection: | no |
Connectable conductor cross section solid-core: | 1 - 35 mm² |
Explosion-proof: | no |
Leakage current type: | AC |
Additional equipment possible: | yes |
Voltage type: | AC |
Surge current capacity: | 0.25 kA |
Degree of protection (IP): | IP20 |
Number of poles: | 4 |
Rated impulse withstand voltage Uimp: | 6 kV |
Width in number of modular spacings: | 4 |
Rated fault current: | 0.03 A |
Frequency: | 50/60 Hz |
Mounting method: | DIN rail |
Ambient temperature during operating: | -5 - 60 °C |
Rated current: | 25 A |
Rated voltage: | 400 V |
Rated insulation voltage Ui: | 500 V |
Connectable conductor cross section multi-wired: | 1 - 25 mm² |
Pollution degree: | 3 |
With interlocking device: | yes |
