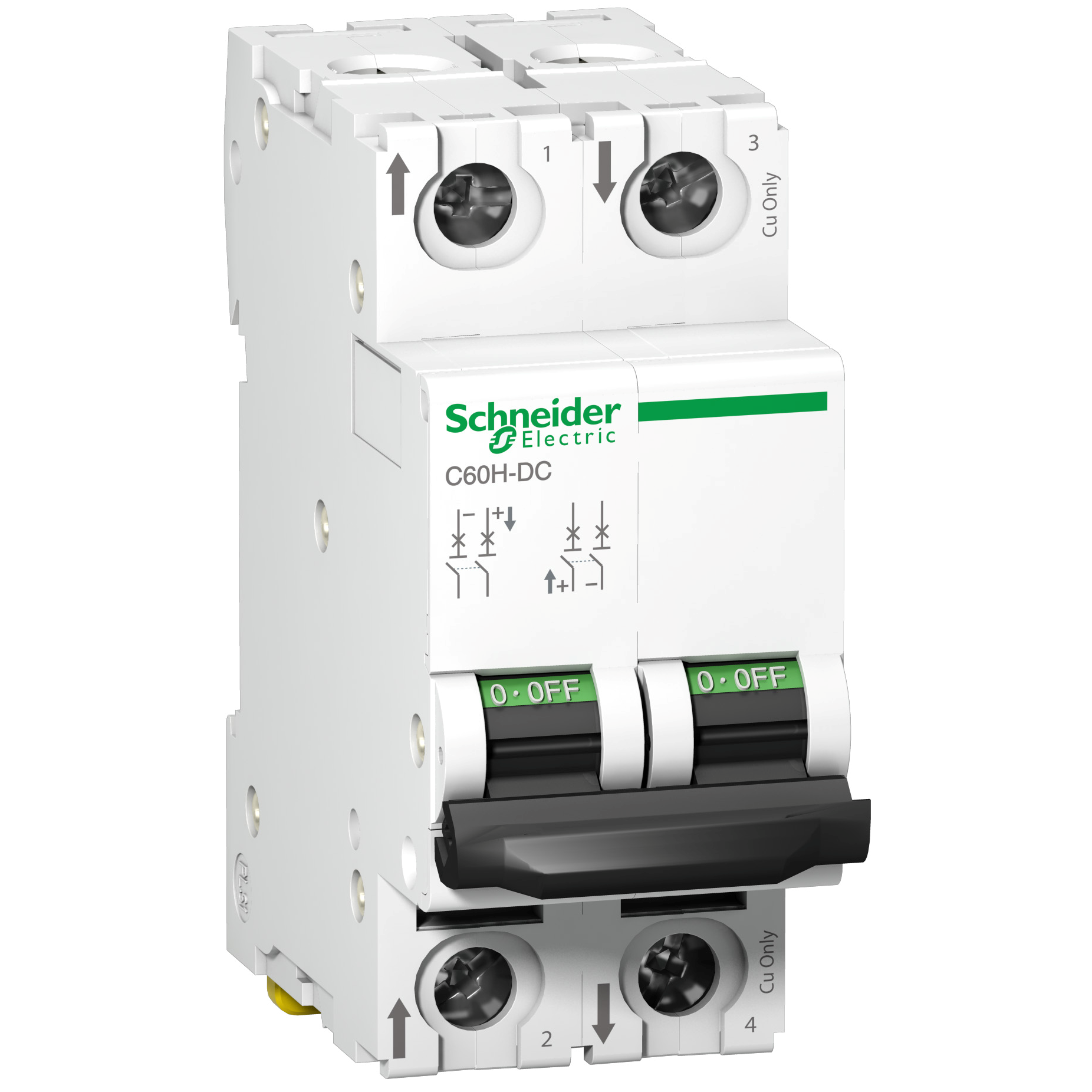

Wyłącznik nadprądowy Acti9 C60H-DC-C2-2 C 2A 2-biegunowy
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | A9N61522 |
GTIN(EAN) | 3606480424229 |
Price unit | piece |
Catalog price | 551,04 zł (448,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wyłącznik nadprądowy serii C60H-DC, o numerze A9N61522, C60H-DC-C2-2, 2-biegunowy (dwubiegunowy), 2A, charakterystyka C, zapewnia ochronę przed zwarci ami i przeciążeniami. Możliwość bezpośredniego podłączenia dwóch przewodów o różnych przekrojach. Optyczny wskaźnik Visi-Trip wyzwolenia elektrycznego, biało-czerwon y. Możliwość demontażu pojedynczego aparatu bez potrzeby zdejmowania szyny łączeniowej. Zdjemowanie z szyny DIN bez użycia narzędzi.
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 23 |
Gross weight: | 230 g |
ETIM class: | Miniature circuit breaker (MCB) |
Number of poles (total): | 2 |
Built-in depth: | 44 mm |
Connectable conductor cross section solid-core: | 1 - 25 mm² |
Explosion-proof: | no |
Additional equipment possible: | yes |
Voltage type: | DC |
Concurrently switching neutral conductor: | no |
Degree of protection (IP): | IP20 |
Rated impulse withstand voltage Uimp: | 6 kV |
Release characteristic: | C |
Width in number of modular spacings: | 2 |
Number of protected poles: | 2 |
Flush-mounted installation: | no |
Ambient temperature during operating: | -25 - 70 °C |
Over voltage category: | 4 |
Rated current: | 2 A |
Rated voltage: | 440 V |
Rated insulation voltage Ui: | 500 V |
Connectable conductor cross section multi-wired: | 1 - 16 mm² |
Pollution degree: | 3 |
