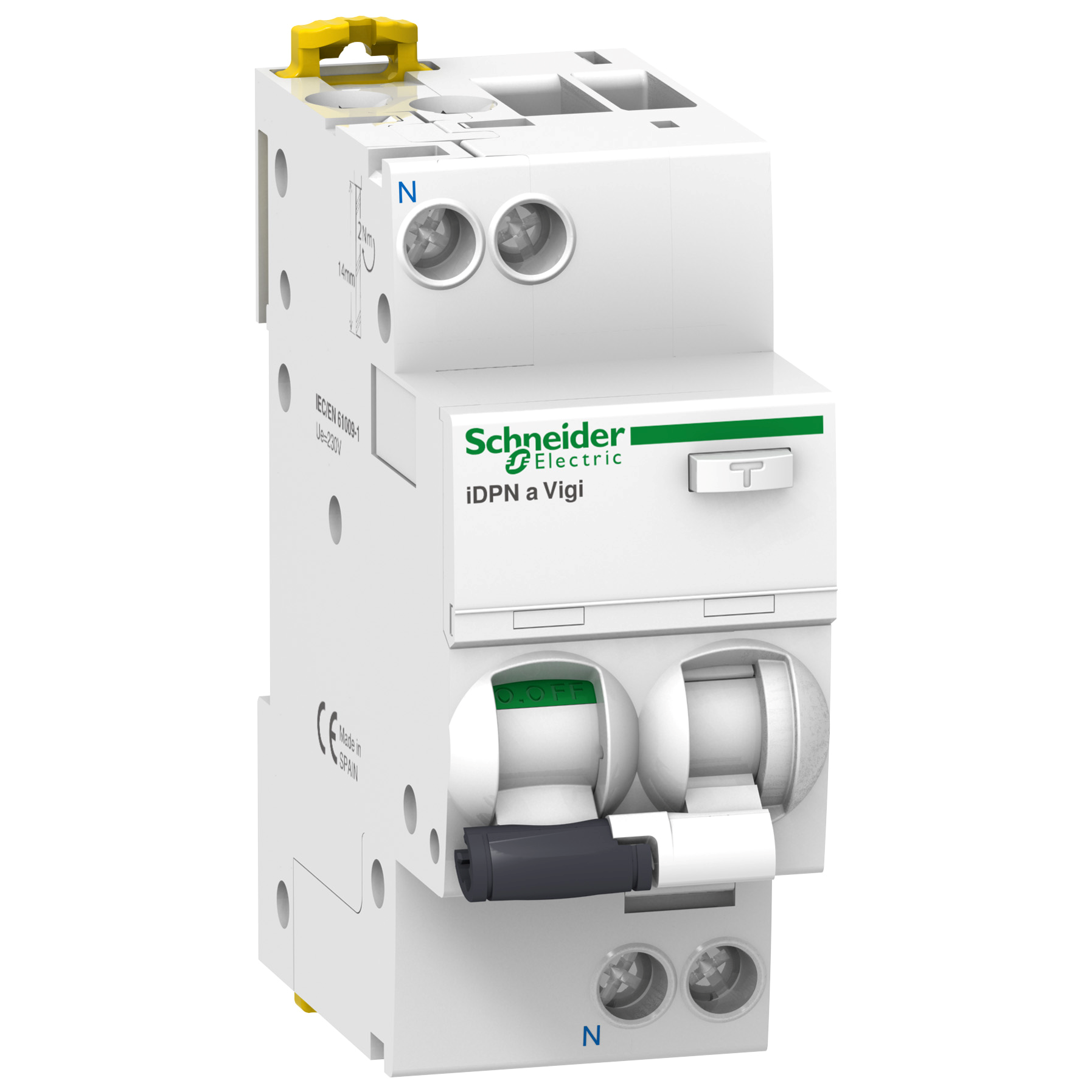

Wyłącznik kombinowany Acti9 iDPNaVigi-B10-30-A
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | A9D54610 |
GTIN(EAN) | 3606480471865 |
Price unit | piece |
Catalog price | 776,13 zł (631,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wyłącznik kombinowany iDPNaVigi-B10-30-A B 10A 1N-biegunowy 30 mA typ A ,o numerze A9D54610. Dwuczłonowa dźwignia informuje, który z członów wyłączni ka wyzwolił. Optyczny wskaźnik Visi-Trip wyzwolenia elektrycznego, biało-czerwony oraz wskaźnik Visi-Safe -zielony wskaźnik potwierdzający otwarcie styków wyłącznika . Możliwość sprawdzania poprawności działania przyciskiem kontrolnym "T" jedynie raz do roku, przez pierwsze 7 lat użytkowania.
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 28 |
Gross weight: | 225 g |
ETIM class: | Earth leakage circuit breaker |
Number of poles (total): | 2 |
Built-in depth: | 44 mm |
Connectable conductor cross section solid-core: | 1 - 16 mm² |
Leakage current type: | A |
Voltage type: | AC |
Surge current capacity: | 0.25 kA |
Concurrently switching neutral conductor: | yes |
Degree of protection (IP): | IP20 |
Rated short-circuit breaking capacity Icn according to EN 61009-1: | 4.5 kA |
Rated impulse withstand voltage Uimp: | 4 kV |
Release characteristic: | B |
Rated short-circuit breaking capacity according to EN 61009: | 4.5 kA |
Width in number of modular spacings: | 4 |
Number of protected poles: | 1 |
Rated fault current: | 0.03 A |
Disconnection characteristic: | Other |
Frequency: | 50 Hz |
Flush-mounted installation: | no |
Ambient temperature during operating: | -25 - 60 °C |
Anti-nuisance tripping version: | no |
Over voltage category: | 3 |
Current limiting class: | 3 |
Rated current: | 10 A |
Rated voltage: | 230 V |
Rated insulation voltage Ui: | 400 V |
Connectable conductor cross section multi-wired: | 1 - 10 mm² |
Pollution degree: | 3 |
With interlocking device: | no |
