Wylącznik kombinowany Acti9 iDPNNVigi-C16-30-SI
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | A9D33616 |
| GTIN(EAN) | 3606480472152 |
| Price unit | piece |
| Catalog price | 627,30 zł (510,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

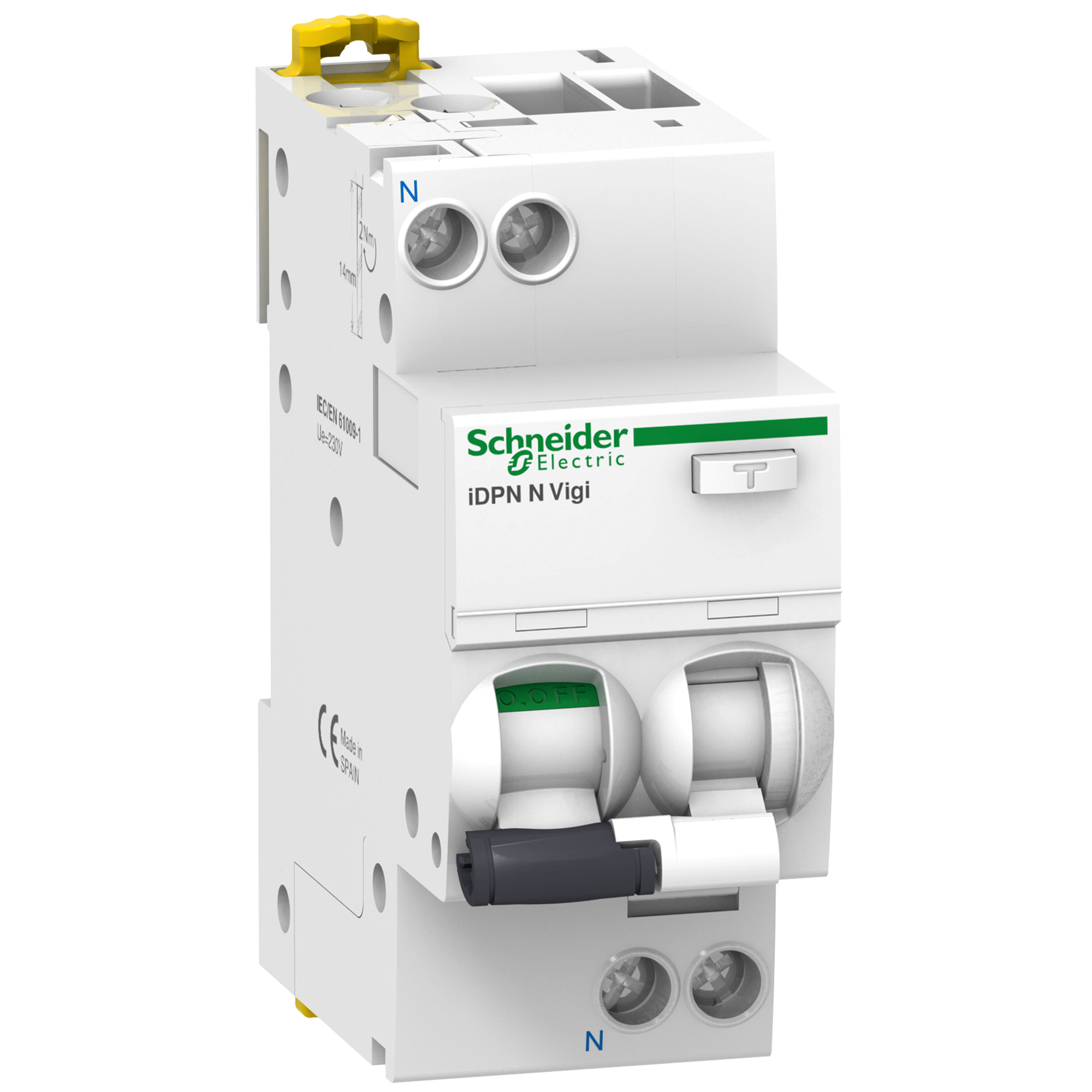

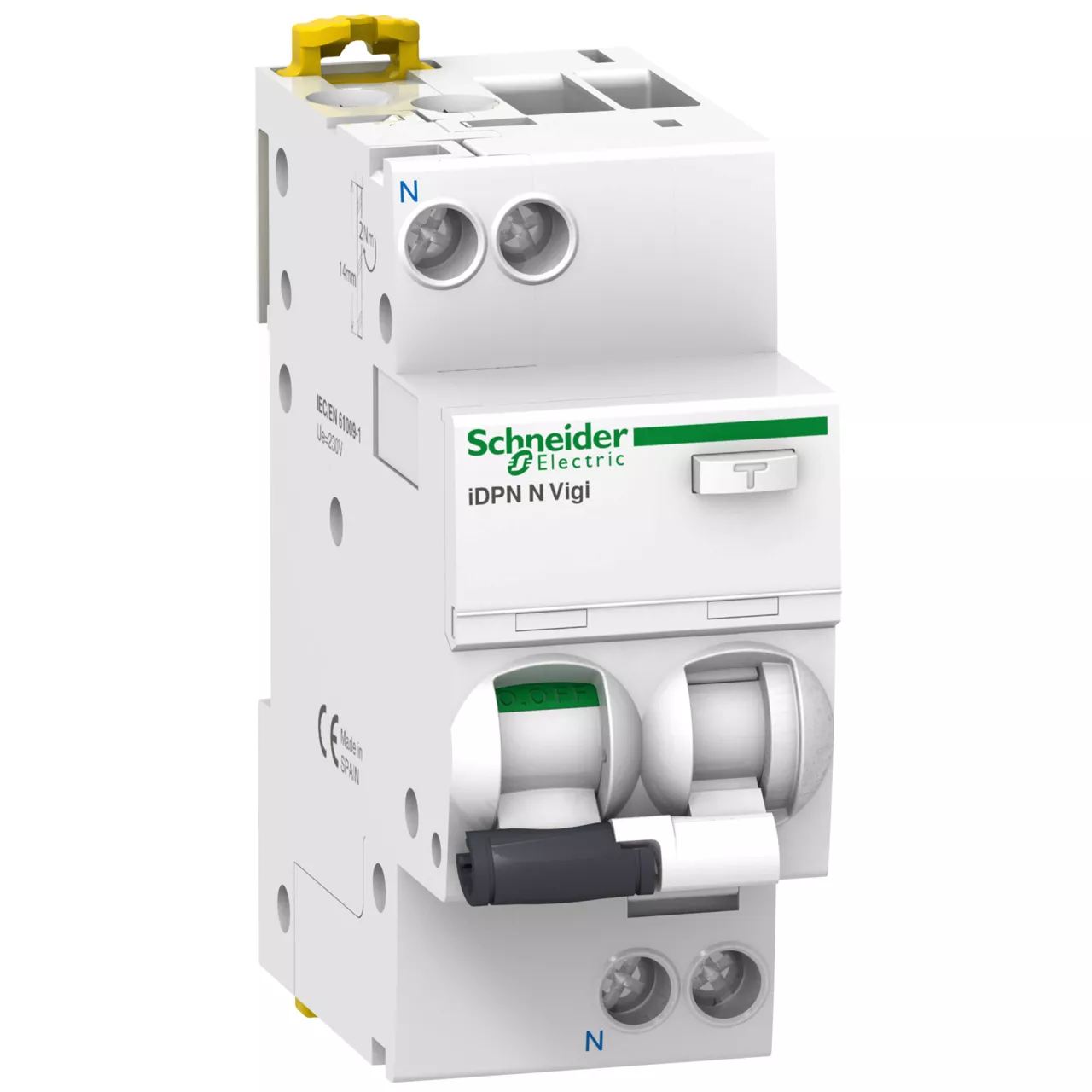

This Acti 9 iDPN N Vigi is a low voltage residual current circuit breaker with overcurrent protection. It has 2P with 1 protected pole, rated current 16A and C tripping curve. This A-SI Type RCD has 30mA sensibility. It brings safety and reliable solution for commercial and industrial applications. It has a longer service life thanks to its high limitation and fast closing. The degree of protection is IP 20 and IP 40 in an enclosure. It is DIN rail mountable. It offers 2 VisiTrip window to reduce intervention time and VisiSafe for safe intervention. It has a test-button.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 26 |
| Gross weight: | 212 g |
| ETIM class: | Earth leakage circuit breaker |
| Number of poles (total): | 2 |
| Built-in depth: | 44 mm |
| Connectable conductor cross section solid-core: | 1 - 16 mm² |
| Leakage current type: | A |
| Voltage type: | AC |
| Surge current capacity: | 3 kA |
| Concurrently switching neutral conductor: | yes |
| Degree of protection (IP): | IP20 |
| Rated short-circuit breaking capacity Icn according to EN 61009-1: | 6 kA |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Release characteristic: | C |
| Rated short-circuit breaking capacity according to EN 61009: | 6 kA |
| Width in number of modular spacings: | 2 |
| Number of protected poles: | 1 |
| Rated fault current: | 0.03 A |
| Disconnection characteristic: | Undelayed |
| Frequency: | 50 Hz |
| Flush-mounted installation: | no |
| Ambient temperature during operating: | -25 - 60 °C |
| Anti-nuisance tripping version: | no |
| Over voltage category: | 3 |
| Current limiting class: | 3 |
| Rated current: | 16 A |
| Rated voltage: | 230 V |
| Rated insulation voltage Ui: | 400 V |
| Connectable conductor cross section multi-wired: | 1 - 10 mm² |
| Pollution degree: | 3 |
| With interlocking device: | no |
