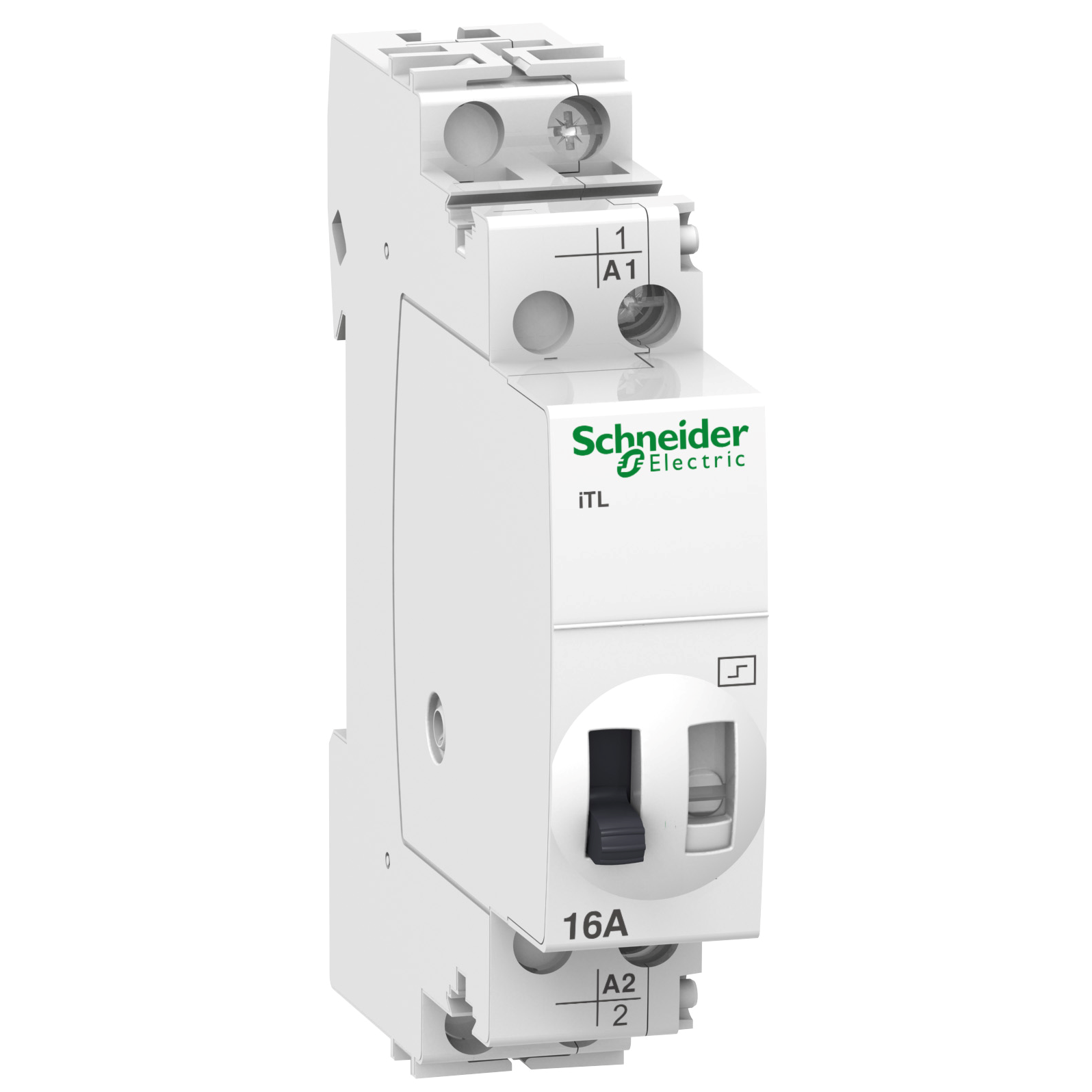

Przekaźnik impulsowy Acti9 iTL-16-10-12 16A 1NO 12VAC/6VDC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | A9C30011 |
| GTIN(EAN) | 3606480091858 |
| Price unit | piece |
| Catalog price | 242,31 zł (197,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik impulsowy iTL-16-10-12 16A 1NO 12VAC/6VDC ,o numerze A9C30011. Możliwość rozbudowy o styki pomocnicze
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 9 |
| Gross weight: | 104 g |
| ETIM class: | Latching relay |
| Type of control voltage 1: | AC |
| Control voltage 2: | 6 - 6 V |
| Frequency control voltage 1: | 50 - 60 Hz |
| Suitable for manual operation: | yes |
| Type of control voltage 2: | DC |
| Built-in depth: | 43.5 mm |
| Max. switching current (cos phi = 0.6): | 16 A |
| Mounting method: | DIN rail |
| Supply voltage: | 24 - 250 V |
| Rated switch current: | 16 A |
| Max. load fluorescent lamp: | 1300 VA |
| Function: | Mechanical switch |
| Max. load fluorescent lamp (Duo circuit): | 2000 VA |
| Voltage type (supply voltage): | AC |
| Width in number of modular spacings: | 1 |
| Max. load fluorescent lamp (parallel compensated): | 900 VA |
| Control voltage 1: | 12 - 12 V |
| Max. incandescent lamp load: | 1600 W |
| Number of contacts as change-over contact: | 0 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as normally closed contact: | 0 |
