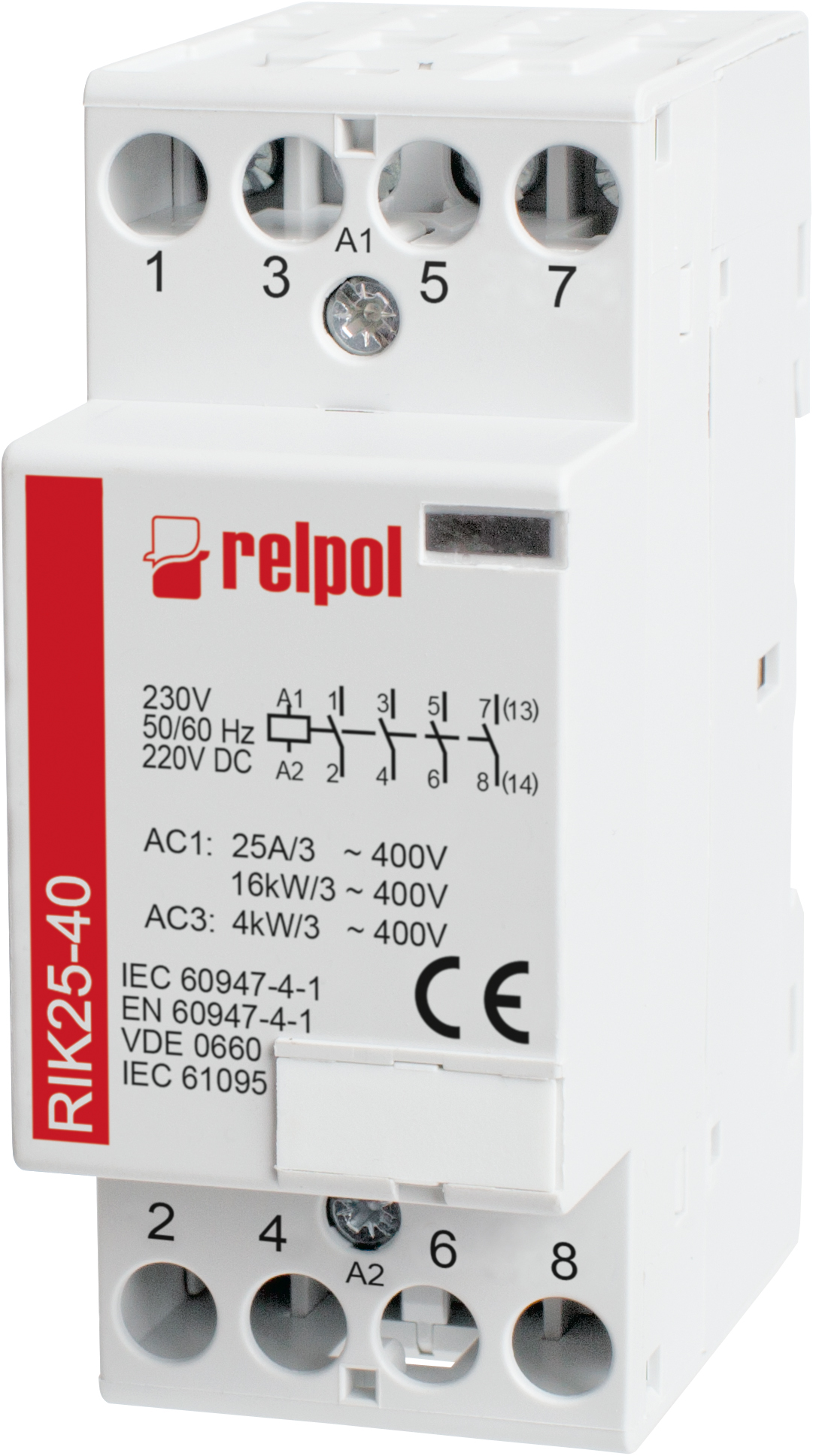

Stycznik instalacyjny RIK25-40-230
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 2608213 |
| Price unit | piece |
| Catalog price | 261,84 zł (212,88 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stycznik instalacyjny, 4-biegunowy, 4 N/O (1-2, 3-4, 5-6, 7-8). Ui - 440 V. Ith - 25 A. AC1/AC7a - 9 kW / 230 V; 16 kW / 400 V. AC3/AC7b - 2,2 kW / 230 V; 4 kW / 400 V. Cewka 230 V AC/DC - zaciski: (+)A1 - (-)A2. Wymiary: 85 x 35 x 65 mm. Montaż na szynie 35 mm. IP 20.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 240 g |
| ETIM class: | Installation contactor for distribution board |
| Rated operating voltage: | 400 - 400 V |
| Rated operation current: | 8.5 A |
| Rated excitation voltage: | 24 - 230 V |
| Voltage type (operating voltage): | AC/DC |
| Voltage type (excitation voltage): | AC/DC |
| Number of contacts as normally open contact: | 4 |
| Number of contacts as normally closed contact: | 0 |
| Slider for hand switch: | no |
| Width in number of modular spacings: | 2 |
| Built-in depth: | 85 mm |
| Degree of protection (IP): | IP20 |
