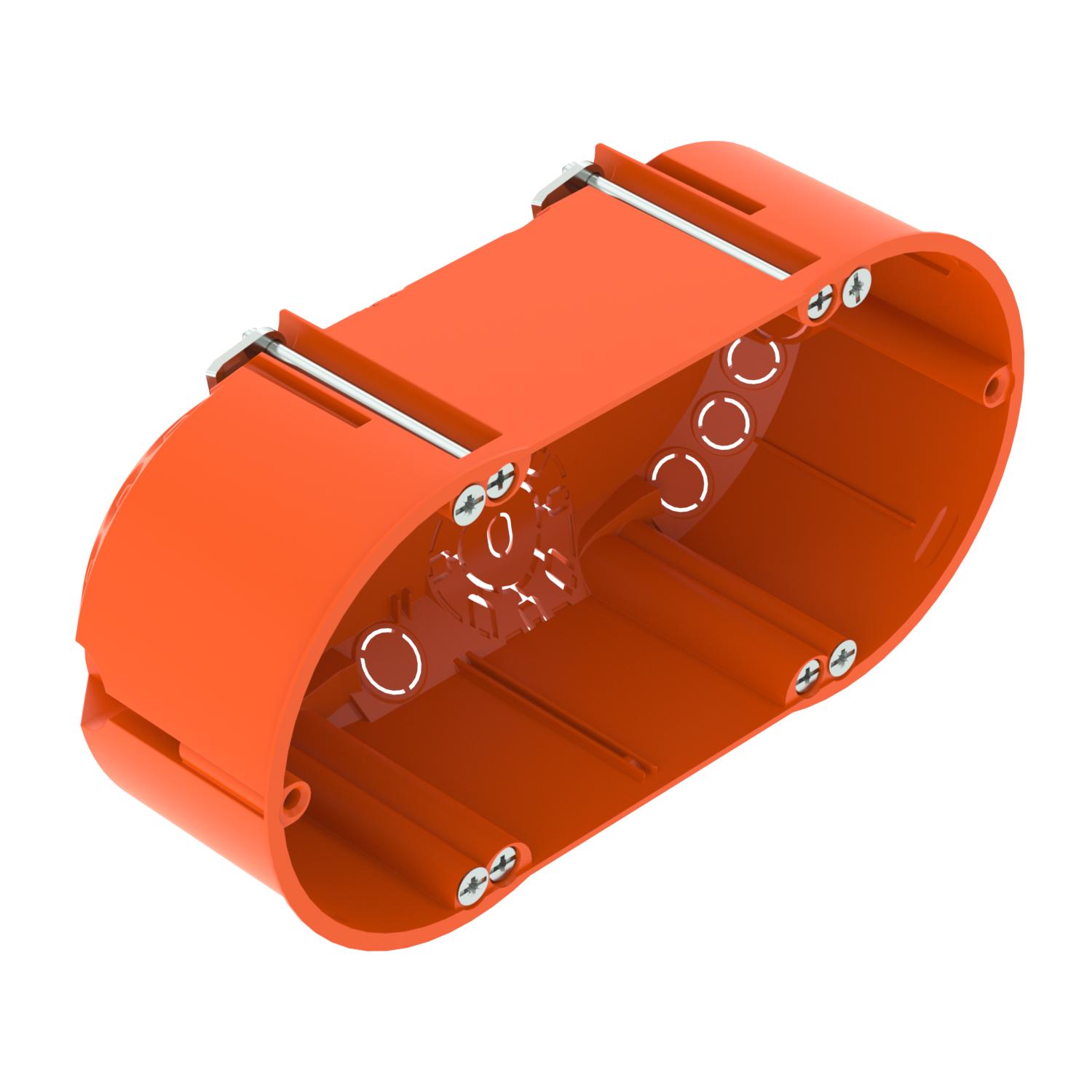

HG 47-DV Puszka do ścian pustych GK bezhal.
Information | Value |
---|---|
Supplier | OBO Bettermann Polska Sp. z o.o. |
Symbol | 2003822 |
GTIN(EAN) | 4012196863945 |
Price unit | piece |
Catalog price | 19,70 zł (16,02 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Puszka do ścian płytowych do stosowania w ścianach o głębokości zabudowy co najmniej 47 mm i grubości płyty 5 - 40 mm.
• 2 x 3 kopułki śrubowe
• Śruby do osprzętu, śruby z uchwytami dociskowymi
• 4 przepusty rurowe kombinowane do Ø 20 i 25 mm
• 4 wejścia na kable NYM 3 x 1,5 mm
• 2 wejścia na kable NYM 3 x 2,5 mm² lub 5 x 1,5 mm²
• 2 wejścia na kable NYM 5 x 2,5 mm² lub 7 x 1,5 mm²
• Połączenie z innymi puszkami poprzez łącznik typu ZH 11-V
Additional features:
Information | Value |
---|---|
ETIM class: | Box/housing for built-in mounting in the wall/ceiling |
Shape: | Oval |
Construction type: | Built-in installation box (device box) |
Model: | Double |

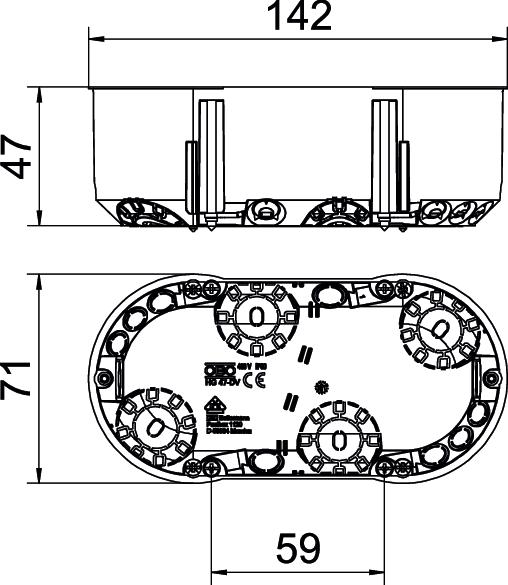

Length: | 142 mm |
Width: | 71 mm |
Depth: | 47 - 47 mm |
For number of electric fittings: | 2 |
Mounting switching equipment: | Screwing |
With screws: | yes |
Housing feed-through by break-out opening: | yes |
Housing feed-through by seal membrane: | no |
Housing feed-through by nozzle: | no |
Housing feed-through by step membrane: | no |
For tube diameter: | 20/25 mm |
Number of inlets: | 12 |
Material: | Plastic |
Halogen free: | yes |
Colour: | Orange |
Degree of protection (IP): | IP30 |
Cover attachment: | Screwed |
Nozzle: | Other |
