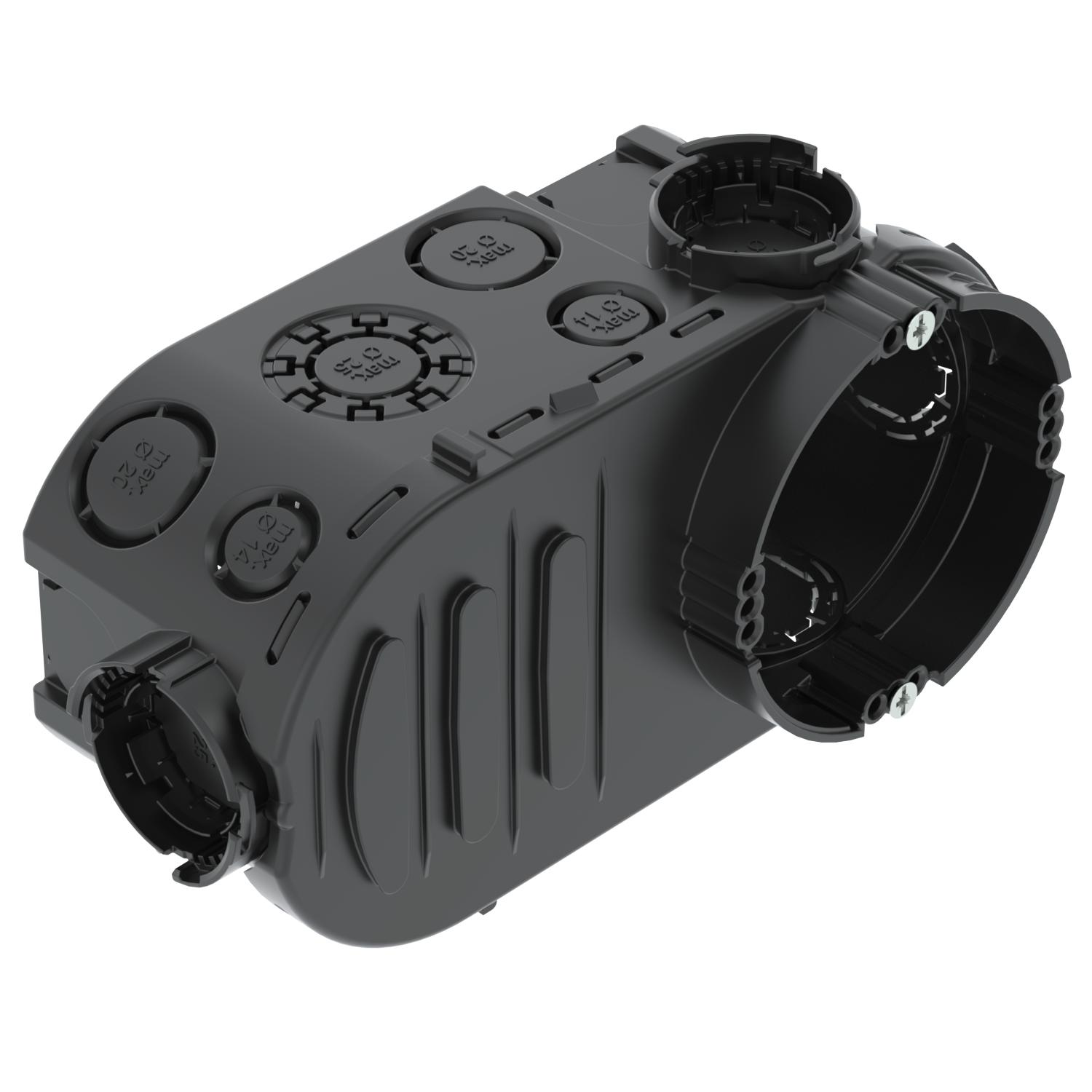

UE 66 Puszka podtynkowa do elektr. bezhal.
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 2003726 |
| GTIN(EAN) | 4012196856565 |
| Price unit | piece |
| Catalog price | 29,47 zł (23,96 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Puszka podtynkowa do elektroniki z boczną przestrzenią łączeniową, do stosowania w murze o głębokości zabudowy co najmniej 66 mm.
• z 4 łącznikami z zamkiem bagnetowym
• 6 przepustów rurowych kombinowanych Ø 20 i 25 mm
• 8 wejść do Ø 20 mm
• 6 wejść do Ø 14 mm
• 2 wejścia do Ø 20 mm w podstawie
• Ścianka dzieląca komory puszki, z otworami do wyłamania
• 4 x 3 kopułki śrubowe
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Box/housing for built-in mounting in the wall/ceiling |
| Shape: | Oval |
| Construction type: | Other |
| Model: | Single |

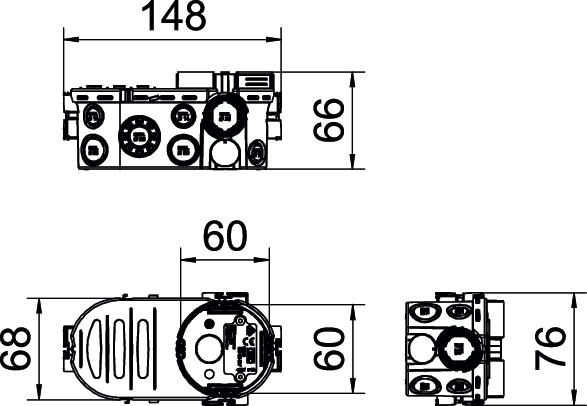

| Diameter: | 60 mm |
| Length: | 148 mm |
| Width: | 76 mm |
| Depth: | 66 - 66 mm |
| Mounting switching equipment: | Screwing |
| With screws: | yes |
| Housing feed-through by break-out opening: | yes |
| Housing feed-through by seal membrane: | no |
| Housing feed-through by nozzle: | no |
| Housing feed-through by step membrane: | no |
| For tube diameter: | 20/25 mm |
| Inlet from the rear: | yes |
| Number of inlets: | 22 |
| Material: | Plastic |
| Halogen free: | yes |
| Colour: | Black |
| Degree of protection (IP): | IP30 |
| Cover attachment: | Screwed |
| Max. conductor cross section: | 2,5 mm² |
