UG 66-DV Puszka podtynkowa podwójna bezhal.
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 2003720 |
| GTIN(EAN) | 4012196959082 |
| Price unit | piece |
| Catalog price | 22,37 zł (18,19 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

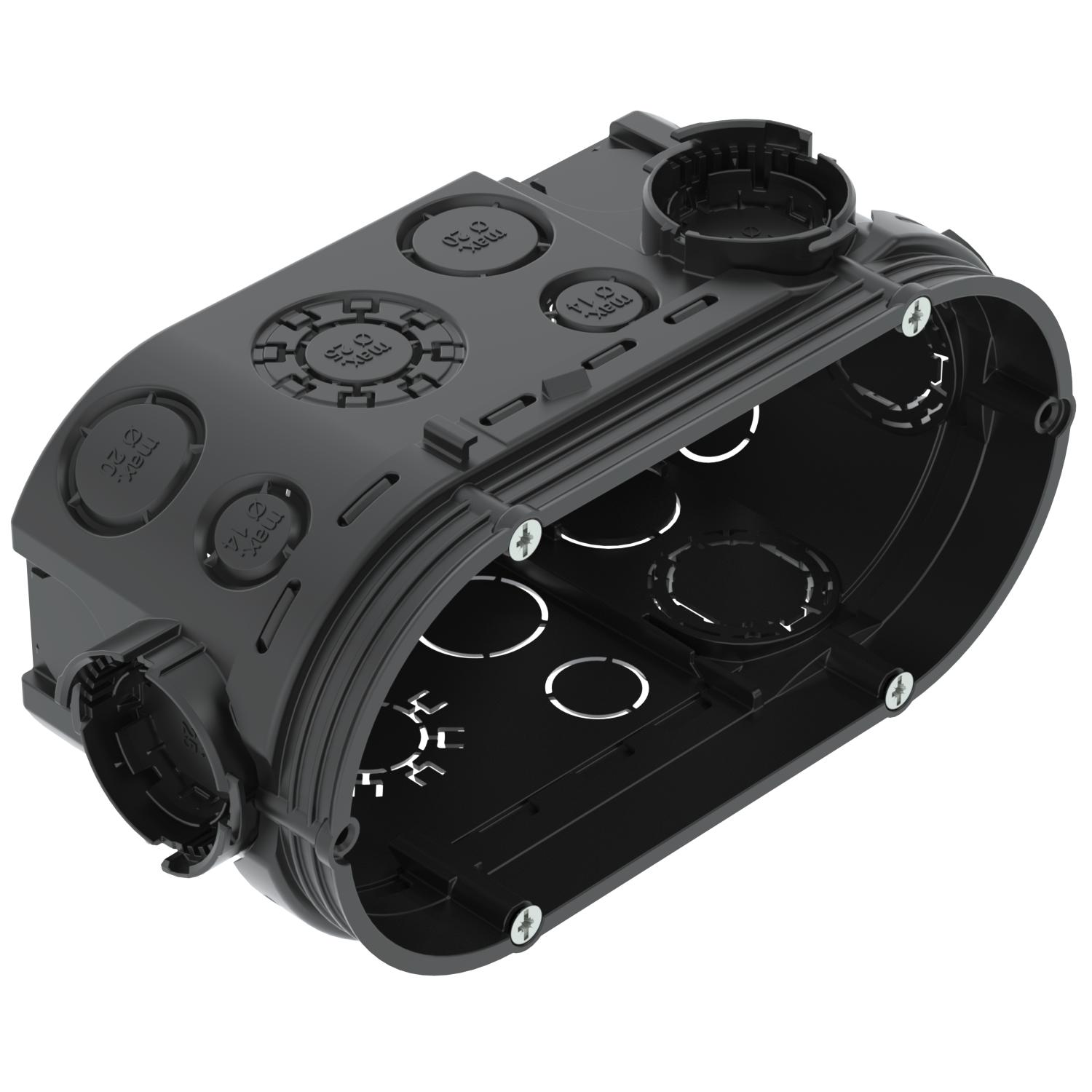

Podwójna puszka podtynkowa do stosowania w murze o głębokości zabudowy co najmniej 66 mm.
• Z 4 łącznikami z zatrzaskiem bagnetowym
• 6 przepustów rurowych kombinowanych Ø 20 i 25 mm
• 8 wejść do Ø 20 mm
• 6 wejść do Ø 14 mm
• 2 wejścia do Ø 20 mm w podstawie
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Box/housing for built-in mounting in the wall/ceiling |
| Shape: | Oval |
| Construction type: | Device connection box (round/square) |
| Model: | Double |

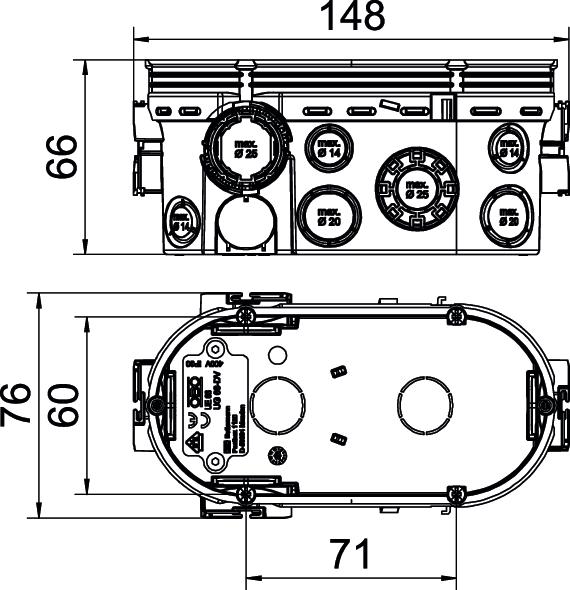

| Length: | 148 mm |
| Width: | 60 mm |
| Depth: | 66 - 66 mm |
| Mounting switching equipment: | Screw or spread out |
| Housing feed-through by break-out opening: | yes |
| Housing feed-through by seal membrane: | no |
| Housing feed-through by nozzle: | no |
| Housing feed-through by step membrane: | no |
| For tube diameter: | 20/25 mm |
| Inlet from the rear: | yes |
| Number of inlets: | 22 |
| Material: | Plastic |
| Halogen free: | yes |
| Colour: | Black |
| Degree of protection (IP): | IP30 |
| Cover attachment: | Screwed |
