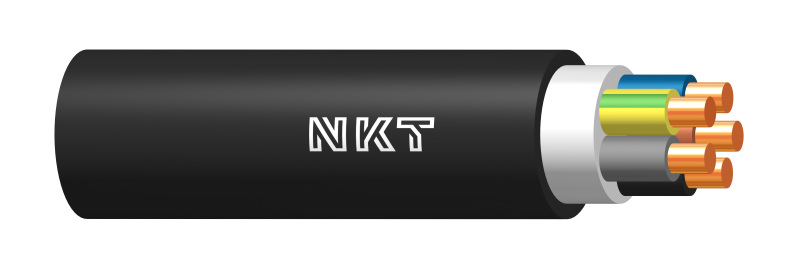

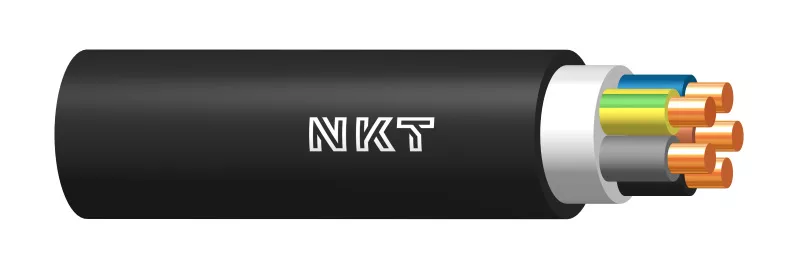

YKYżo 0.6/1 kV 5x1,5
| Information | Value |
|---|---|
| Supplier | NKT S.A. |
| Symbol | 13038010 |
| GTIN(EAN) | 5907802013076 |
| Price unit | kilometer |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
| Sale price |
from 2,91 zł
/ m from 2 914,51 zł / km (2 369,52 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Kable przeznaczone do układania na stałe, wewnątrz i na zewnatrz pomieszczeń, bezpośrednio w ziemi i w obudowch betonowych, odporne na promieniowanie UV
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Power cable >= 1 kV, for permanent installation |
| Nominal cross section conductor: | 1.5 mm² |
| Conductor category: | Class 1 = solid |
| Shape of conductor: | Round |
| Number of cores: | 5 |
| Material core insulation: | Polyvinyl chloride (PVC) |
| Core identification: | Colour |
| Screen: | yes |
| Drain wire: | yes |
| Lead sheath: | yes |
| Number of pilot/reduced conductors: | 0 |
| Concentric conductor: | None |
| Armouring: | yes |
| Material outer sheath: | Polyvinyl chloride (PVC) |
| Colour outer sheath: | Black |
| Flame retardant: | According to IEC/EN 60332-1-2 |
| Low smoke (according to EN 61034-2): | yes |
| Insulation integrity: | No |
| Circuit integrity: | No |
| Outer diameter approx.: | 11.50 mm |
| Max. conductor temperature: | 70 °C |
| Permitted cable outer temperature after assembling without vibration: | -35 - 70 °C |
| Nominal voltage U0: | 0.6 kV |
| Nominal voltage U: | 1 kV |
| Halogen free according to EN 60754-1/2: | yes |
| Conductor surface: | Bare |
| Specification core insulation: | Other |
| Laminated sheath: | yes |
| Fibre optic elements: | yes |
| Inner semi-conducting layer: | yes |
| Outer semi-conducting layer: | yes |
| Specification material outer sheath: | Other |
| Conductive coating: | yes |
| Longitudinal water blocking conductors: | yes |
| Longitudinal water blocking screen: | yes |
| Reaction-to-fire according to EN 13501-6: Class: | Eca |
| Reaction-to-fire according to EN 13501-6: Smoke production: | None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | None |
| Reaction-to-fire according to EN 13501-6: Acidity: | None |
| Halogen free according to EN IEC 60754-2: | yes |
| Low smoke according to EN IEC 61034-2: | yes |
| Insulation integrity according to IEC 60331: | yes |
| Oil resistant (according to IEC 60811-404): | yes |
