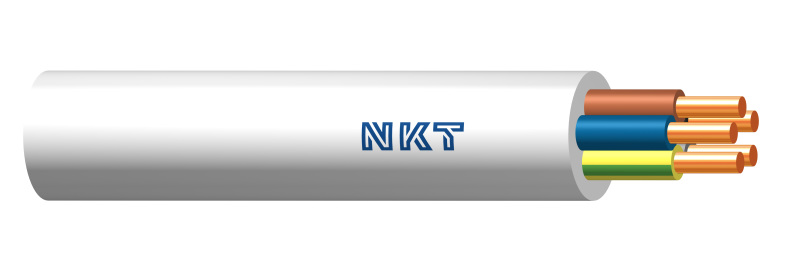

YDYżo 450/750 5x2,5 biały
| Information | Value |
|---|---|
| Supplier | NKT S.A. |
| Symbol | 13025019 |
| GTIN(EAN) | 5907802009291 |
| Price unit | kilometer |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
| Sale price |
from 4,90 zł
/ m from 4 903,35 zł / km (3 986,46 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przewody przeznaczone do przesyłu energii elektrycznej, do instalacji na stałe wewnątrz pomieszczeń, do umieszczania pod, w oraz na tynku
Additional features:
| Information | Value |
|---|---|
| Net weight: | 247 g |
| ETIM class: | Power cable < 1 kV, for permanent installation |
| Nominal cross section conductor: | 2.5 mm² |
| Conductor category: | Class 1 = solid |
| Number of cores: | 5 |
| Material core insulation: | Polyvinyl chloride (PVC) |
| Core identification: | Colour |
| Max. conductor temperature: | 70 °C |
| Screen: | yes |
| Drain wire: | yes |
| Protective barrier: | None |
| Armouring/reinforcement: | None |
| Material outer sheath: | Polyvinyl chloride (PVC) |
| Colour outer sheath: | White |
| Flame retardant: | According to IEC/EN 60332-1-2 |
| Low smoke (according to EN 61034-2): | yes |
| Insulation integrity: | No |
| Outer diameter approx.: | 11.06 mm |
| Permitted cable outer temperature after assembling without vibration: | -40 - 70 °C |
| Nominal voltage U0: | 450 V |
| Nominal voltage U: | 750 V |
| Halogen free according to EN 60754-1/2: | yes |
| Conductor surface: | Bare |
| Specification core insulation: | Other |
| Core colour: | Several |
| Specification material outer sheath: | Other |
| Reaction-to-fire according to EN 13501-6: Class: | Eca |
| Reaction-to-fire according to EN 13501-6: Smoke production: | None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | None |
| Reaction-to-fire according to EN 13501-6: Acidity: | None |
| Low temperature resistant according to EN 60811-504+505+506: | yes |
| Oil resistant according to EN IEC 60811-404: | yes |
