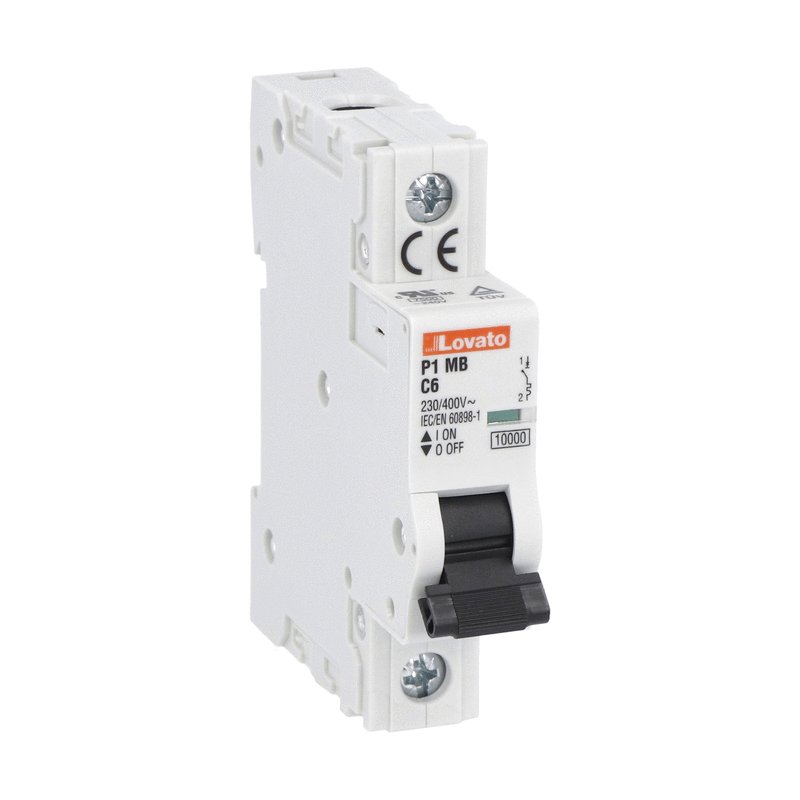

Wyłącznik nadprądowy, 10kA - 1P - charakterystyka C, 6A
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | P1MB1PC06 |
| GTIN(EAN) | 8013975202852 |
| Price unit | piece |
| Catalog price | 44,28 zł (36,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 115 g |
| ETIM class: | Miniature circuit breaker (MCB) |
| Degree of protection (IP): | IP20 |
| Release characteristic: | C |
| Voltage type: | AC/DC |
| Ambient temperature during operating: | -40 - 70 °C |
| Connectable conductor cross section solid-core: | 1 - 35 mm² |
| Frequency: | 50 - 60 Hz |
| Additional equipment possible: | yes |
| Flush-mounted installation: | no |
| Concurrently switching neutral conductor: | yes |
| Explosion-proof: | no |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: | 10 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: | 10 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 10 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 10 kA |
| Number of poles (total): | 1 |
| Number of protected poles: | 1 |
| Width in number of modular spacings: | 1 |
| Pollution degree: | 2 |
| Over voltage category: | 3 |
| Rated insulation voltage Ui: | 1000 V |
| Rated voltage: | 230 V |
| Rated current: | 6 A |
| Built-in depth: | 66 mm |
