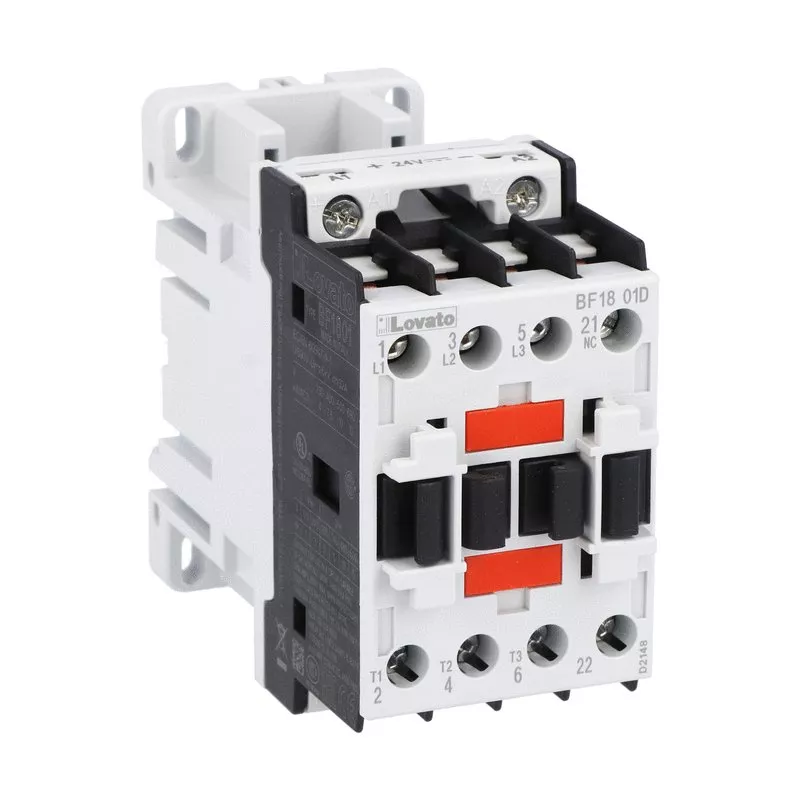

Stycznik 3 polowy, 18A w AC3, wbudowany zestyk pomocniczy 1NC, 24VDC
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | BF1801D024 |
| GTIN(EAN) | 8013975166260 |
| Price unit | piece |
| Catalog price | 370,23 zł (301,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 495 g |
| ETIM class: | Power contactor, AC switching |
| Voltage type for actuating: | DC |
| Type of electrical connection of main circuit: | Screw connection |
| Rated control supply voltage DC: | 24 - 24 V |
| Modular version: | no |
| Rated operation current Ie at AC-4, 400 V: | 8.5 A |
| Rated operation current Ie at AC-1, 400 V: | 32 A |
| Rated operation current Ie at AC-3, 400 V: | 18 A |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 3 |
| Rated operation power at AC-3, 400 V: | 7.5 kW |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Manufacturer or importer or entity responsible in EU |
LOVATO ELECTRIC S.P.A.
Via Don E. Mazza 12, 24020 GORLE (Bergamo), Włochy
tel: 717979010 mail: info@lovatoelectric.pl
|
| Updated: | 2024-12-02 15:00:10 |
