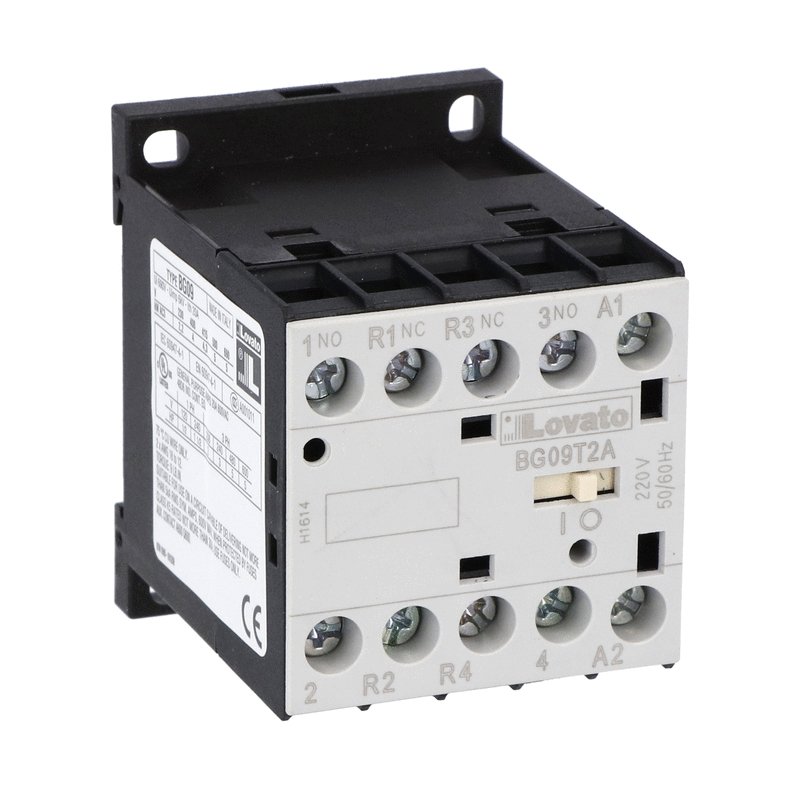

Stycznik 4 polowy, 2NO+2NC, 20A w AC1, 230VAC 50/60Hz
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | 11BG09T2A230 |
| GTIN(EAN) | 8013975081389 |
| Price unit | piece |
| Catalog price | 190,65 zł (155,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 182 g |
| ETIM class: | Power contactor, AC switching |
| Voltage type for actuating: | AC |
| Type of electrical connection of main circuit: | Screw connection |
| Rated control supply voltage AC 60 Hz: | 230 - 230 V |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Modular version: | no |
| Rated operation current Ie at AC-1, 400 V: | 20 A |
| Rated operation current Ie at AC-3, 400 V: | 9 A |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of normally closed contacts as main contact: | 2 |
| Number of normally open contacts as main contact: | 2 |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Manufacturer or importer or entity responsible in EU |
LOVATO ELECTRIC S.P.A.
Via Don E. Mazza 12, 24020 GORLE (Bergamo), Włochy
tel: 717979010 mail: info@lovatoelectric.pl
|
| Updated: | 2024-12-02 15:00:05 |
