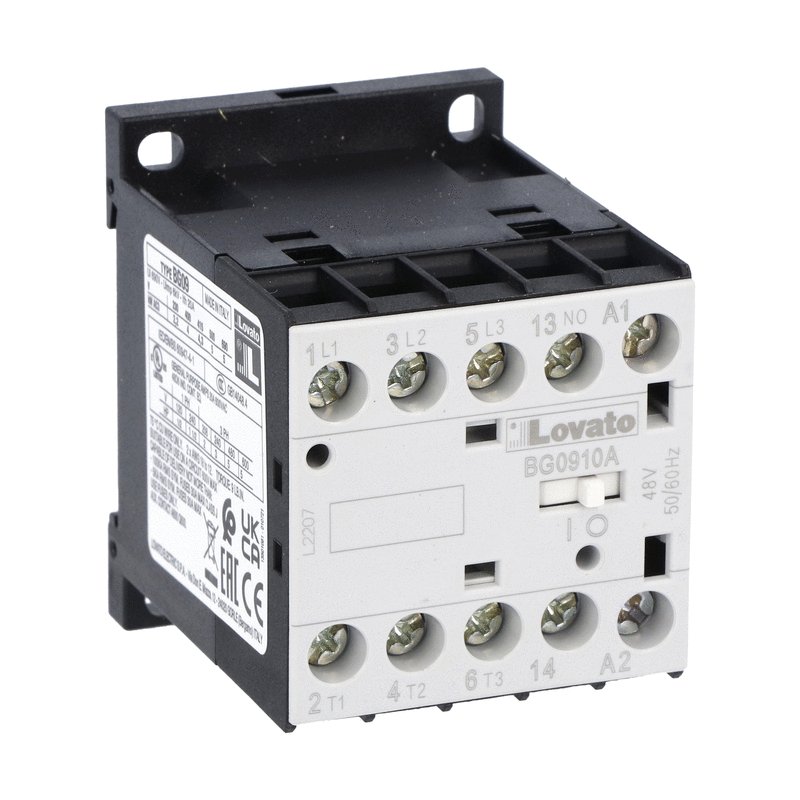

Stycznik 3 polowy, 9A w AC3, wbudowany zestyk 1NO, 24VAC 50/60Hz
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | 11BG0910A024 |
| GTIN(EAN) | 8013975080023 |
| Price unit | piece |
| Catalog price | 163,59 zł (133,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 178 g |
| ETIM class: | Power contactor, AC switching |
| Voltage type for actuating: | AC |
| Type of electrical connection of main circuit: | Screw connection |
| Rated control supply voltage AC 60 Hz: | 24 - 24 V |
| Rated control supply voltage AC 50 Hz: | 24 - 24 V |
| Modular version: | no |
| Rated operation current Ie at AC-4, 400 V: | 4 A |
| Rated operation current Ie at AC-1, 400 V: | 20 A |
| Rated operation current Ie at AC-3, 400 V: | 9 A |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 3 |
| Rated operation power at AC-3, 400 V: | 4 kW |
