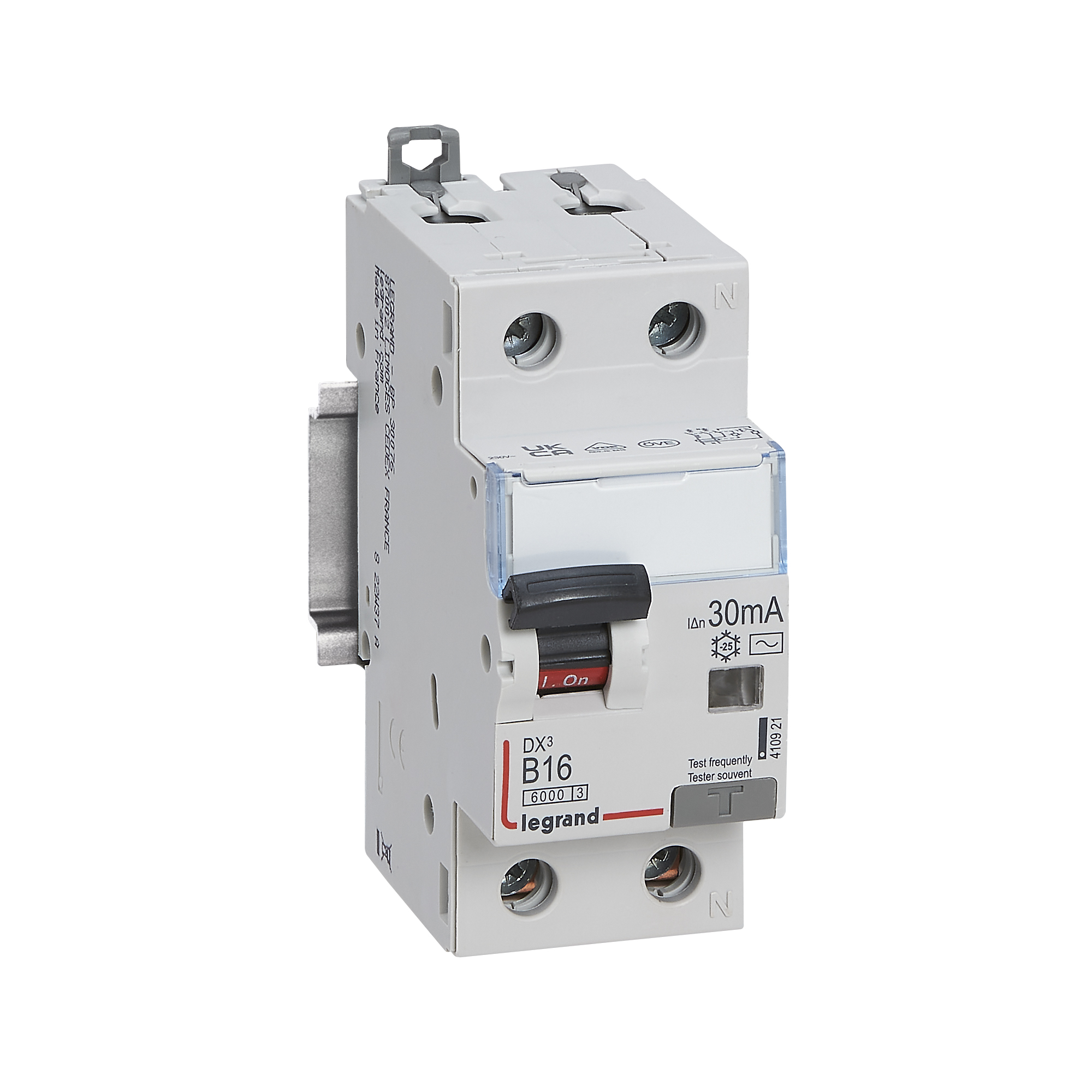

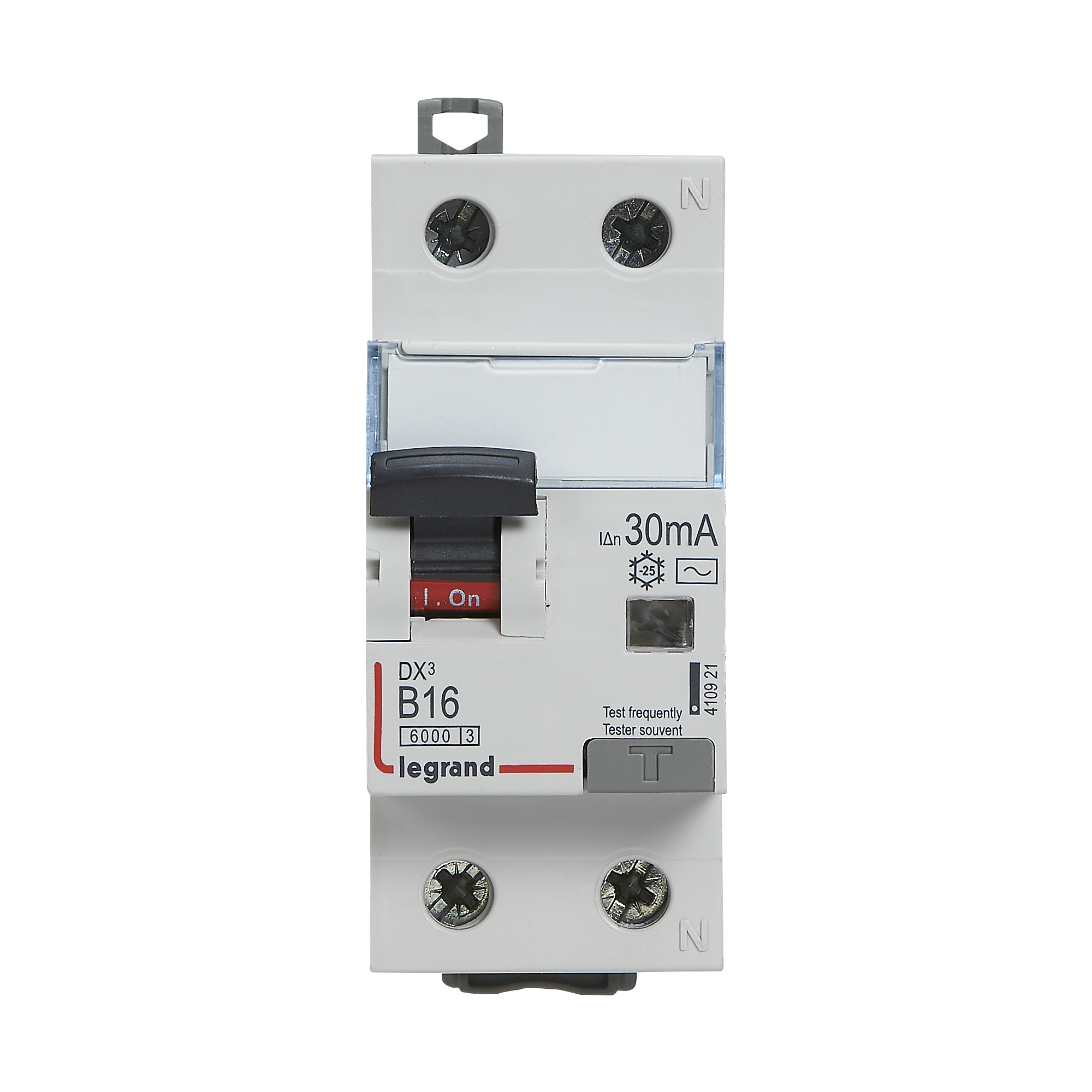

WYŁĄCZNIK RÓŻNICOWONADPRĄDOWY P 312 2P B 16A 30MA TYP AC SERII DX3, Legrand
| Information | Value |
|---|---|
| Supplier | Legrand Polska Sp. z o.o. |
| Symbol | 410921 |
| GTIN(EAN) | 3414970351227 |
| Price unit | piece |
| Catalog price | 447,98 zł (364,21 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Country of origin | Francja |
| ETIM class: | Earth leakage circuit breaker |
| Frequency: | 50 Hz |
| Connectable conductor cross section solid-core: | 0.75 - 16 mm² |
| Ambient temperature during operating: | -25 - 70 °C |
| Leakage current type: | AC |
| Degree of protection (IP): | IP20 |
| Concurrently switching neutral conductor: | yes |
| Voltage type: | AC |
| Surge current capacity: | 0.25 kA |
| Anti-nuisance tripping version: | no |
| Rated short-circuit breaking capacity according to IEC 60947-2: | 6 kA |
| Rated short-circuit breaking capacity according to EN 61009: | 6 kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1: | 6 kA |
| Rated fault current: | 0.03 A |
| Number of protected poles: | 1 |
| Built-in depth: | 44 mm |
| Number of poles (total): | 2 |
| Pollution degree: | 2 |
| Width in number of modular spacings: | 2 |
| With interlocking device: | yes |
| Connectable conductor cross section multi-wired: | 0.75 - 10 mm² |
| Rated current: | 16 A |
| Current limiting class: | 3 |
| Release characteristic: | B |
| Flush-mounted installation: | yes |
| Rated voltage: | 230 V |
