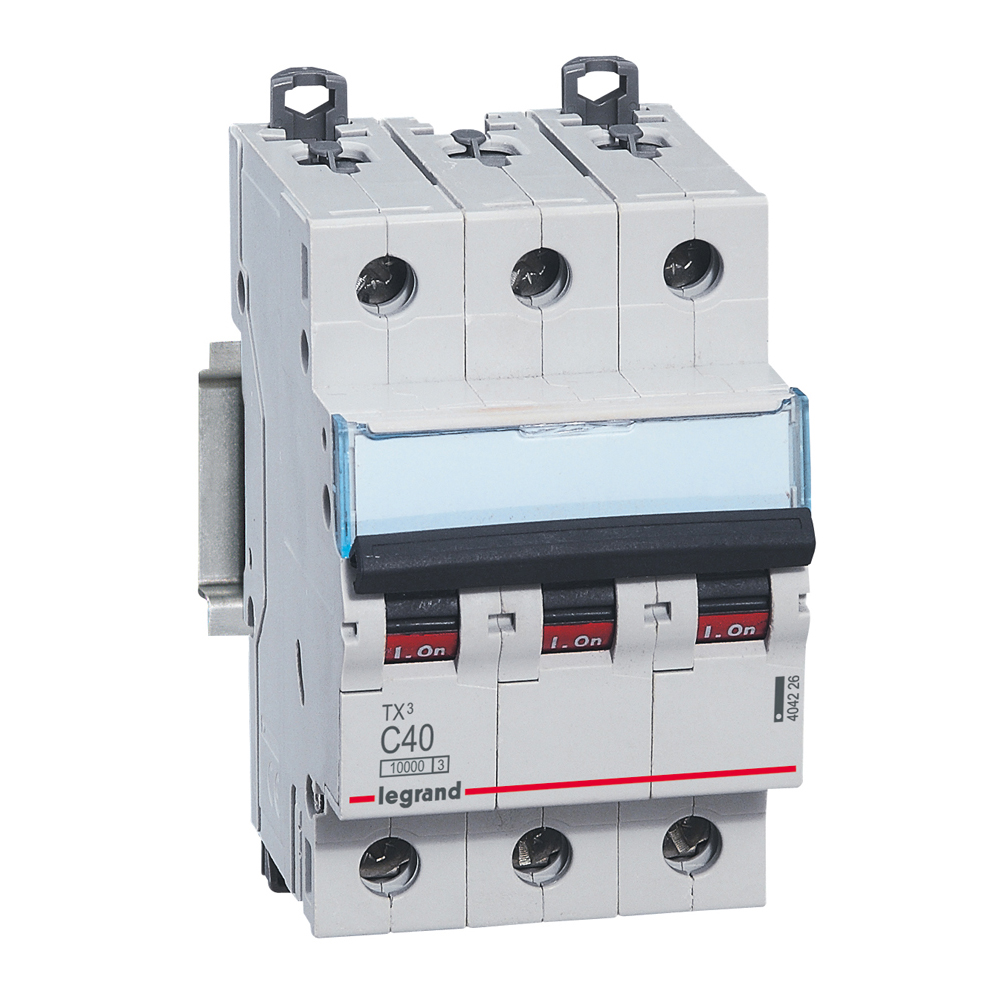

WYŁĄCZNIK NADPRĄDOWY S 313 3P C 40A 10000A SERII TX3, Legrand
| Information | Value |
|---|---|
| Supplier | Legrand Polska Sp. z o.o. |
| Symbol | 404226 |
| GTIN(EAN) | 3414970394453 |
| Price unit | piece |
| Catalog price | 508,78 zł (413,64 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Country of origin | Polska |
| ETIM class: | Miniature circuit breaker (MCB) |
| Explosion-proof: | no |
| Degree of protection (IP): | IP20 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 16 kA |
| Concurrently switching neutral conductor: | no |
| Voltage type: | AC |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 10 kA |
| Additional equipment possible: | yes |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Number of protected poles: | 3 |
| Frequency: | 50 - 60 Hz |
| Built-in depth: | 44 mm |
| Number of poles (total): | 3 |
| Pollution degree: | 2 |
| Width in number of modular spacings: | 3 |
| Rated insulation voltage Ui: | 500 V |
| Rated current: | 40 A |
| Current limiting class: | 3 |
| Release characteristic: | C |
| Flush-mounted installation: | yes |
| Rated voltage: | 400 V |
