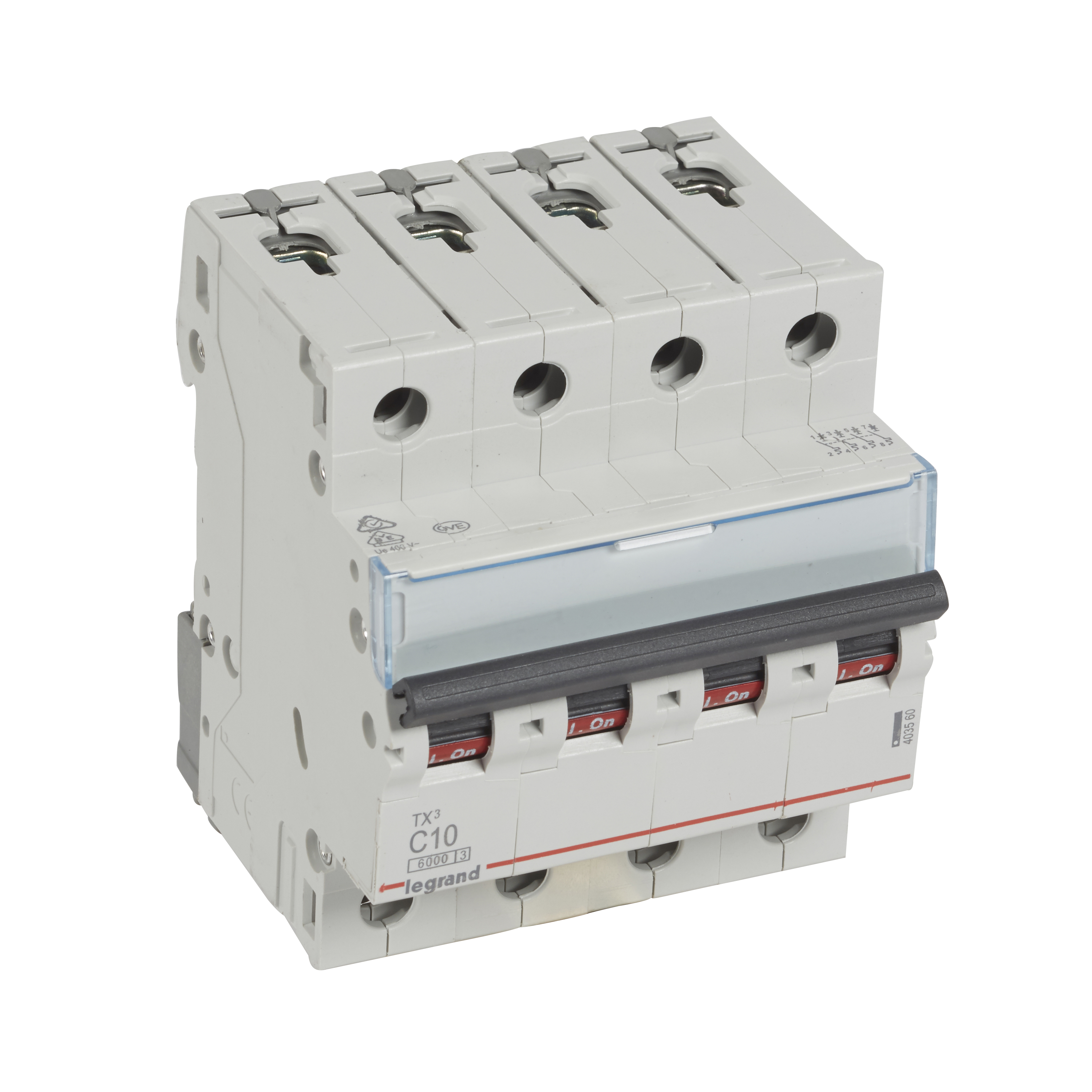

WYŁĄCZNIK NADPRĄDOWY S 304 4P C 10A 6000A SERII TX3, Legrand
Information | Value |
---|---|
Supplier | Legrand Polska Sp. z o.o. |
Symbol | 403560 |
GTIN(EAN) | 3414970389831 |
Price unit | piece |
Catalog price | 281,15 zł (228,58 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Country of origin | Polska |
ETIM class: | Miniature circuit breaker (MCB) |
Voltage type: | AC |
Built-in depth: | 44 mm |
Rated current: | 10 A |
Rated voltage: | 400 V |
Frequency: | 50 - 60 Hz |
Release characteristic: | C |
Rated insulation voltage Ui: | 500 V |
Current limiting class: | 3 |
Pollution degree: | 2 |
Width in number of modular spacings: | 4 |
Explosion-proof: | no |
Degree of protection (IP): | IP20 |
Number of protected poles: | 4 |
Concurrently switching neutral conductor: | yes |
Flush-mounted installation: | yes |
Additional equipment possible: | yes |
Number of poles (total): | 4 |
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 6 kA |
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 10 kA |
Rated impulse withstand voltage Uimp: | 4 kV |
Buy online
Buy / order
Wholesaler
Address
Distance
Available
Actions
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
Information | Value |
---|---|
Manufacturer or importer or entity responsible in EU |
Legrand Polska Sp. z o.o.
Waryńskiego 20, 57-200 Ząbkowice Śląskie, Polska
mail: info@legrand.com.pl
|
Updated: | 2024-12-09 13:51:31 |
Files to download: |
|
