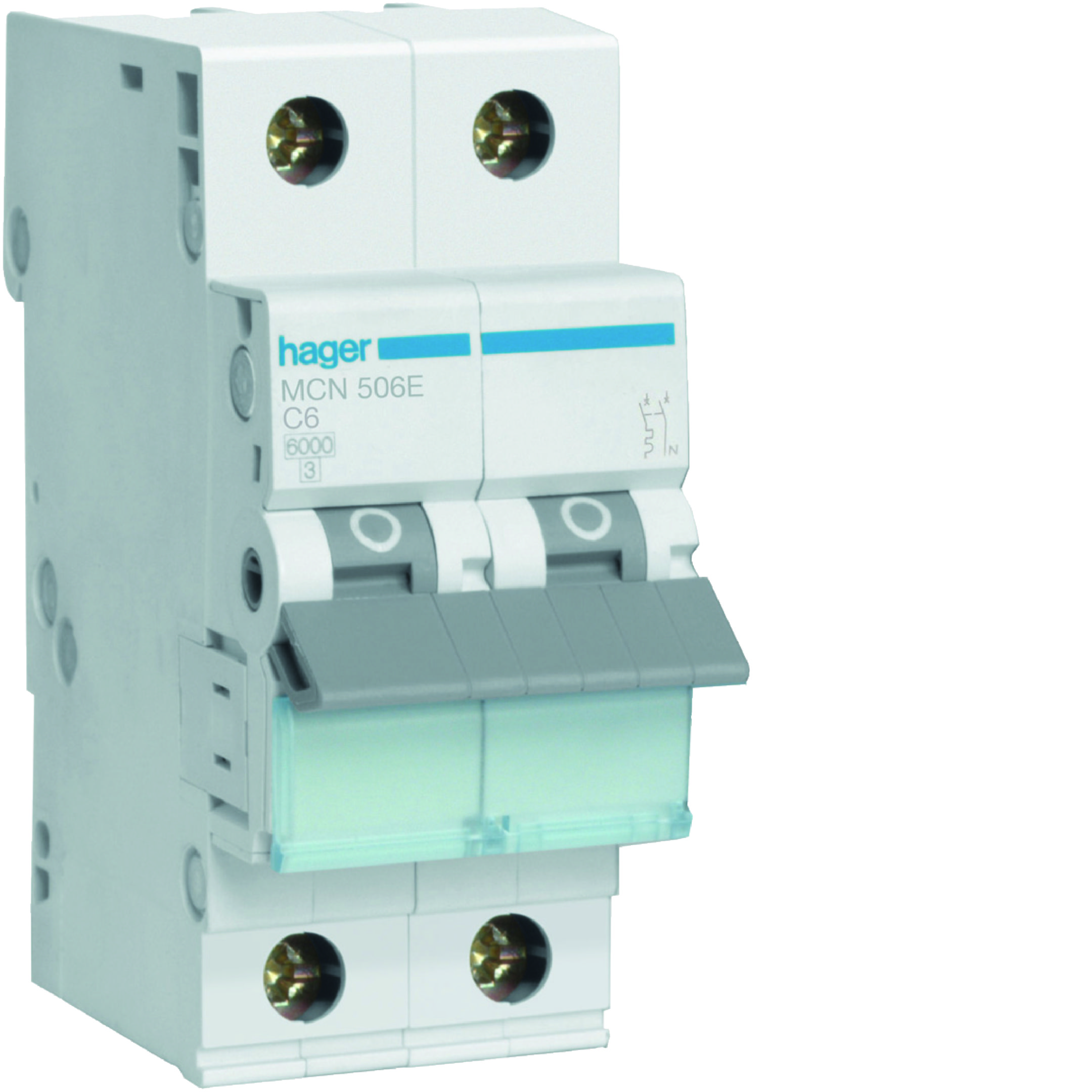

MCB Wyłącznik nadprądowy Icn=6000A 1P+N C 6A
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | MCN506E |
| GTIN(EAN) | 3250614314247 |
| Price unit | piece |
| Catalog price | 141,45 zł (115,00 zł + 23% VAT) |
| Sale price | from 26,63 zł / szt. (21,65 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 172,5 g |
| Country of origin | Francja |
| ETIM class: | Miniature circuit breaker (MCB) |
| Rated current: | 6 A |
| Rated insulation voltage Ui: | 500 V |
| Voltage type: | AC |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Ambient temperature during operating: | -25 - 70 °C |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: | 10 kA |
| Over voltage category: | 3 |
| Frequency: | 50 - 60 Hz |
| Release characteristic: | C |
| Number of protected poles: | 1 |
| Connectable conductor cross section multi-wired: | 1 - 25 mm² |
| Number of poles (total): | 2 |
| Built-in depth: | 70 mm |
| Connectable conductor cross section solid-core: | 1 - 35 mm² |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 6 kA |
| Rated voltage: | 230 V |
| Concurrently switching neutral conductor: | yes |
| Pollution degree: | 2 |
| Width in number of modular spacings: | 2 |
| Current limiting class: | 3 |
| Degree of protection (IP): | IP20 |
| Additional equipment possible: | yes |
| Explosion-proof: | no |
| Flush-mounted installation: | yes |
| Power loss: | 2.50 W |
buy at the outlet / on sale
Wholesaler / branch / Address
Distance
Available
Price
Actions
KARO ELEKTRO PLUS Bielsko-Biała
Bielsko-Biała, Legionów 93
Bielsko-Biała, Legionów 93
Distance:
30 sztuk
26,63 zł/szt.
Buy online
Buy / order
Wholesaler
Address
Distance
Available
Actions
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-11-08 11:38:26 |
| Files to download: | |
| External links: |
