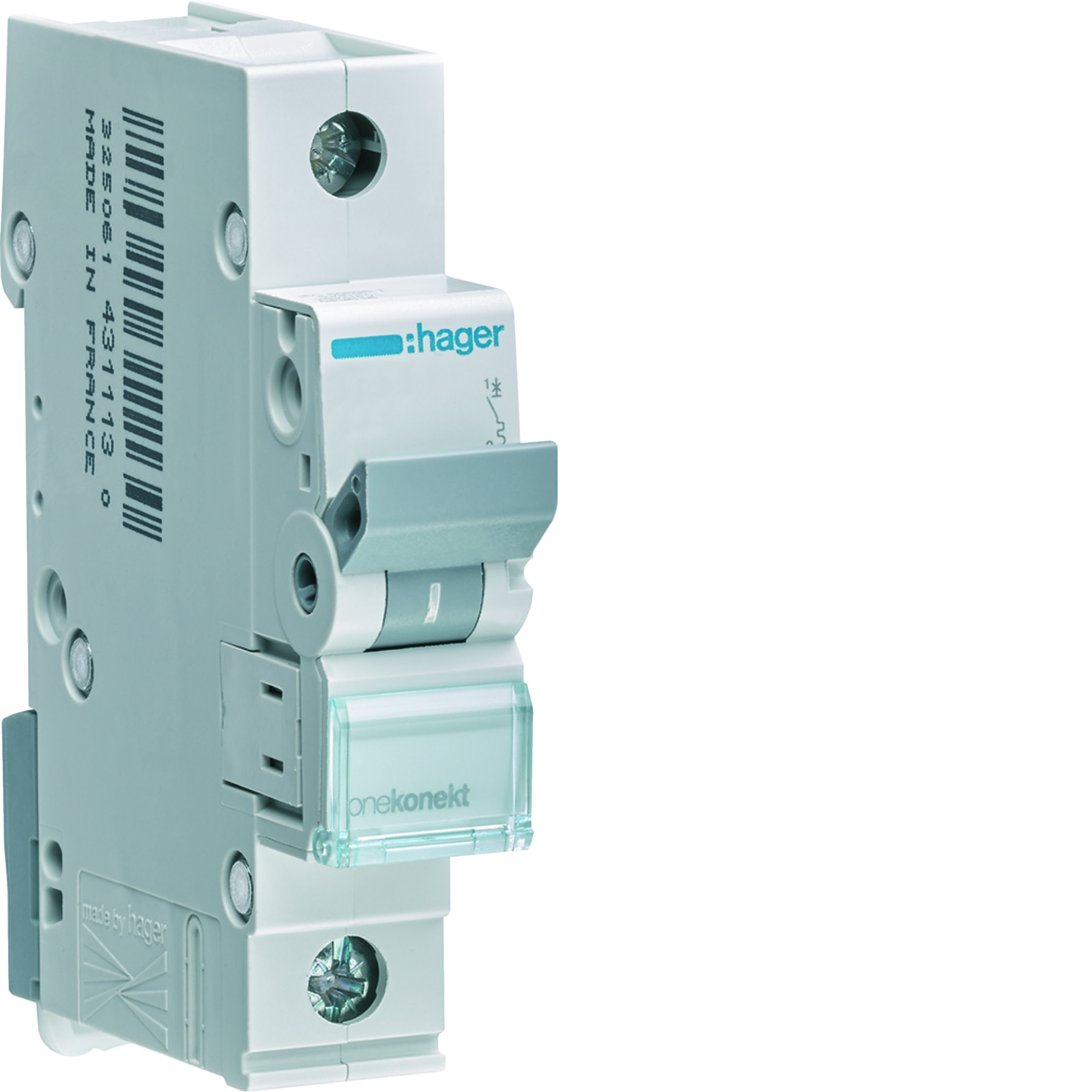

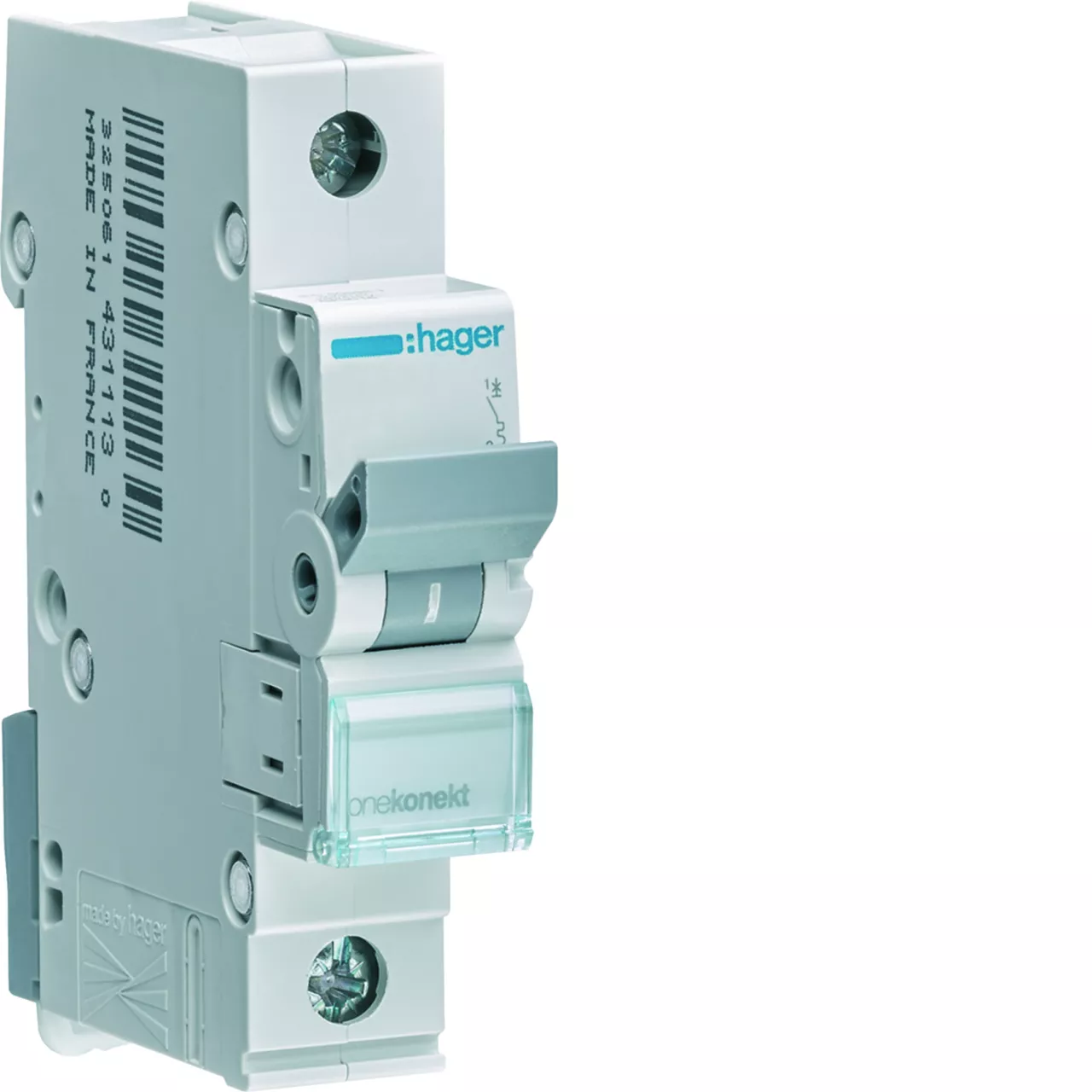

MCB Wyłącznik nadprądowy Icn=6000A 1P B 16A
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | MBN116E |
| GTIN(EAN) | 3250614312762 |
| Price unit | piece |
| Catalog price | 29,89 zł (24,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 101,7 g |
| Country of origin | Indie |
| ETIM class: | Miniature circuit breaker (MCB) |
| Rated current: | 16 A |
| Rated insulation voltage Ui: | 500 V |
| Voltage type: | AC |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Ambient temperature during operating: | -25 - 70 °C |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: | 6 kA |
| Over voltage category: | 3 |
| Frequency: | 50 - 60 Hz |
| Release characteristic: | B |
| Number of protected poles: | 1 |
| Connectable conductor cross section multi-wired: | 1 - 25 mm² |
| Number of poles (total): | 1 |
| Built-in depth: | 70 mm |
| Connectable conductor cross section solid-core: | 1 - 35 mm² |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 6 kA |
| Rated voltage: | 400 V |
| Concurrently switching neutral conductor: | no |
| Pollution degree: | 2 |
| Width in number of modular spacings: | 1 |
| Current limiting class: | 3 |
| Degree of protection (IP): | IP20 |
| Additional equipment possible: | no |
| Explosion-proof: | no |
| Flush-mounted installation: | yes |
| Power loss: | 2.44 W |
