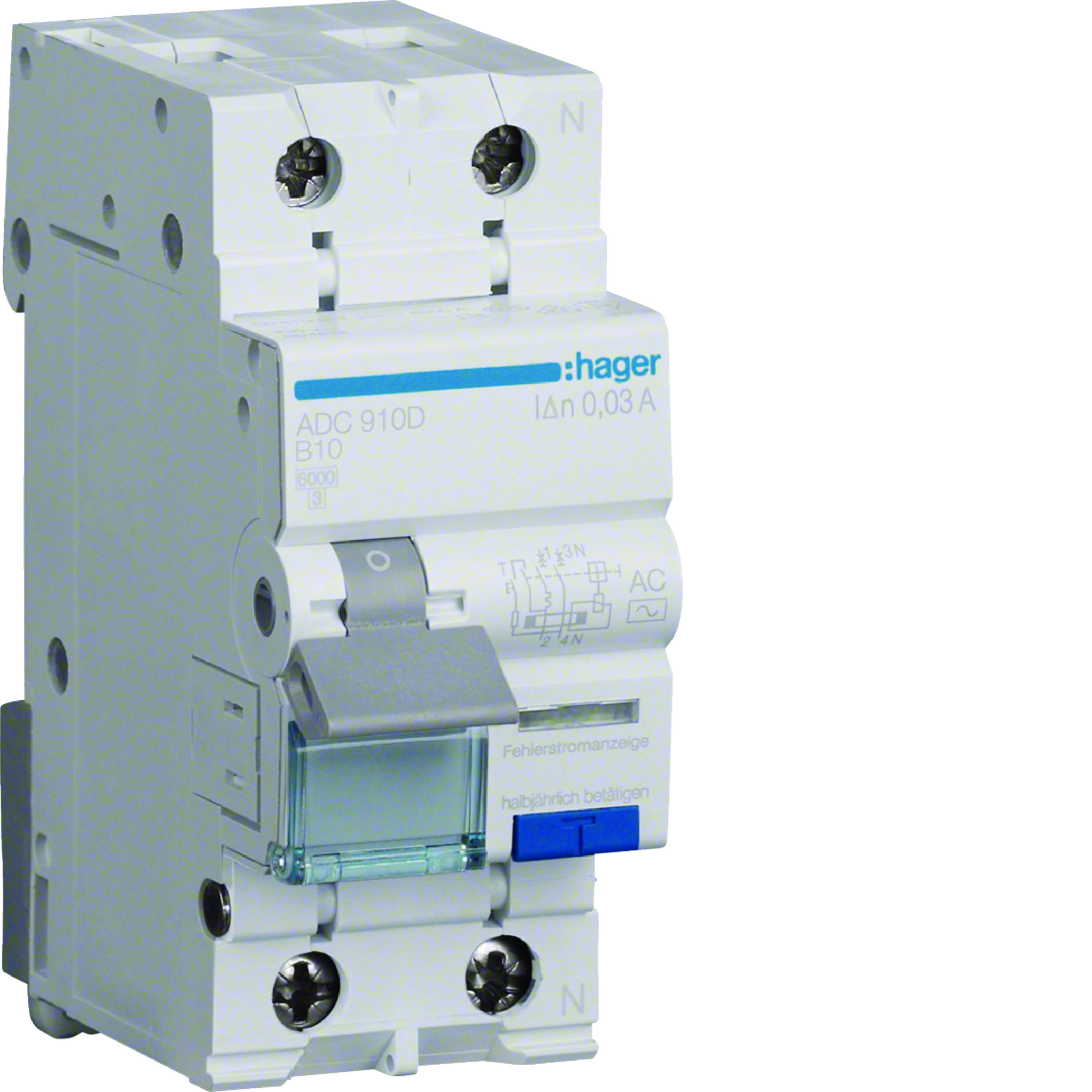

RCBO Wyłącznik różnicowoprądowy z członem nadprądowym 1P+N 6kA B 10A/30mA Typ AC
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | ADC910D |
| GTIN(EAN) | 3250611010791 |
| Price unit | piece |
| Catalog price | 431,98 zł (351,20 zł + 23% VAT) |
| Sale price | from 146,87 zł / szt. (119,41 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 223 g |
| Country of origin | Francja |
| ETIM class: | Earth leakage circuit breaker |
| Rated current: | 10 A |
| With interlocking device: | yes |
| Rated insulation voltage Ui: | 500 V |
| Voltage type: | AC |
| Frequency: | 50 Hz |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Rated fault current: | 0.03 A |
| Ambient temperature during operating: | -25 - 40 °C |
| Leakage current type: | AC |
| Rated short-circuit breaking capacity according to IEC 60947-2: | 6 kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1: | 6 kA |
| Over voltage category: | 3 |
| Disconnection characteristic: | Undelayed |
| Number of protected poles: | 1 |
| Release characteristic: | B |
| Connectable conductor cross section multi-wired: | 1 - 16 mm² |
| Number of poles (total): | 2 |
| Built-in depth: | 68 mm |
| Connectable conductor cross section solid-core: | 1 - 25 mm² |
| Rated voltage: | 240 V |
| Anti-nuisance tripping version: | no |
| Surge current capacity: | 0.25 kA |
| Concurrently switching neutral conductor: | yes |
| Pollution degree: | 2 |
| Width in number of modular spacings: | 2 |
| Current limiting class: | 3 |
| Flush-mounted installation: | yes |
| Degree of protection (IP): | IP2X |
| Power loss: | 3.40 W |
