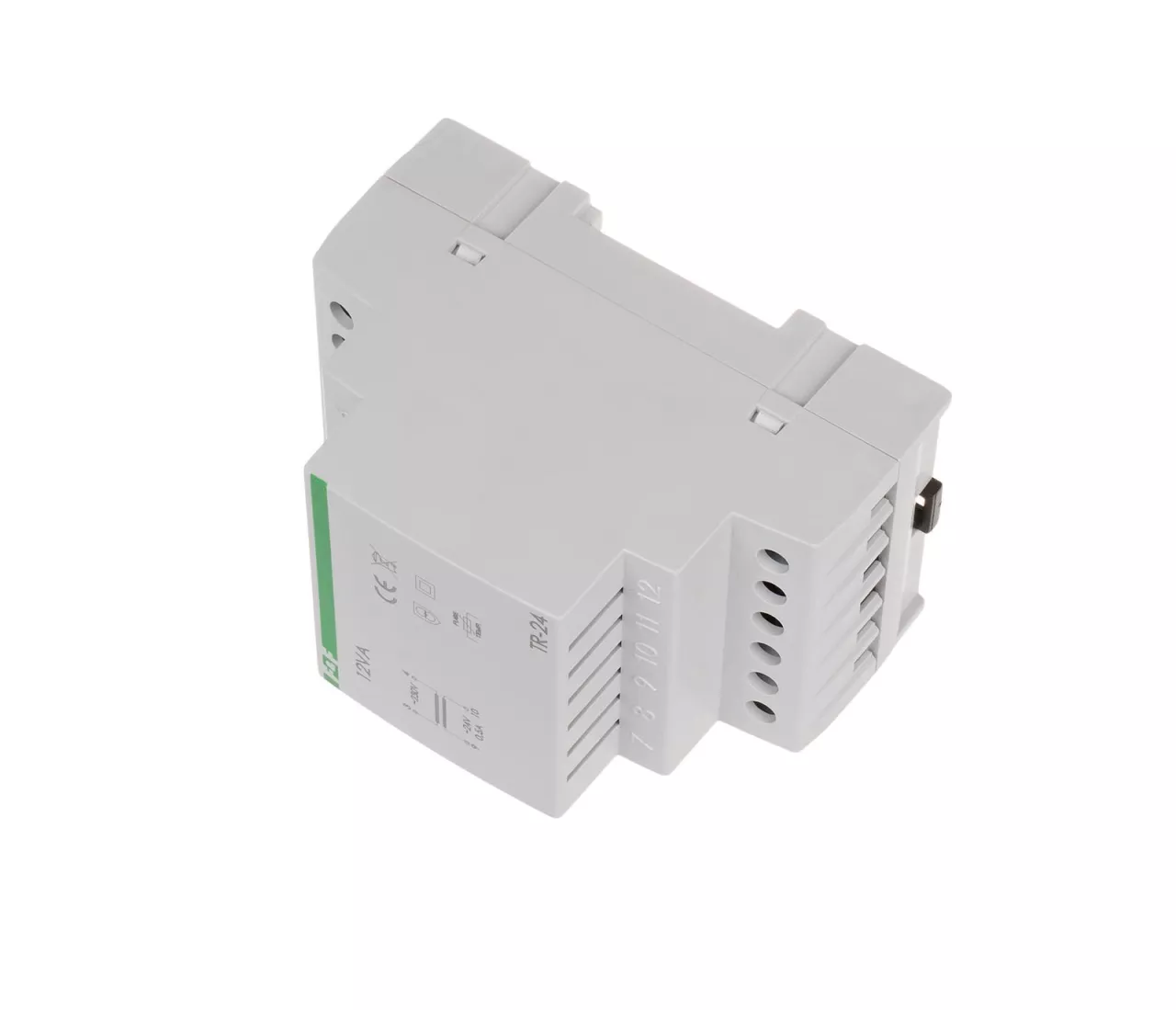

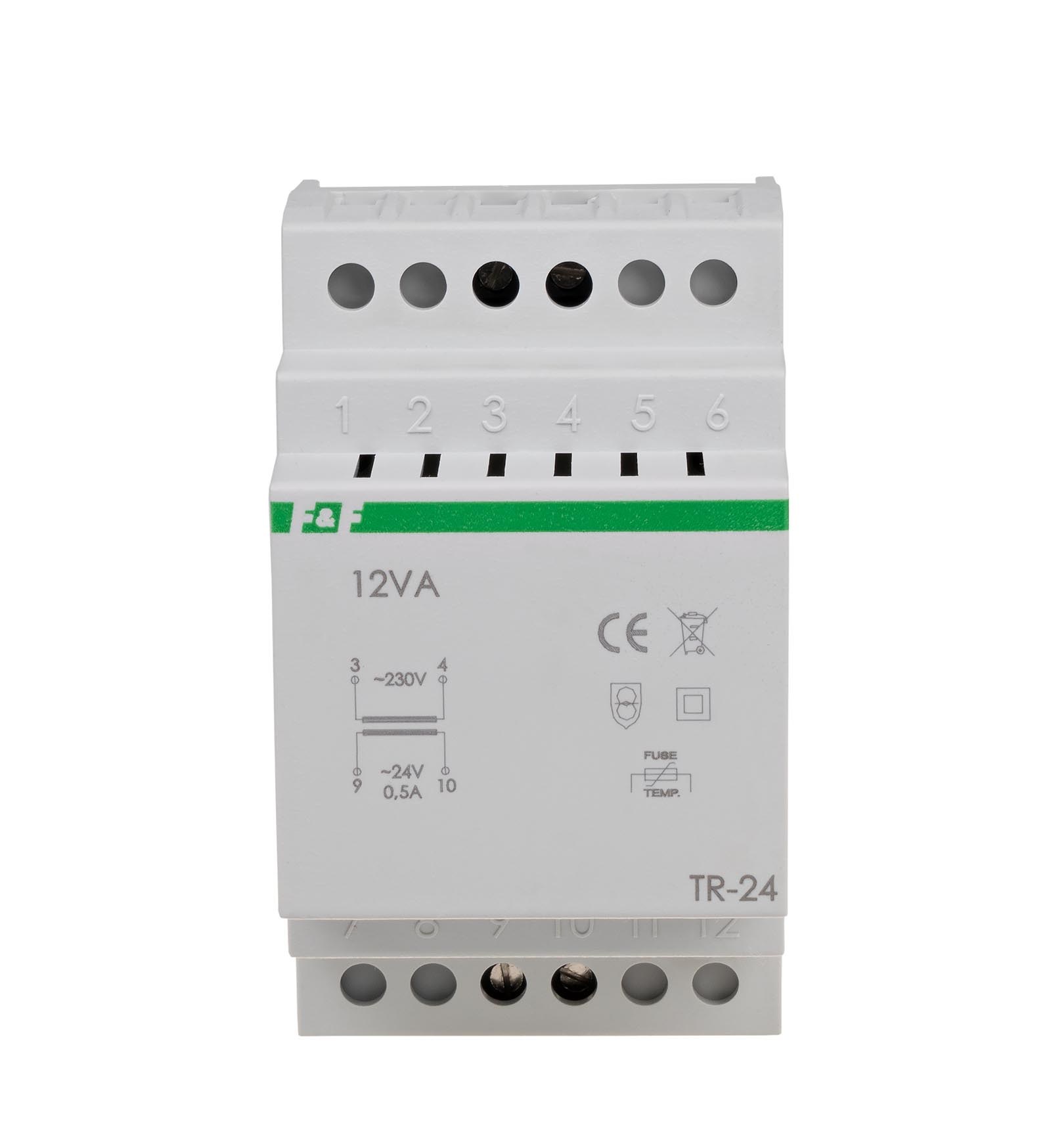

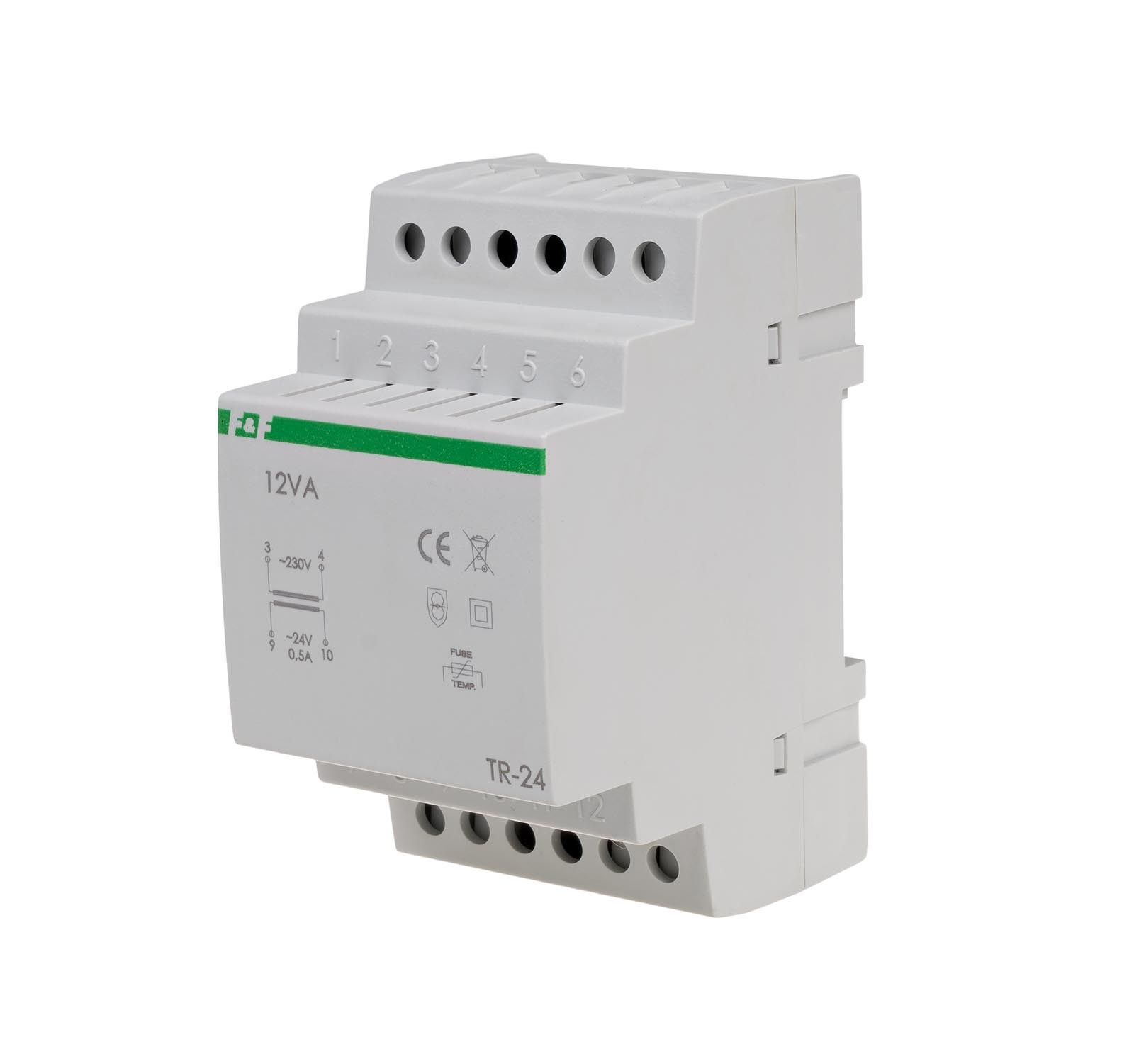

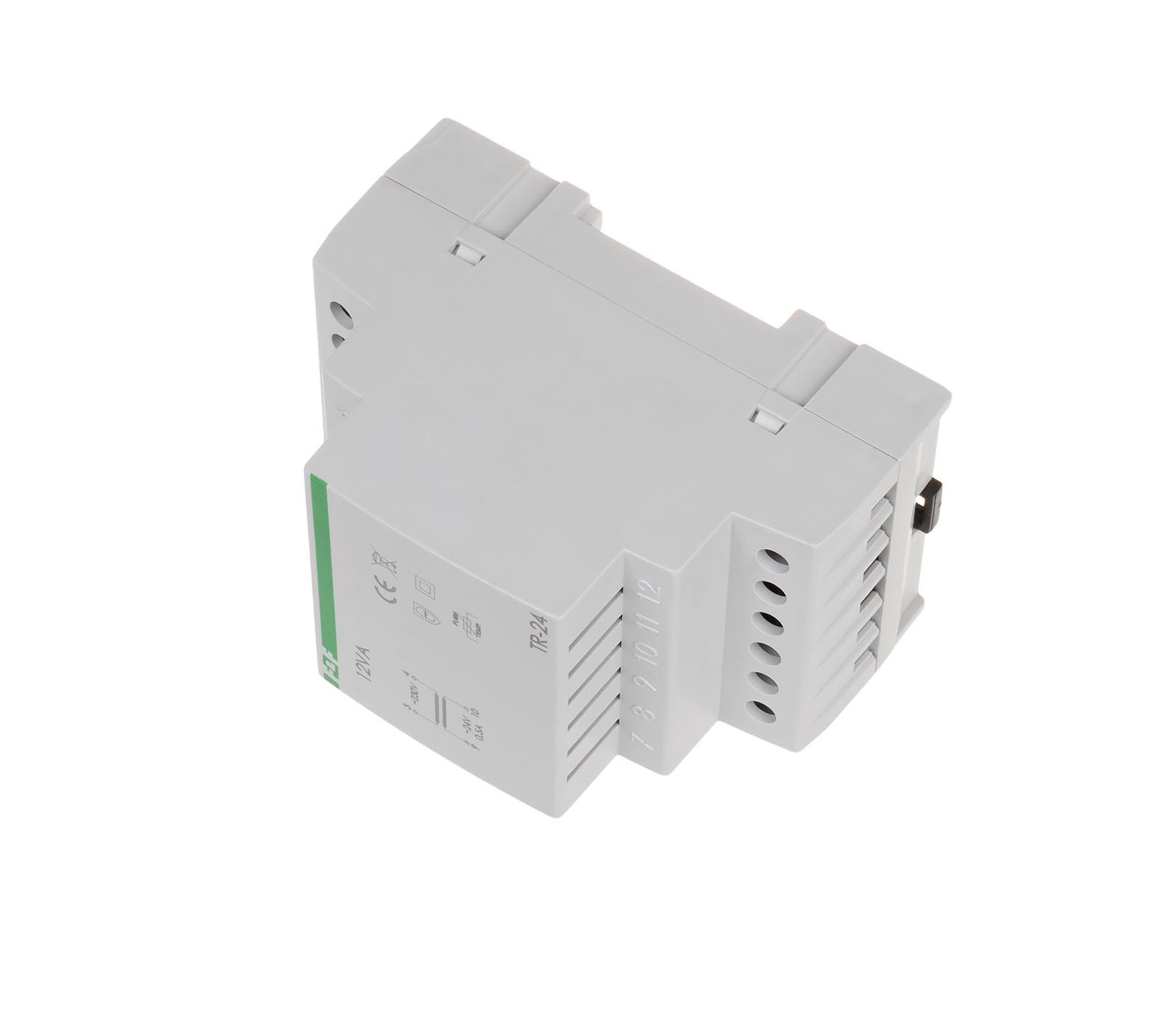

Transformator sieciowy TR-24 zasilanie 230V AC 24V 0,5A
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | TR |
| Symbol | TR-24 |
| GTIN(EAN) | 5908312596172 |
| Price unit | piece |
| Catalog price | 99,63 zł (81,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Typ transformator sieciowy Napięcie zasilania 230 V AC Maksymalny prąd obciążenia 0,5 A Napięcie wyjściowe OUT 24 V DC Moc wyjściowa 12 VA Sprawność 85% Masa 433 g Przyłącze zaciski śrubowe 4,0 mm² Moment dokręcający 0,5 Nm Temperatura pracy -10÷40°C Wymiary 3 moduły (52,5 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 53 g |
| ETIM class: | One-phase control transformer |
| Built as safety transformer: | no |
| Built as isolating transformer: | yes |
| Built as energy saving transformer: | no |
| Primary voltage 1: | 230 - 230 V |
| Secondary voltage 1: | 24 - 24 V |
| Rated apparent power: | 12 VA |
| Short-circuit-proof: | no |
| Width: | 52.5 mm |
| Height: | 90 mm |
| Depth: | 65 mm |
| Degree of protection (IP): | IP20 |
| Ring core: | no |
| Suitable for mounting on PCB: | no |
| Modular version: | yes |
