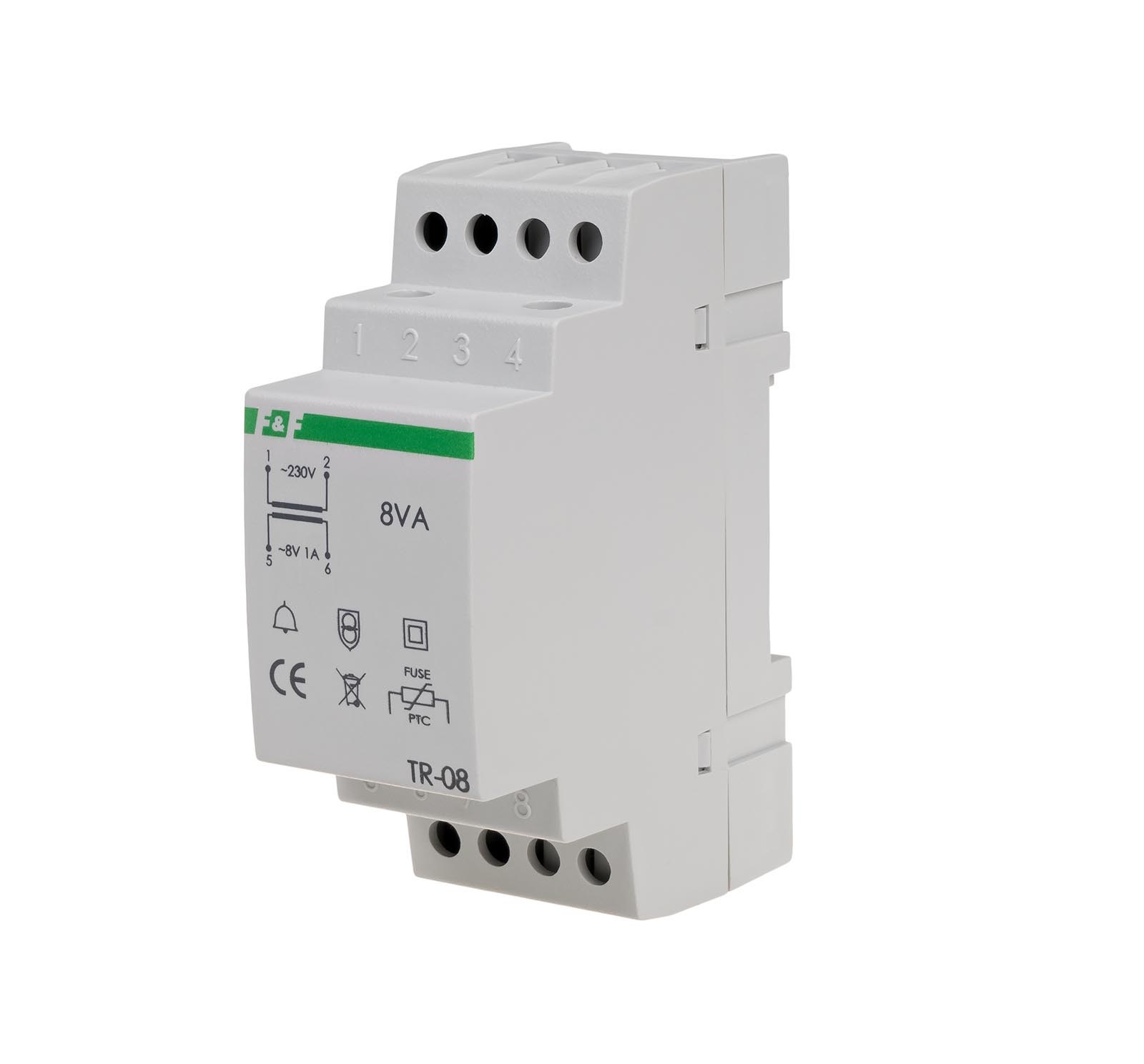

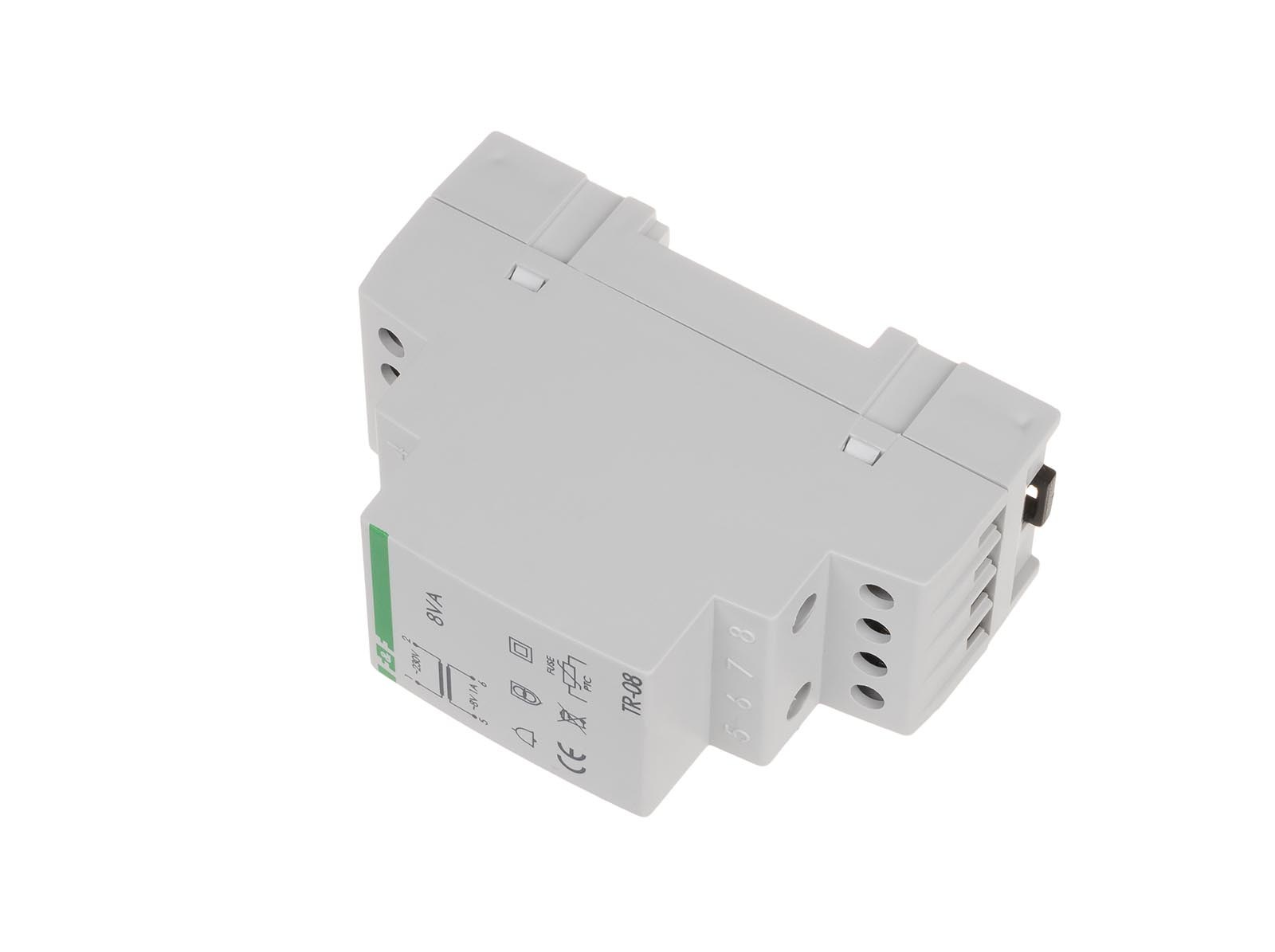

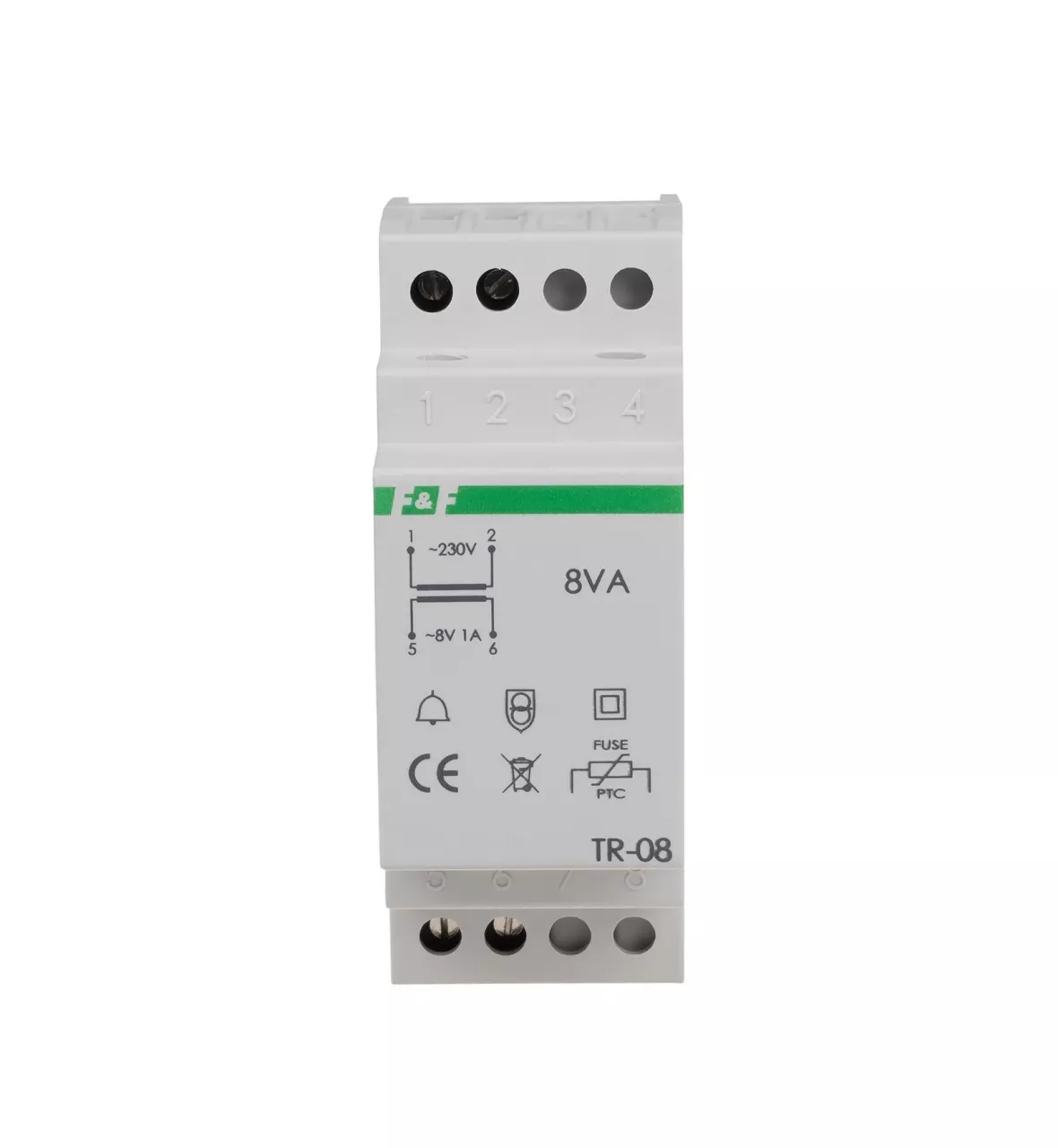

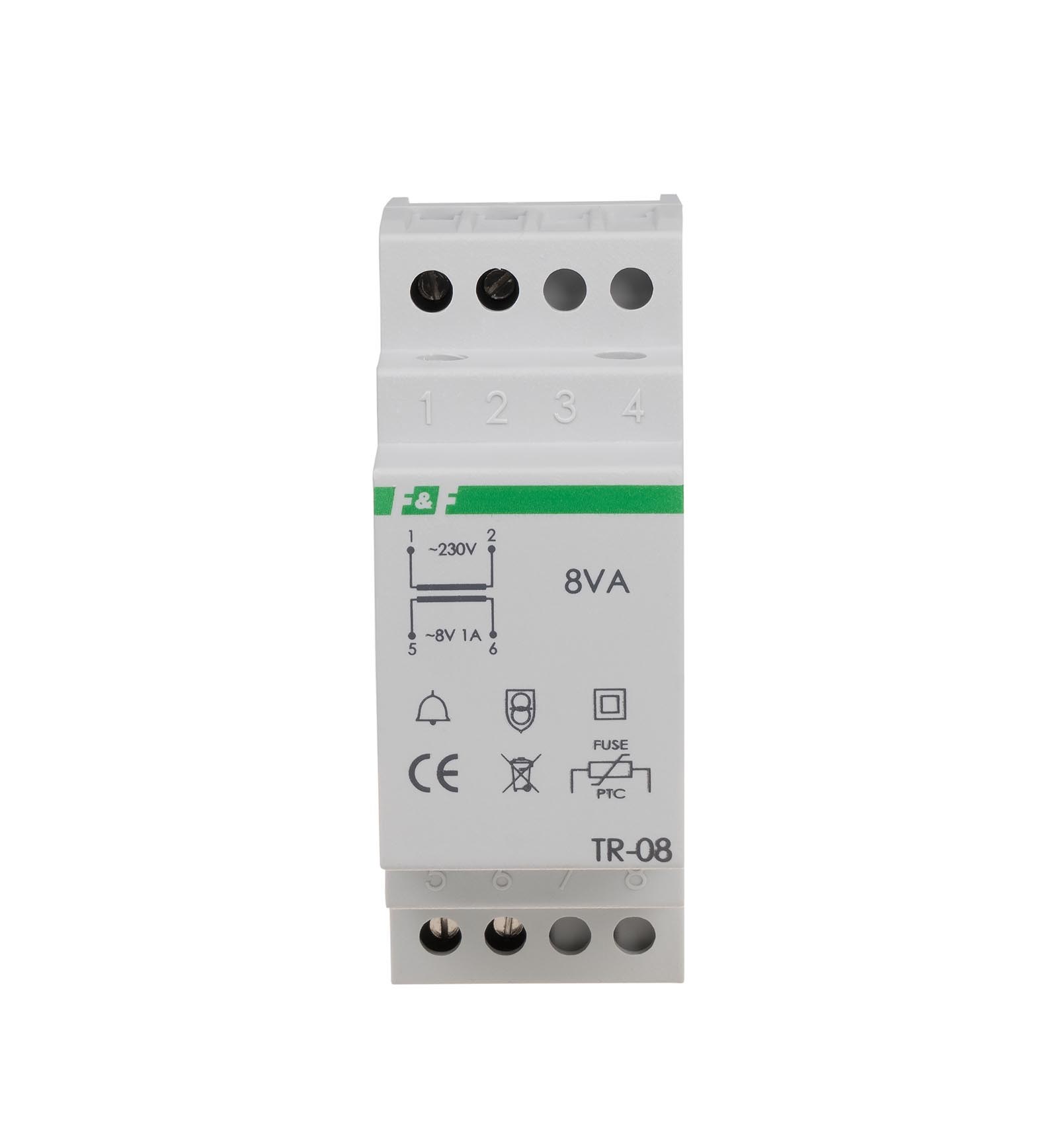

Transformator sieciowy TR-08 zasilanie 230V AC 8V 1A
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | TR |
| Symbol | TR-08 |
| GTIN(EAN) | 5908312591313 |
| Price unit | piece |
| Catalog price | 99,63 zł (81,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja F&F - zegar astronomiczny
Za zakup asortymentu F&F na kwotę 2500 zł., zegar astronomiczny w cenie 3,69 zł.
-
Hager, Kontakt Simon, F&F - Razem na wiosnę - miksuj dowolnie
Kup produkty Hager, Kontakt Simon i F&F za kwotę 2000 zł netto i odbierz bezrękawnik
Description:
Typ transformator sieciowy Napięcie zasilania 230 V AC Maksymalny prąd obciążenia 1 A Napięcie wyjściowe OUT 8 V Moc wyjściowa 8 VA Sprawność 85% Masa 271 g Przyłącze zaciski śrubowe 4,0 mm² Moment dokręcający 0,5 Nm Temperatura pracy -10÷40°C Wymiary 2 moduły (35 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 336 g |
| ETIM class: | One-phase control transformer |
| Built as safety transformer: | no |
| Built as isolating transformer: | yes |
| Built as energy saving transformer: | no |
| Primary voltage 1: | 230 - 230 V |
| Secondary voltage 1: | 8 - 8 V |
| Rated apparent power: | 8 VA |
| Short-circuit-proof: | no |
| Width: | 35 mm |
| Height: | 90 mm |
| Depth: | 65 mm |
| Degree of protection (IP): | IP20 |
| Ring core: | no |
| Suitable for mounting on PCB: | no |
| Modular version: | yes |
