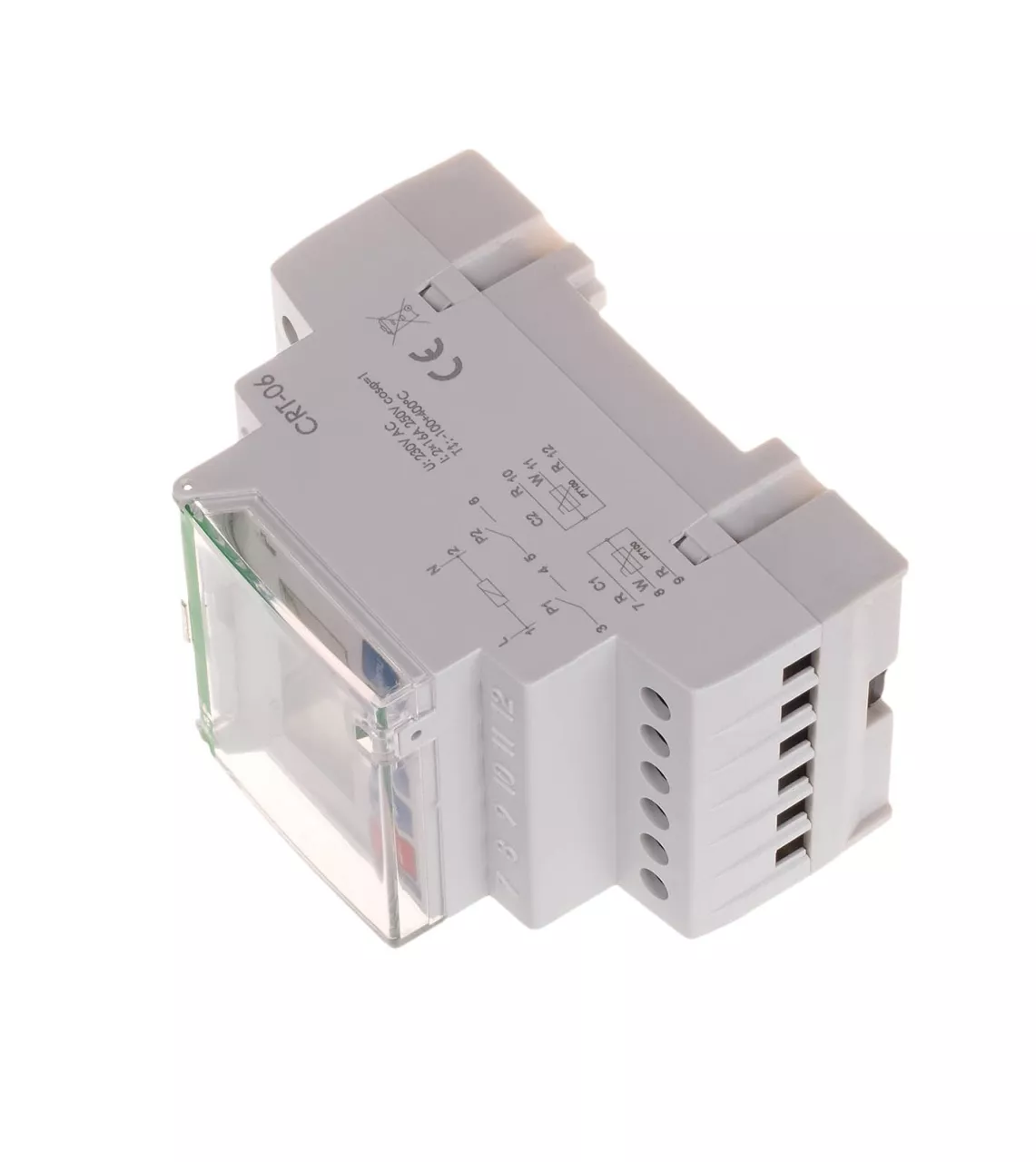

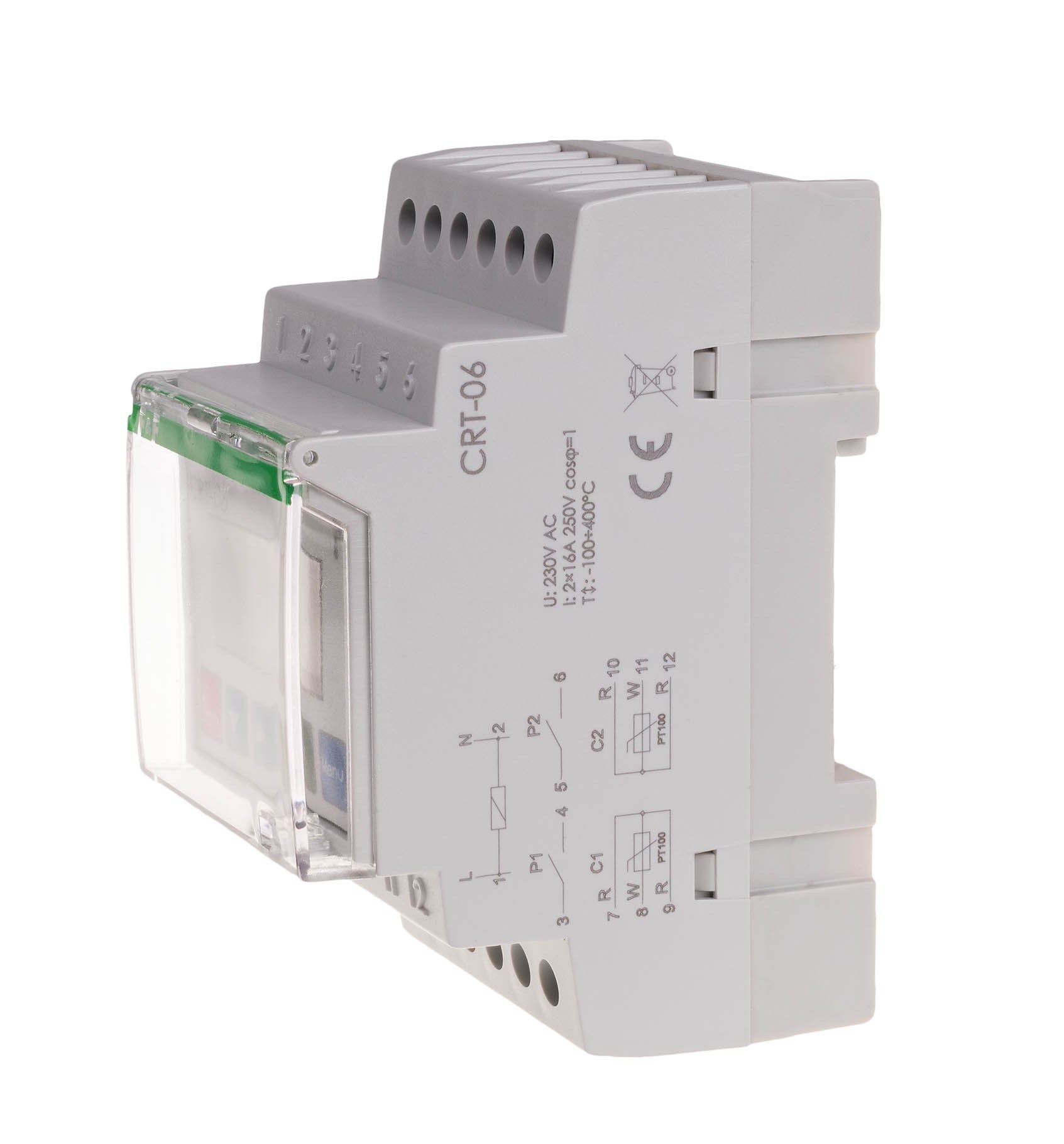

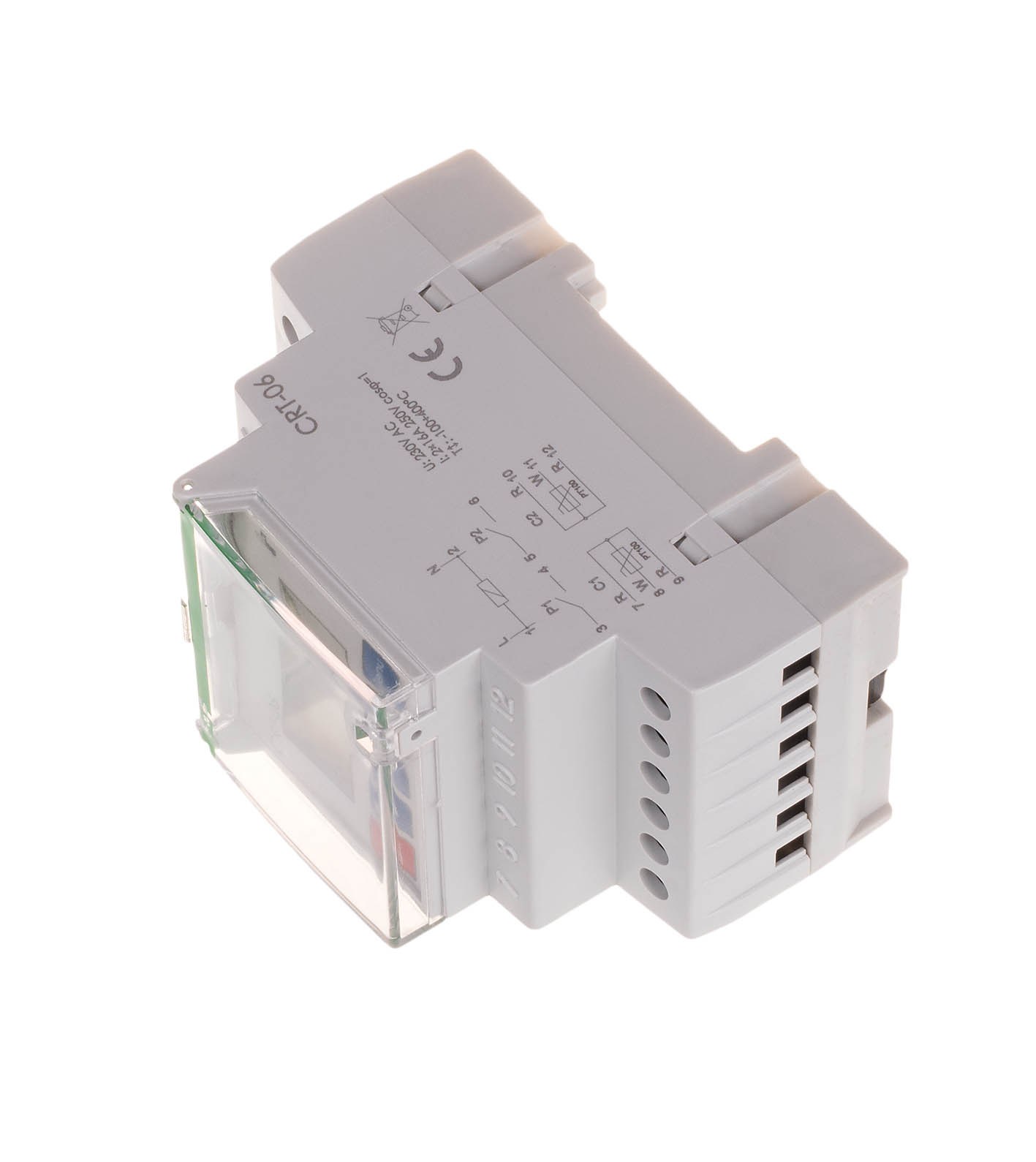

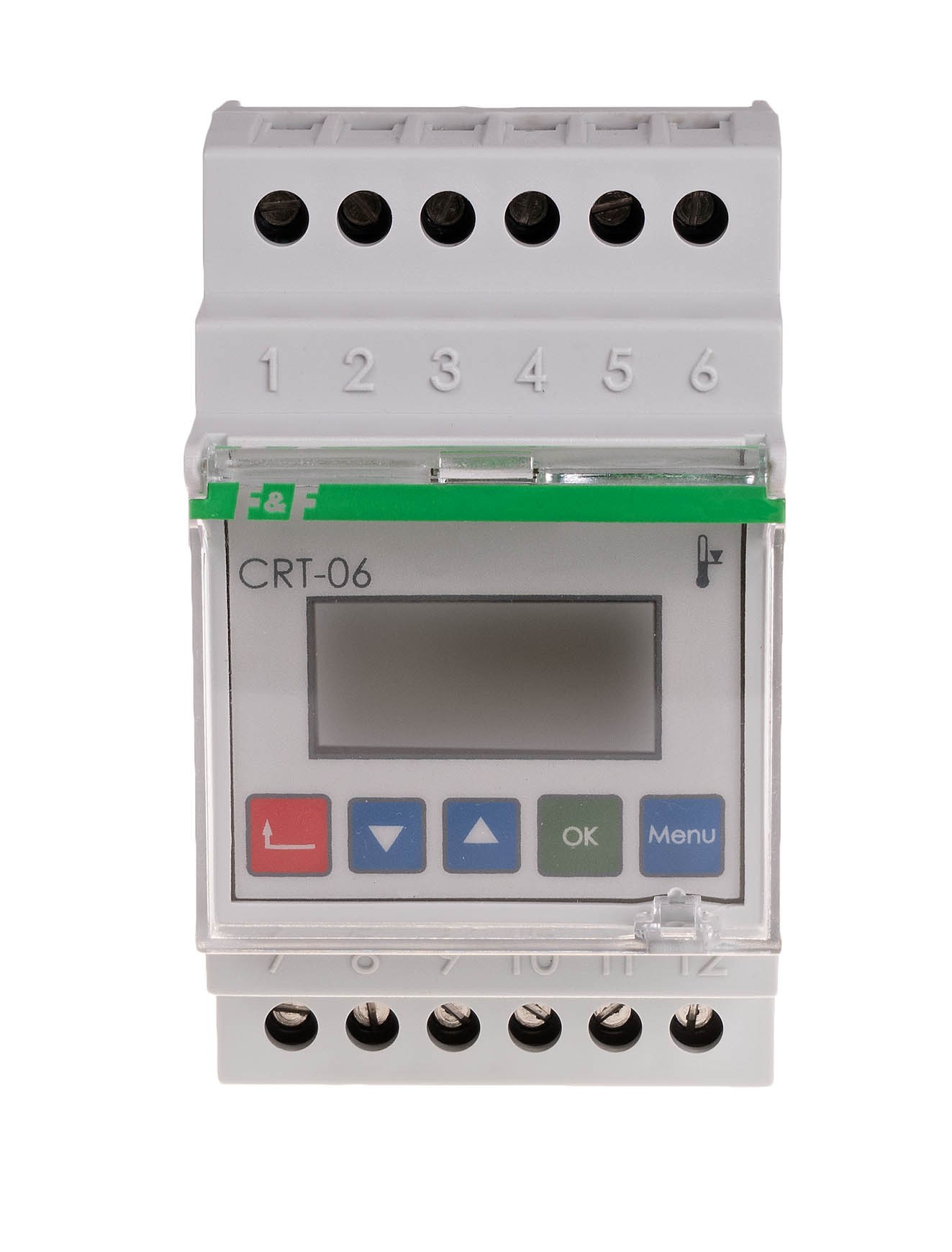

Regulator temperatury CRT-06, bez sondy temp.
Information | Value |
---|---|
Supplier | F&F Filipowski Spółka Komandytowa |
Series | RT |
Symbol | CRT-06 |
GTIN(EAN) | 5908312592716 |
Price unit | piece |
Catalog price | 538,74 zł (438,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 230 V AC Element wykonawczy 2 × przekaźnik Maksymalny prąd obciążenia 2 × 16 A Konfiguracja styków 2 × NO Separacja styku TAK Zakres regulacji temperatury -100÷400°C Histereza - regulowana 0÷100°C Dokładność nastawy 1°C Sonda temperatury 2 x RT56 (PT-100) Korekcja wzorcowa ±20°C Czas zwłoki przełączenia - regulowany 0÷45 min. Gradient - regulowany 4°C /1s÷6°C/1min. Częstotliwość próbkowania - regulowana 1÷120 próbek/1min. Przyłącze zaciski śrubowe 4,0 mm² Moment dokręcający 0,5 Nm Pobór mocy 1,5 W Temperatura pracy -20÷40°C Wymiary 3 moduły (52,5 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
Information | Value |
---|---|
Gross weight: | 165 g |
ETIM class: | Temperature controller for distribution board |
Model: | Digital |
Sensor type: | Remote sensor |
Rated voltage: | 230 - 230 V |
Rated frequency: | 50 - 50 Hz |
Number of channels: | 2 |
Text guidance in display: | yes |
24 h program: | yes |
Weekly program: | yes |
Number of memory locations: | 1 |
Number of basic programs standard: | 10 |
Holiday program: | no |
Input for time program: | no |
Adjustment range set-back: | 0 - 100 °C |
Autonomy: | 0 h |
Automatic switching summer-/winter time: | yes |
Operation mode switch: | yes |
Switching preselection: | no |
Contact type: | Change-over contact |
Nominal switching current at 250 V, potential free: | 16 A |
Nominal switching current at 230 V, not potential free: | 16 A |
Degree of protection (IP): | IP20 |
Width in number of modular spacings: | 3 |
Assembly depth: | 69 mm |
