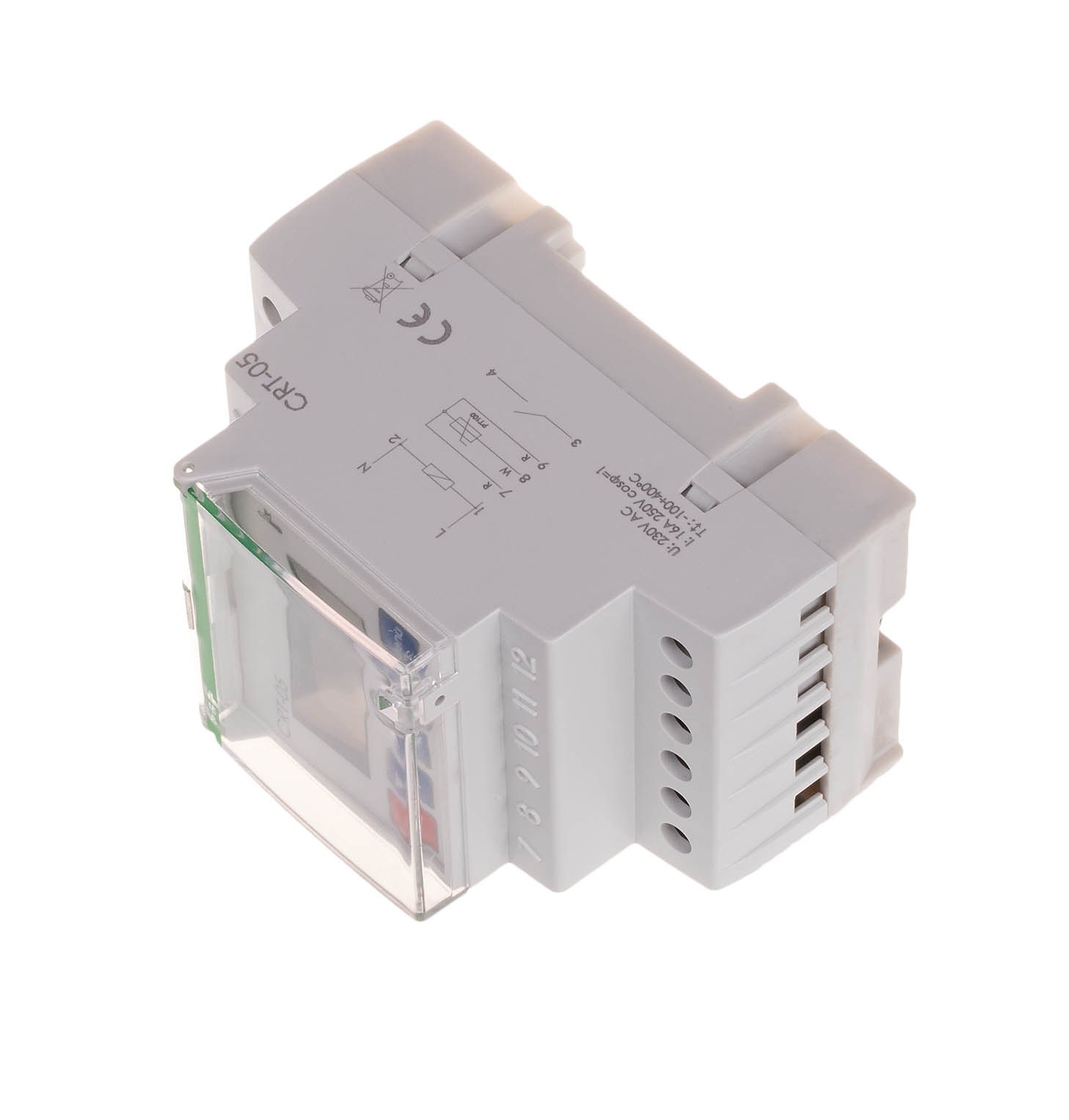

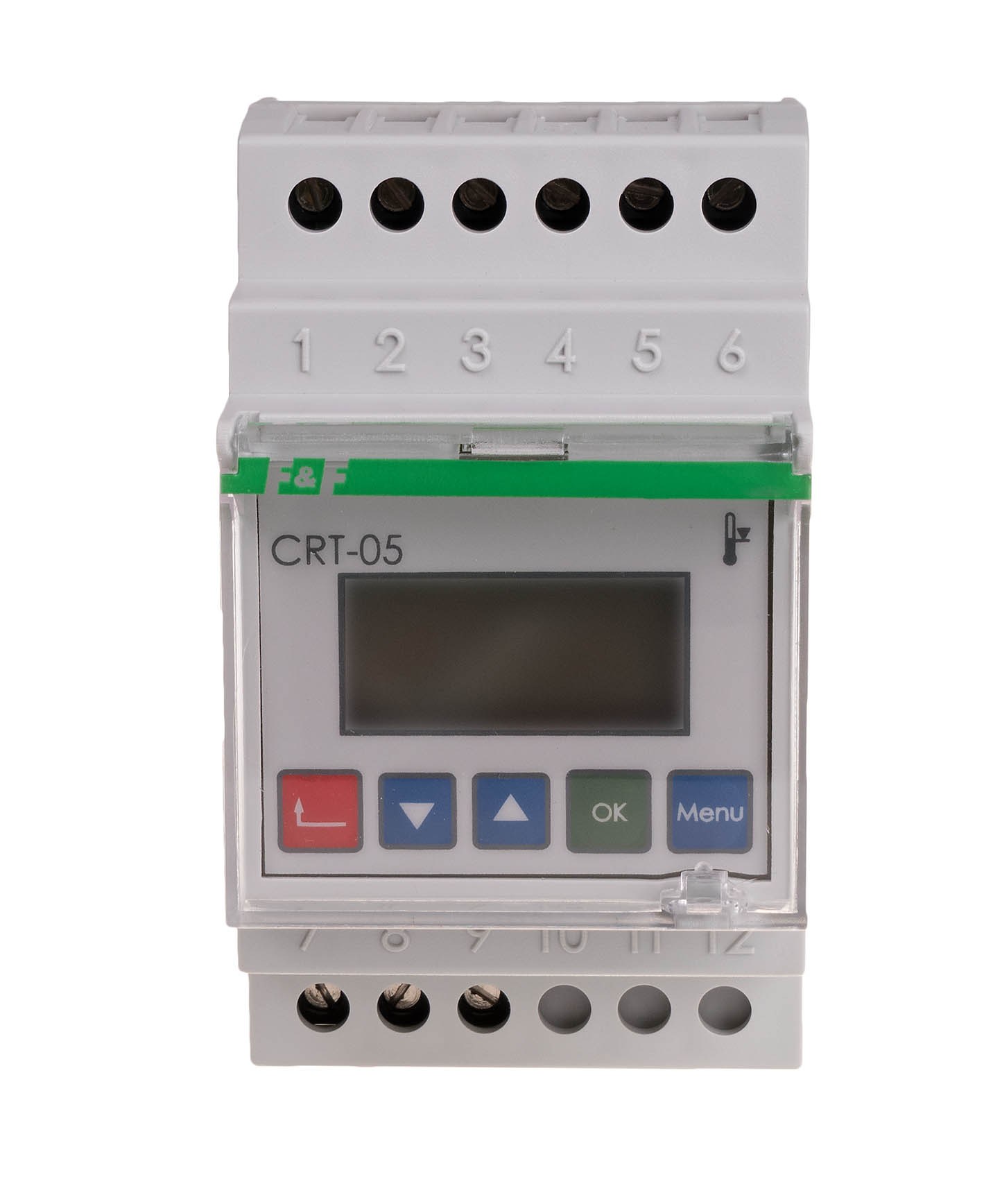

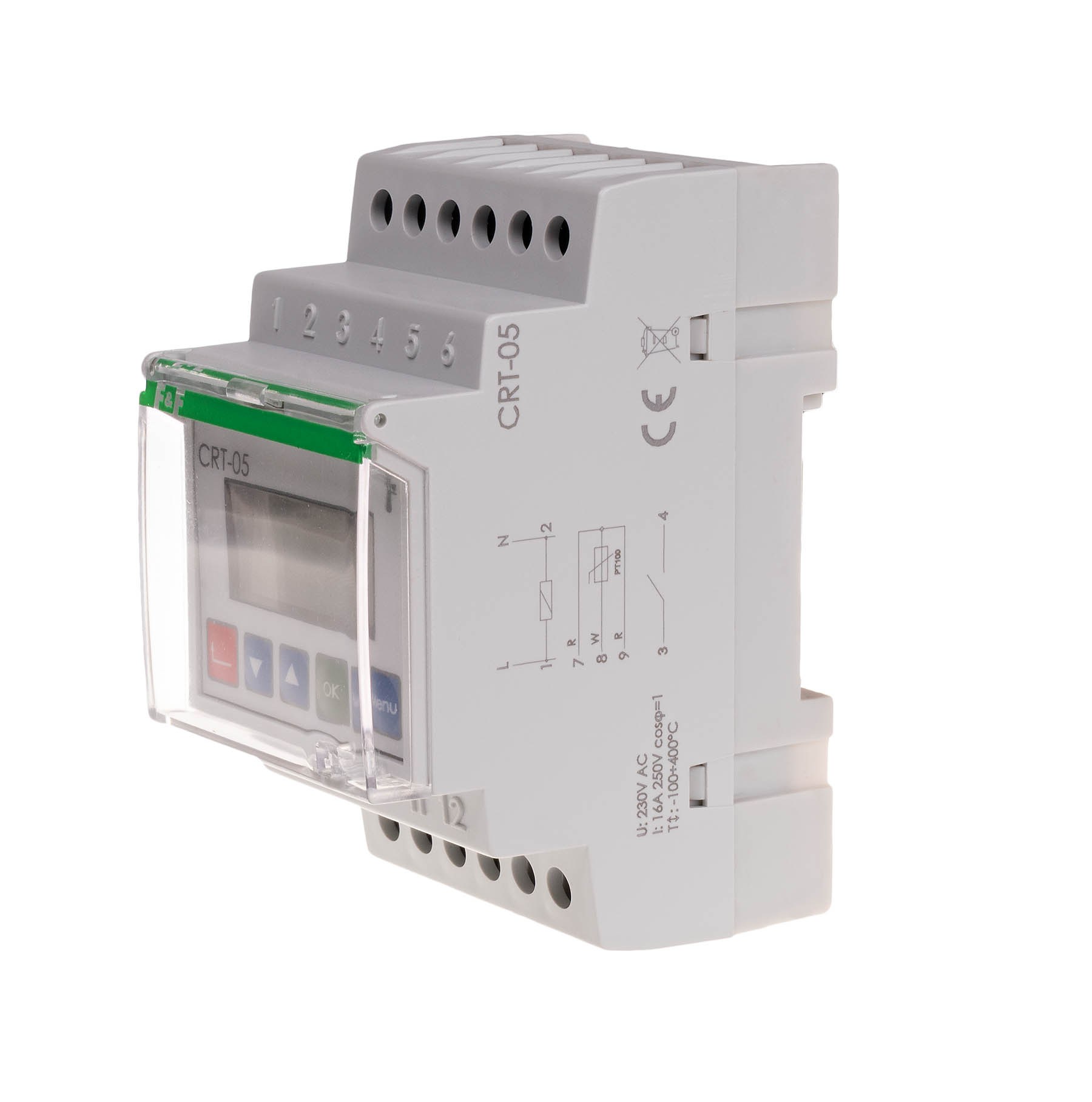

Regulator temperatury CRT-05, bez sondy temp.
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | RT |
| Symbol | CRT-05 |
| GTIN(EAN) | 5908312592662 |
| Price unit | piece |
| Catalog price | 420,66 zł (342,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 230 V AC Element wykonawczy przekaźnik Maksymalny prąd obciążenia 16 A Konfiguracja styków 1 × NO/NC Separacja styku TAK Zakres regulacji temperatury -100÷400°C Histereza - regulowana 0÷10°C Dokładność nastawy 1°C Sonda temperatury RT56 (PT-100) Korekcja wzorcowa ±20°C Gradient 4°C /1s Przyłącze zaciski śrubowe 4,0 mm² Moment dokręcający 0,5 Nm Pobór mocy 1,5 W Temperatura pracy -20÷40°C Wymiary 3 moduły (52,5 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 147 g |
| ETIM class: | Temperature controller for distribution board |
| Model: | Digital |
| Sensor type: | Remote sensor |
| Rated voltage: | 230 - 230 V |
| Rated frequency: | 50 - 50 Hz |
| Number of channels: | 1 |
| Text guidance in display: | yes |
| 24 h program: | yes |
| Weekly program: | yes |
| Number of memory locations: | 1 |
| Holiday program: | no |
| Input for time program: | no |
| Adjustment range set-back: | 0 - 100 °C |
| Autonomy: | 0 h |
| Automatic switching summer-/winter time: | yes |
| Operation mode switch: | yes |
| Switching preselection: | no |
| Contact type: | Change-over contact |
| Nominal switching current at 250 V, potential free: | 16 A |
| Nominal switching current at 230 V, not potential free: | 16 A |
| Degree of protection (IP): | IP20 |
| Width in number of modular spacings: | 3 |
| Assembly depth: | 69 mm |
