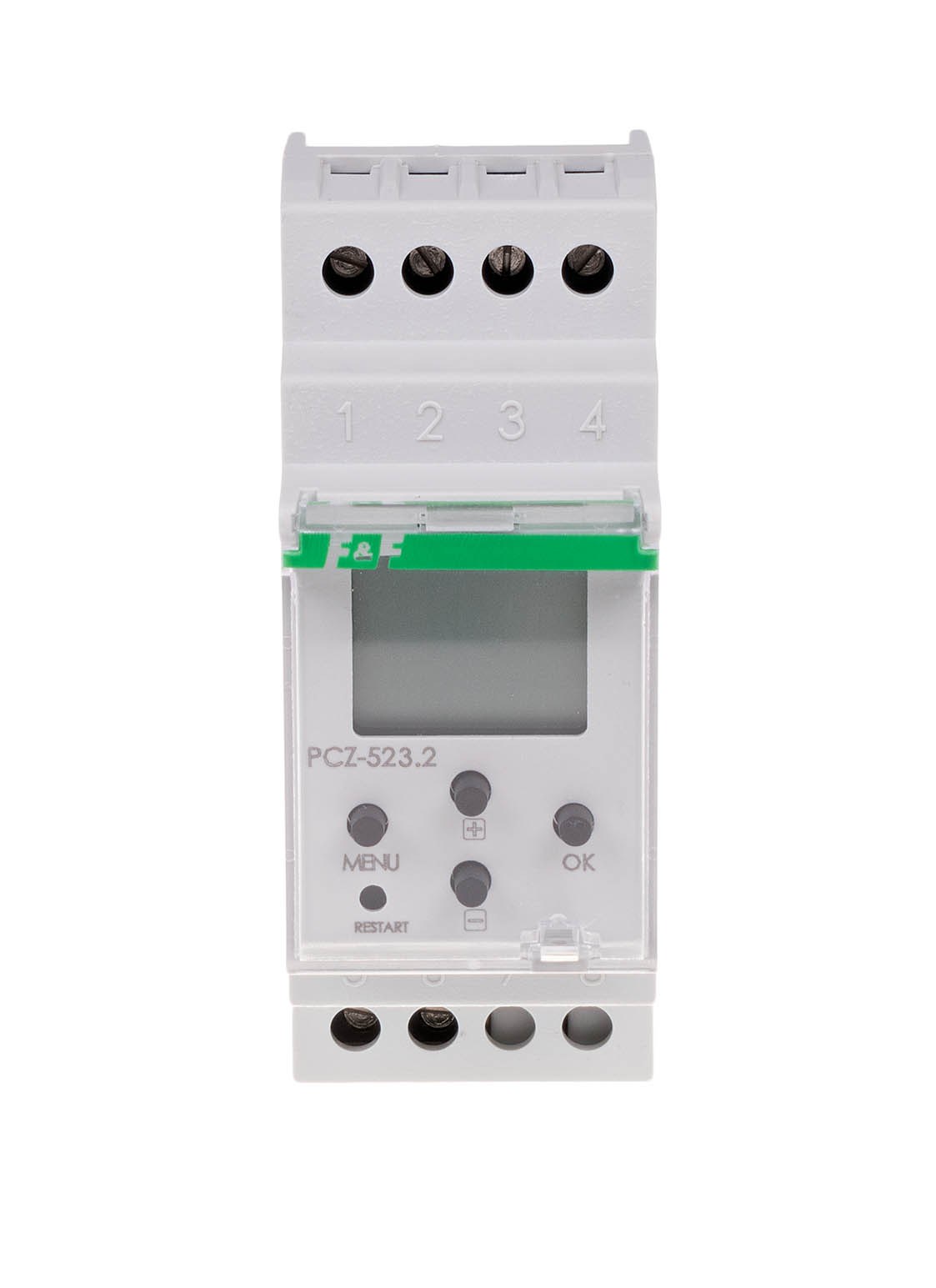

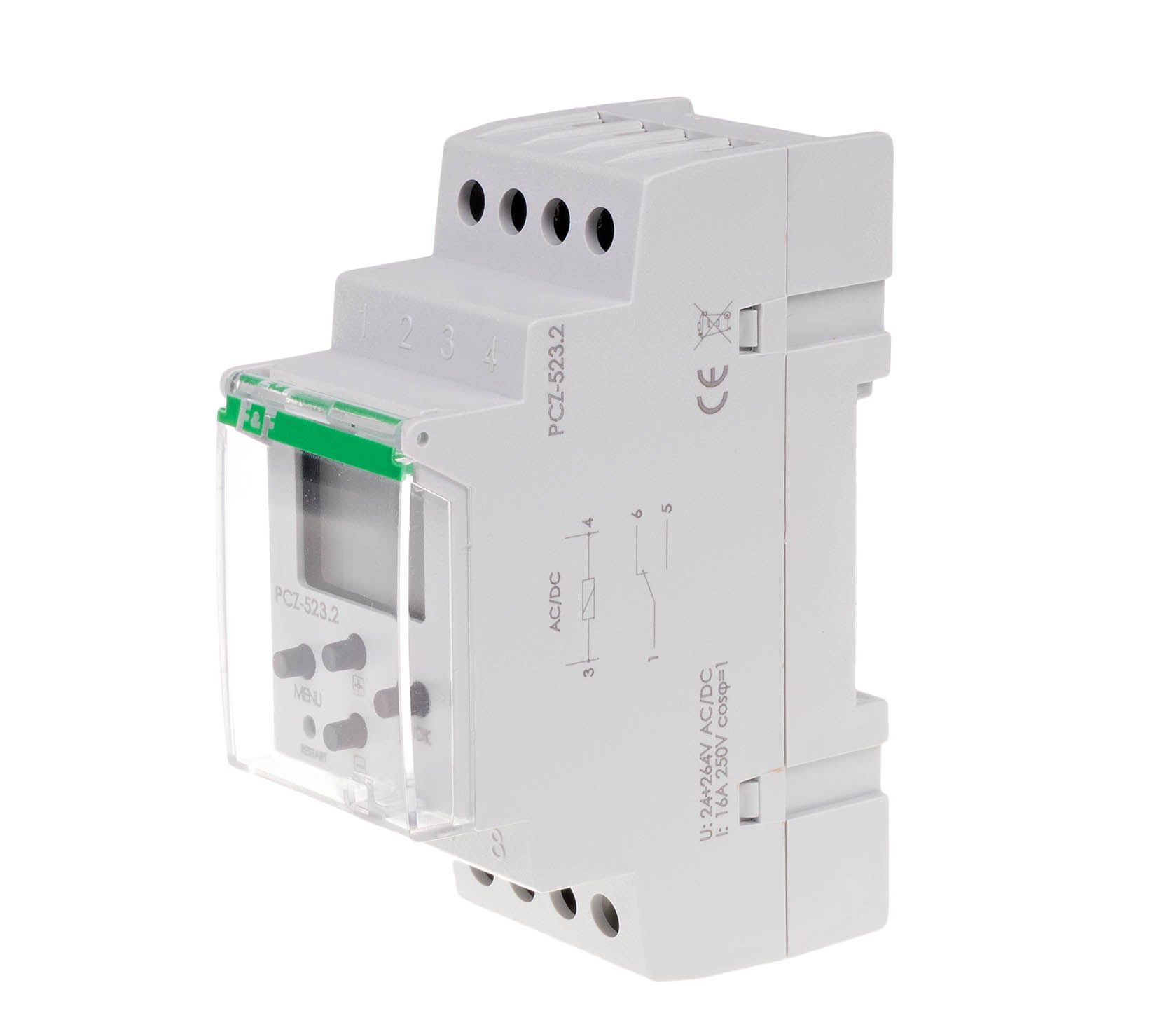

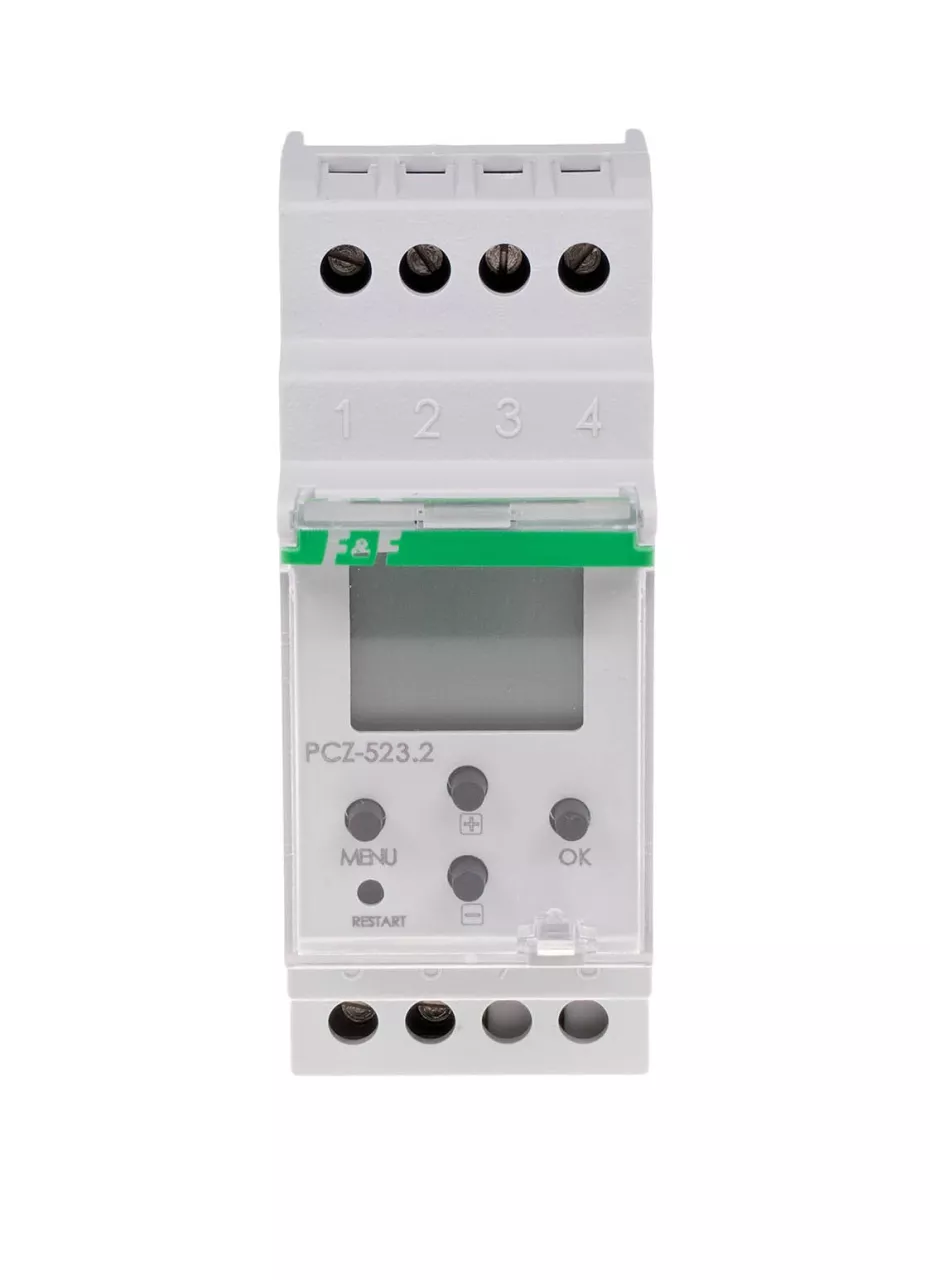

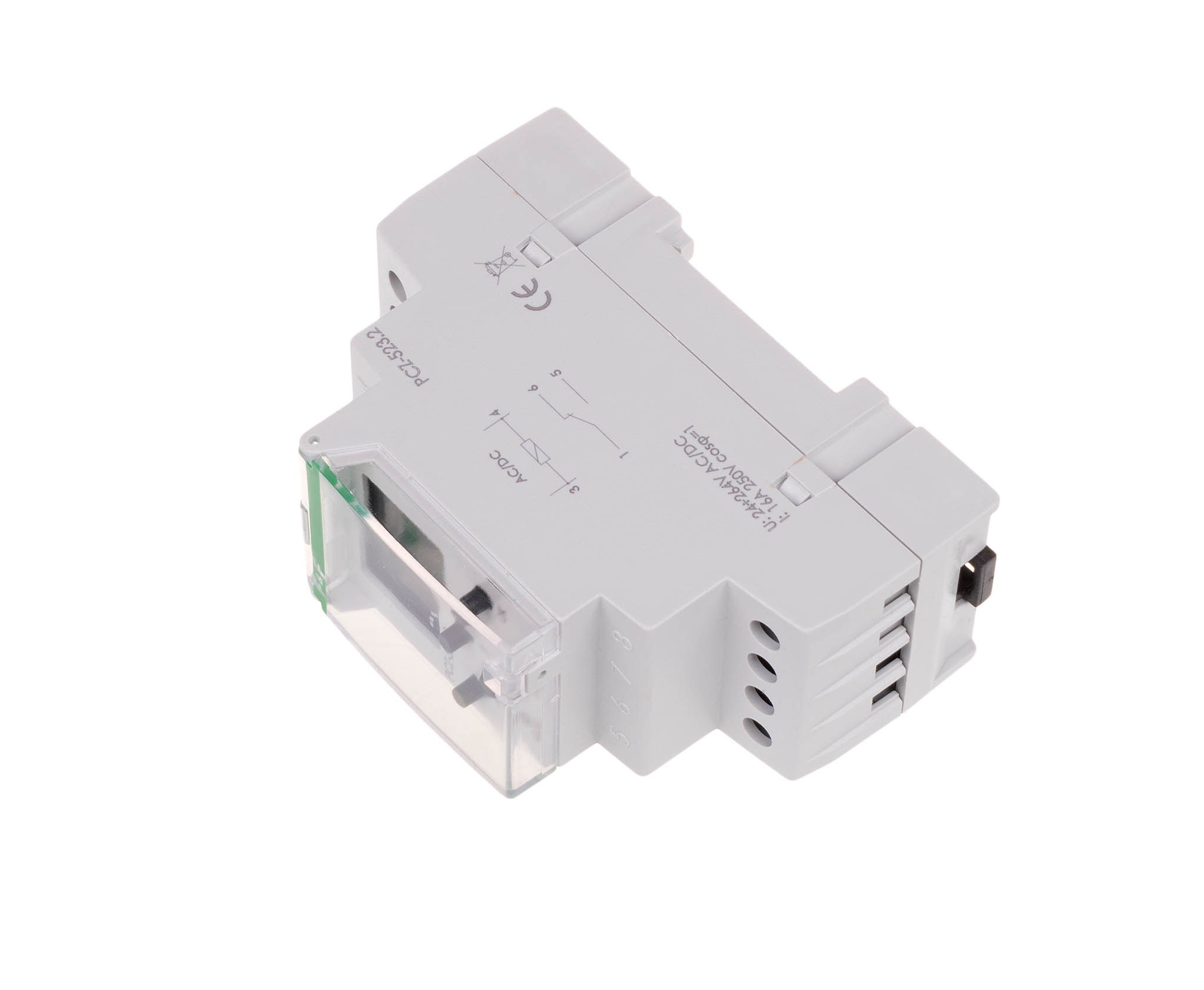

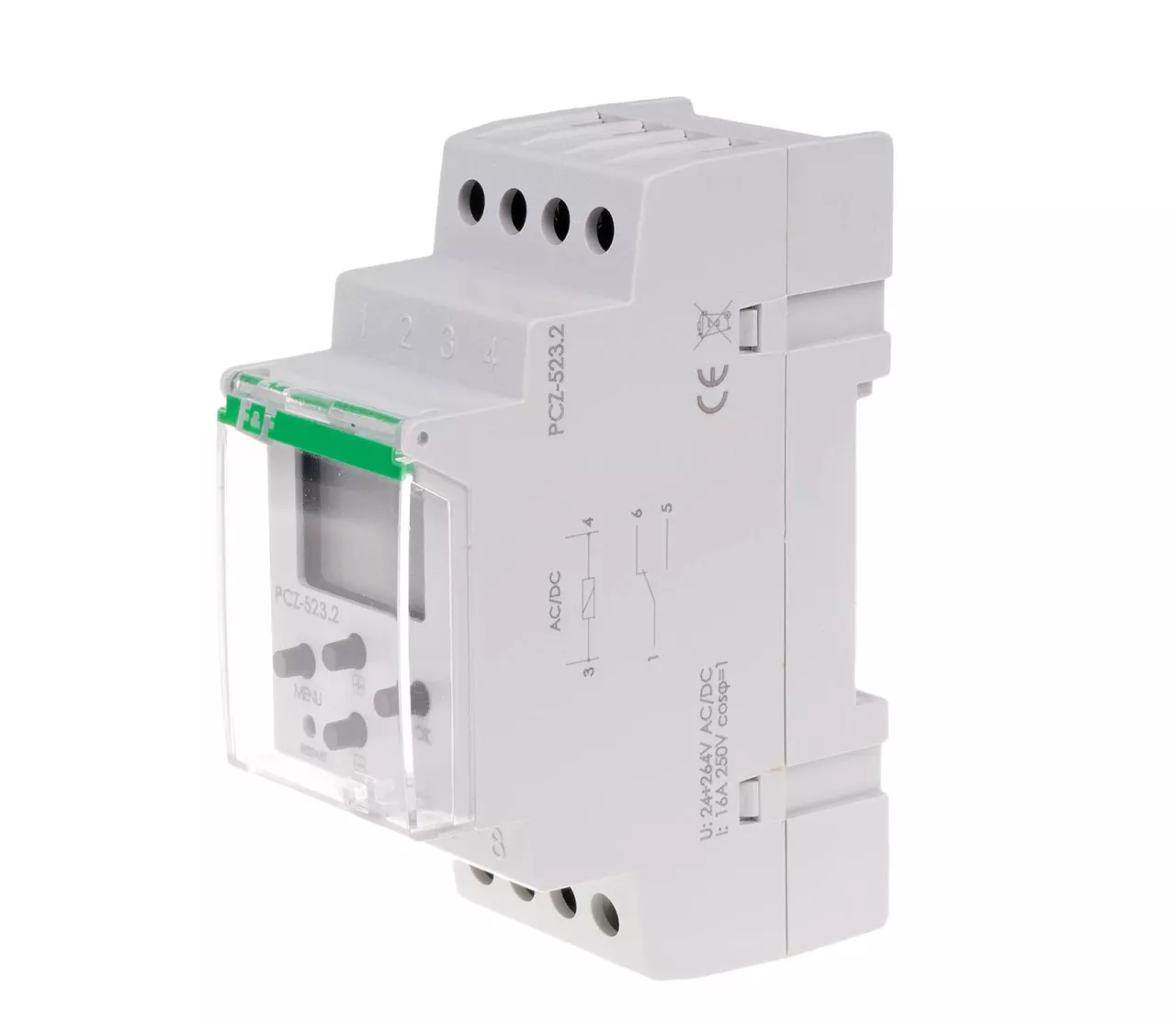

Zegar sterujący programowalny impulsowy (szkolny) - 2 linie programowe
Information | Value |
---|---|
Supplier | F&F Filipowski Spółka Komandytowa |
Series | PCZ |
Symbol | PCZ-523 |
GTIN(EAN) | 5908312594109 |
Price unit | piece |
Catalog price | 338,25 zł (275,00 zł + 23% VAT) |
Sale price | from 147,60 zł / szt. (120,00 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Typ programowalny szkolny Napięcie zasilania 24÷264 V AC/DC Element wykonawczy przekaźnik Maksymalny prąd obciążenia 16 A Konfiguracja styków 1 × NO/NC Separacja styku TAK Zakres nastawy czasu trzymania 1s÷99min59s Czas podtrzymania pracy zegara 6 lat Typ baterii 2032 (litowa) Dokładność wskazań zegara 1 s Błąd czasu ±1 s / 24 h Dokładność nastawy czasu programu 1 min. Liczba komórek pamięci programu 120 rozkazów Czas podtrzymania pracy wyświetlacza brak Dokładność nastawy czasu trzymania 1 s Przyłącze zaciski śrubowe 4,0 mm² Moment dokręcający 0,5 Nm Pobór mocy 1,5 W Temperatura pracy -20÷50°C Wymiary 2 moduły (35 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
Information | Value |
---|---|
Gross weight: | 112 g |
ETIM class: | Digital time switch for distribution board |
Mounting method: | DIN rail |
Number of channels: | 1 |
Supply voltage: | 24 - 264 V |
Voltage type (supply voltage): | AC/DC |
Frequency supply voltage: | 50 - 50 Hz |
Autonomy in hours: | 52560 |
Autonomy in years: | 6 |
Accuracy per day: | 1 s |
Text guidance in display: | no |
External programming: | yes |
With memory card: | no |
60 min program: | no |
24 h program: | no |
Weekly program: | yes |
Annual program: | yes |
Holiday program: | yes |
Impulse program: | yes |
Cycle program: | yes |
Astro program: | no |
Random program: | no |
Hour meter: | no |
Mains synchronous: | no |
Quartz controlled: | yes |
Radio-controlled: | yes |
Radio-controlled (DCF77): | no |
GPS (global positioning system): | no |
Contact type: | Change-over contact (NO/NC) |
Shortest switching time channel 1: | 1 min |
Shortest switching time channel 2: | 1 min |
Number of memory locations: | 250 |
Automatic switching summer-/winter time: | yes |
Suitable for manual operation: | yes |
External pushbutton input: | yes |
Switching preselection: | no |
Nominal switching current at 250 V AC: | 16 A |
Degree of protection (IP): | IP20 |
Width in number of modular spacings: | 2 |
