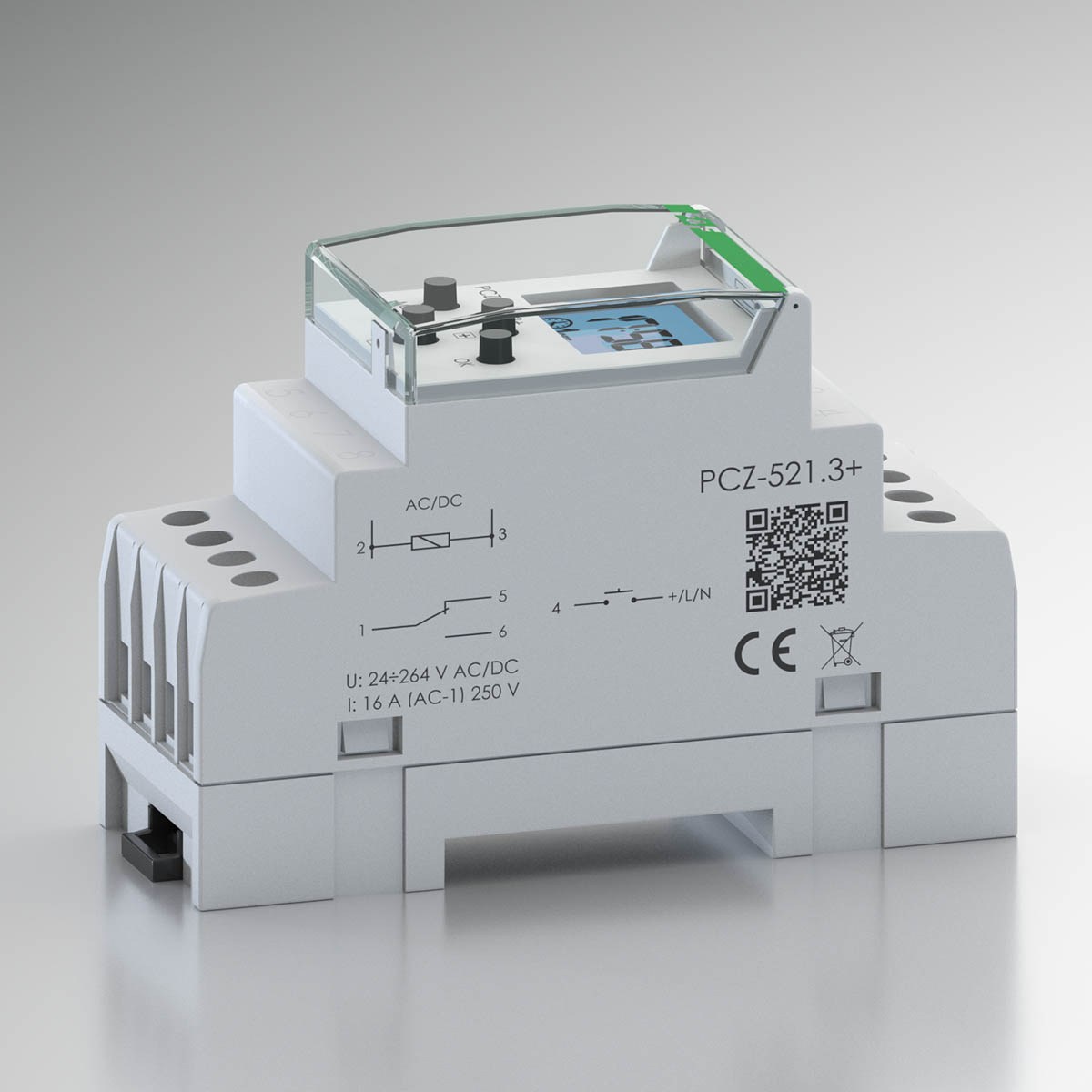

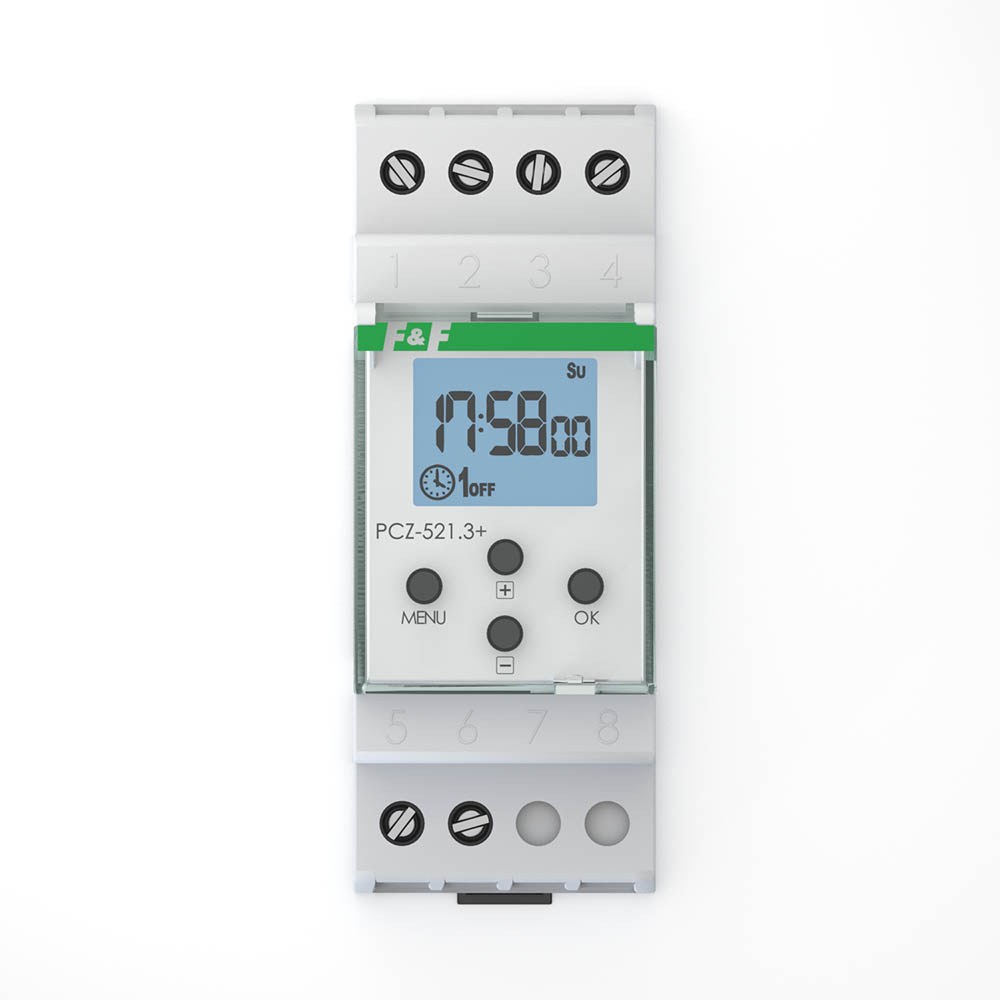

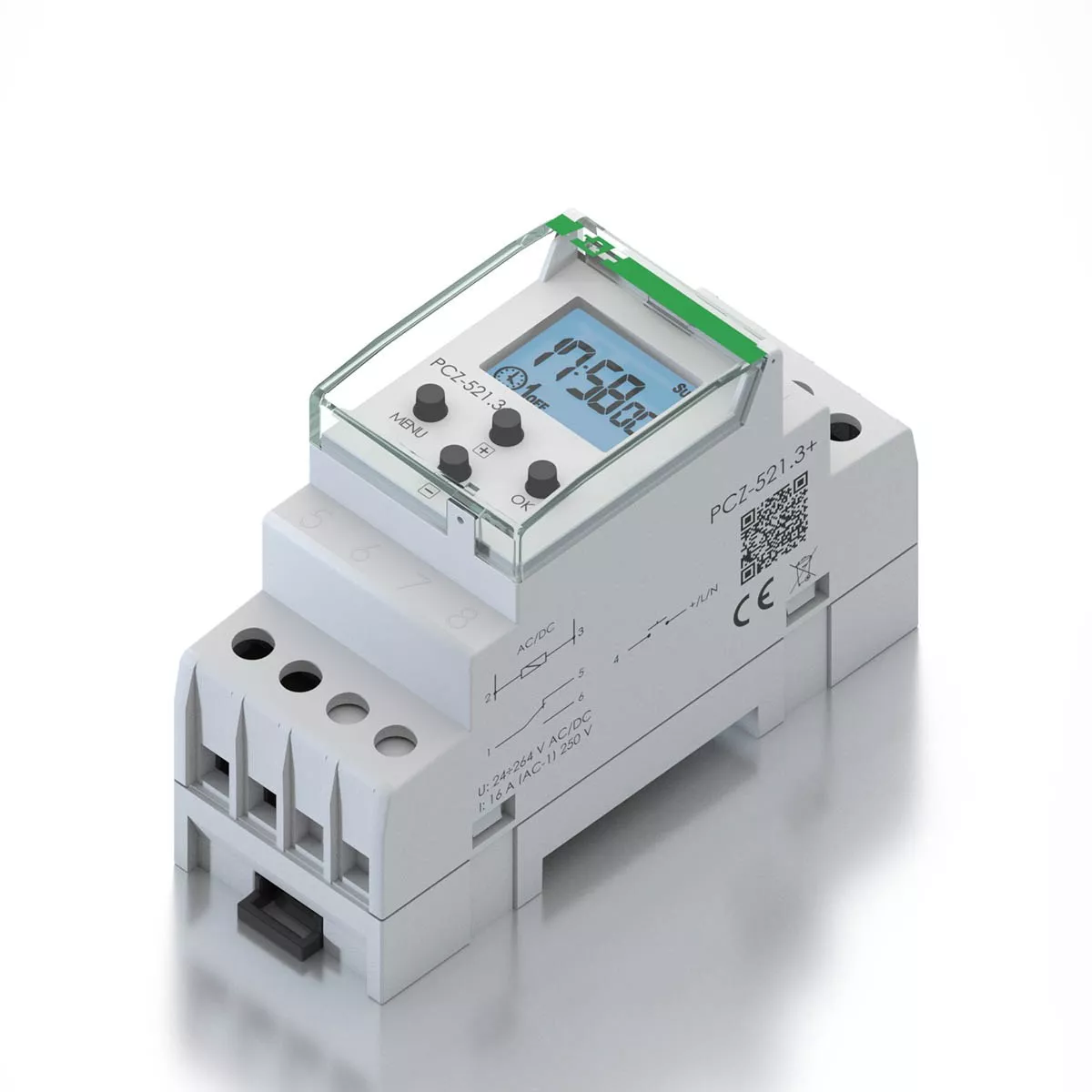

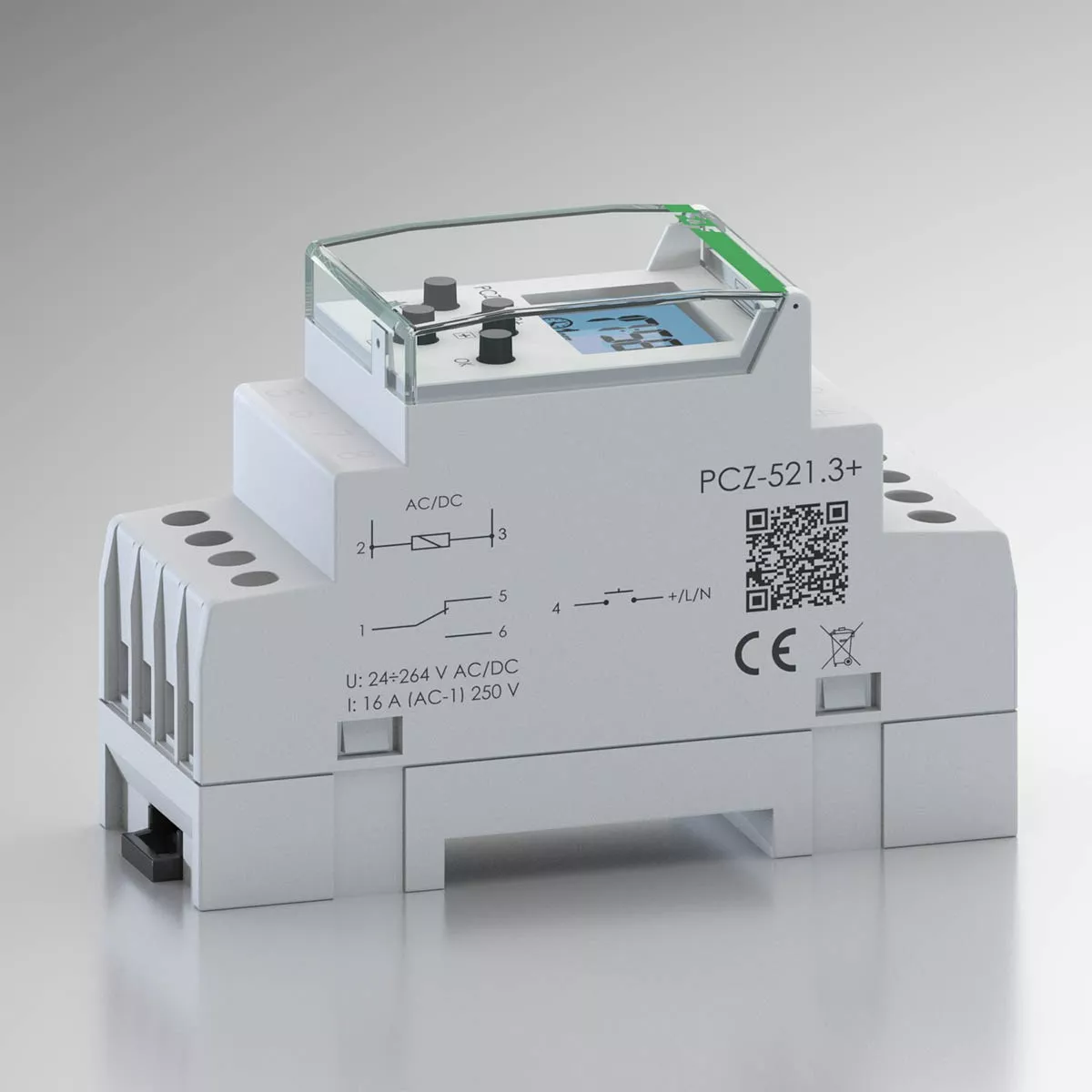

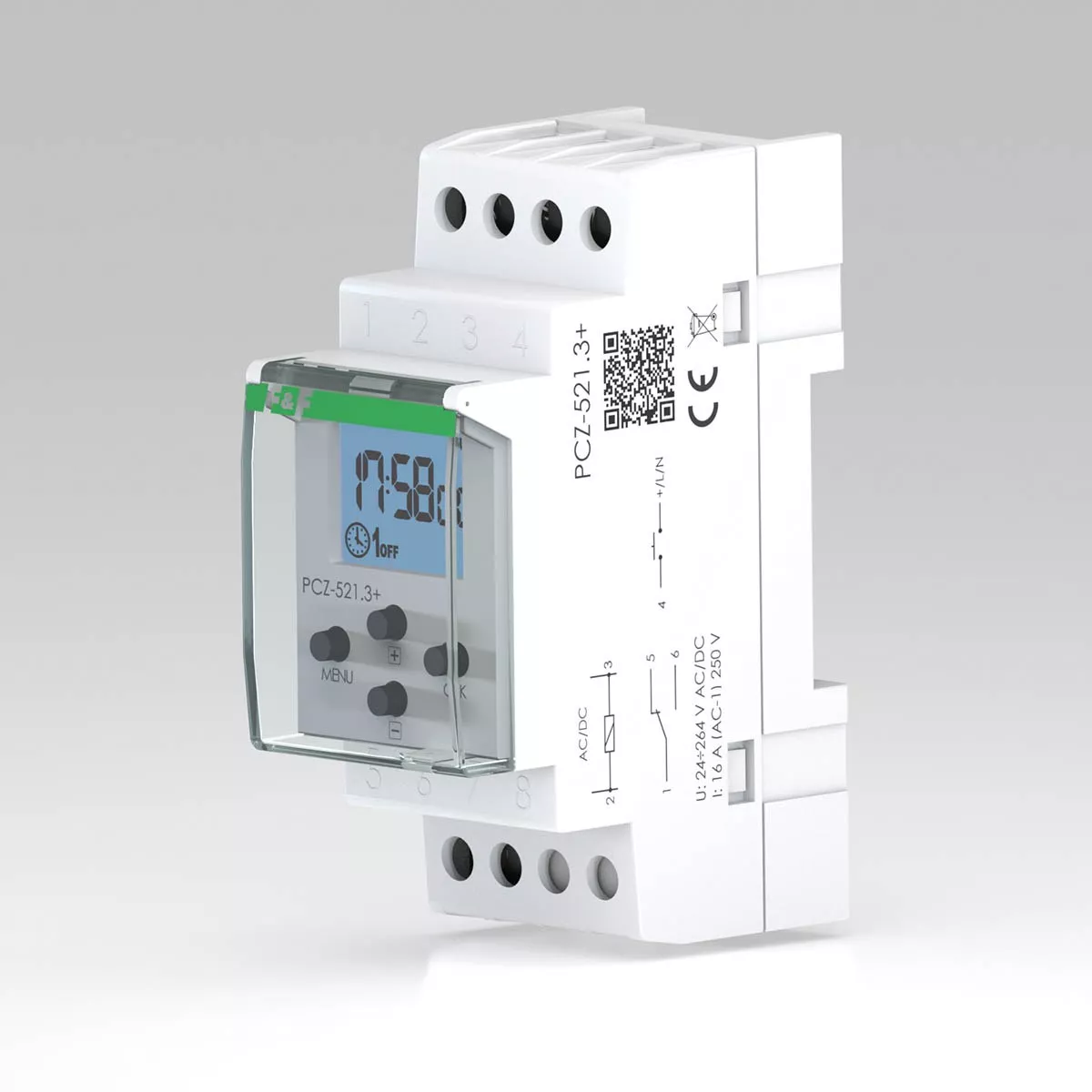

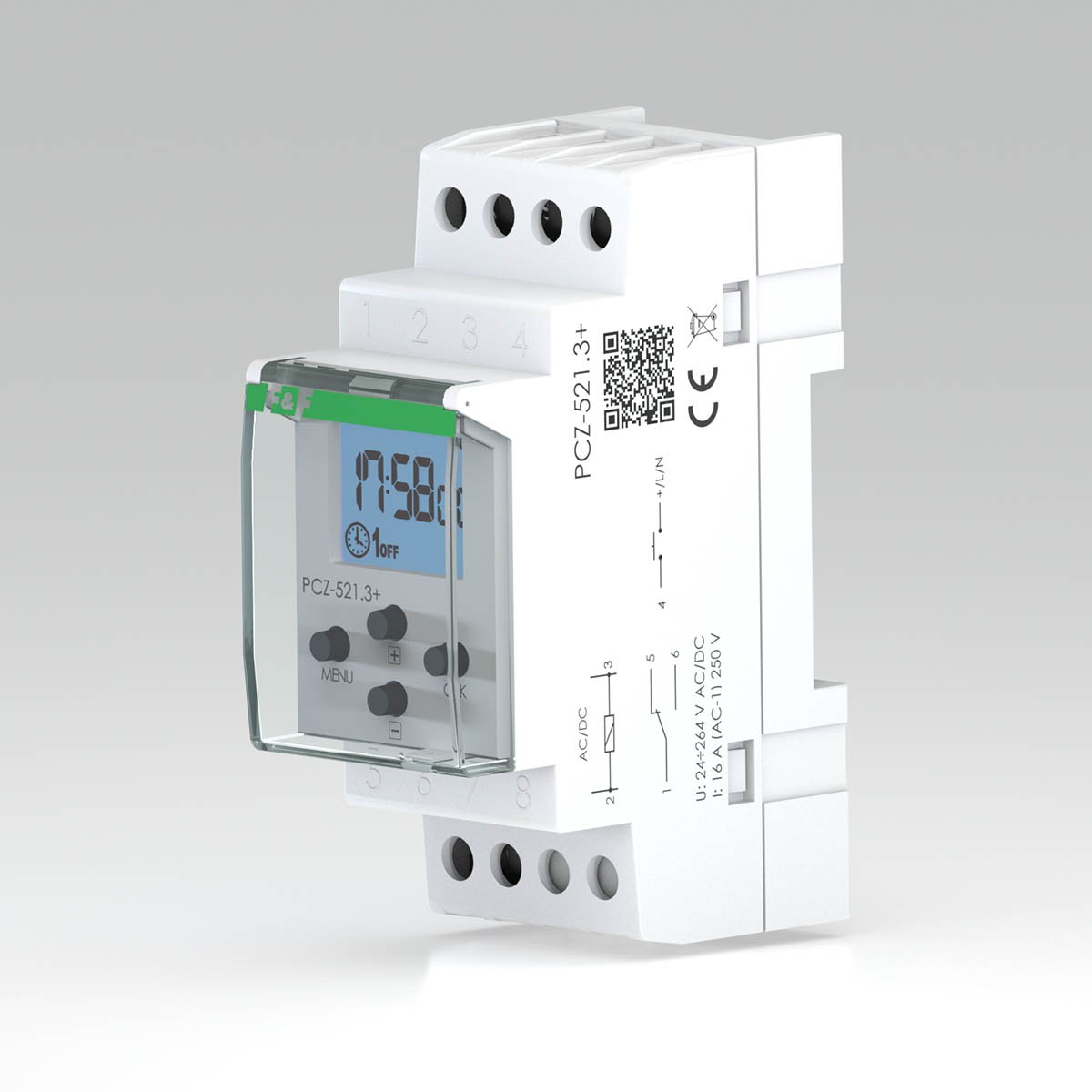

Zegar sterujący programowalny tygodniowy, 1-kanałowy - programowalny przez NFC, z podświetleniem
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | PCZ |
| Symbol | PCZ-521.3-PLUS |
| GTIN(EAN) | 5902431673134 |
| Price unit | piece |
| Catalog price | 284,13 zł (231,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
zasilanie 24÷264 V AC/DC maksymalny prąd obciążenia (AC-1) 16 A styk separowany 1×NO/NC czas podtrzymania pracy zegara 6 lat* typ baterii 2032 (litowa) czas podtrzymania pracy wyświetlacza brak dokładność wskazań zegara 1 s błąd czasu ±1 s/24 h dokładność nastawy czasu programu 1 min. liczba komórek pamięci programu 500 (250 par rozkazów ON/OFF) pobór mocy 1,5 W przyłącze zaciski śrubowe 2,5 mm² (linka) zaciski śrubowe 4,0 mm² (drut) moment dokręcający 0,5 Nm temperatura pracy -20÷50°C wymiary 2 moduły (35 mm) montaż na szynie TH-35 stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 110 g |
| ETIM class: | Digital time switch for distribution board |
| Mounting method: | DIN rail |
| Number of channels: | 1 |
| Supply voltage: | 24 - 264 V |
| Voltage type (supply voltage): | AC/DC |
| Accuracy per day: | 1 s |
| External programming: | yes |
| With memory card: | no |
| 60 min program: | yes |
| 24 h program: | yes |
| Weekly program: | yes |
| Annual program: | no |
| Impulse program: | yes |
| Cycle program: | yes |
| Quartz controlled: | yes |
| Radio-controlled: | no |
| Radio-controlled (DCF77): | no |
| GPS (global positioning system): | no |
| Contact type: | Change-over contact (NO/NC) |
| Shortest switching time channel 1: | 1 min |
| Shortest switching time channel 2: | 1 min |
| Number of memory locations: | 500 |
| Automatic switching summer-/winter time: | yes |
| Suitable for manual operation: | yes |
| External pushbutton input: | yes |
| Nominal switching current at 250 V AC: | 16 A |
| Degree of protection (IP): | IP20 |
| Width in number of modular spacings: | 2 |
| Width: | 35 mm |
| Height: | 90 mm |
| Depth: | 65 mm |
