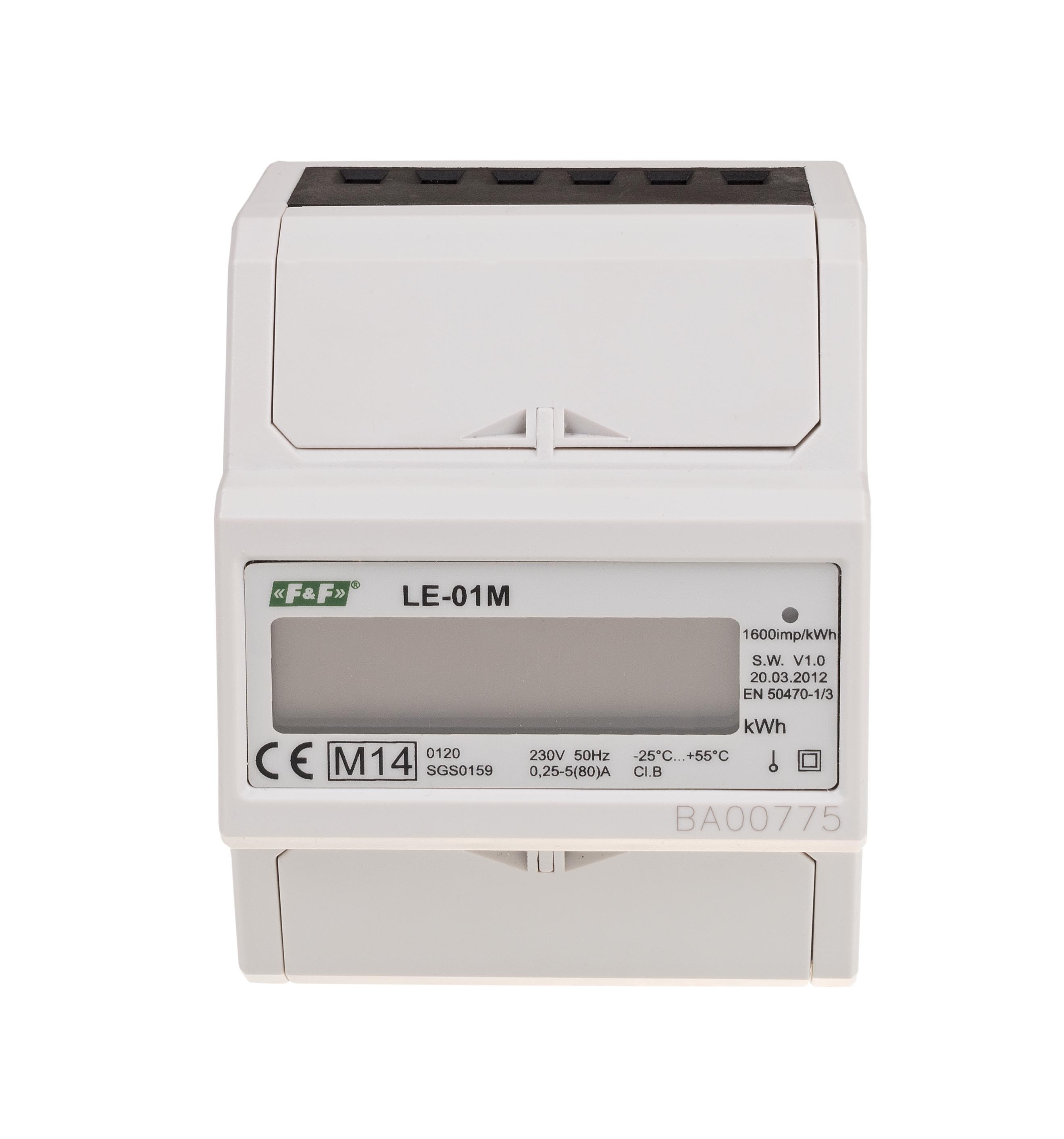

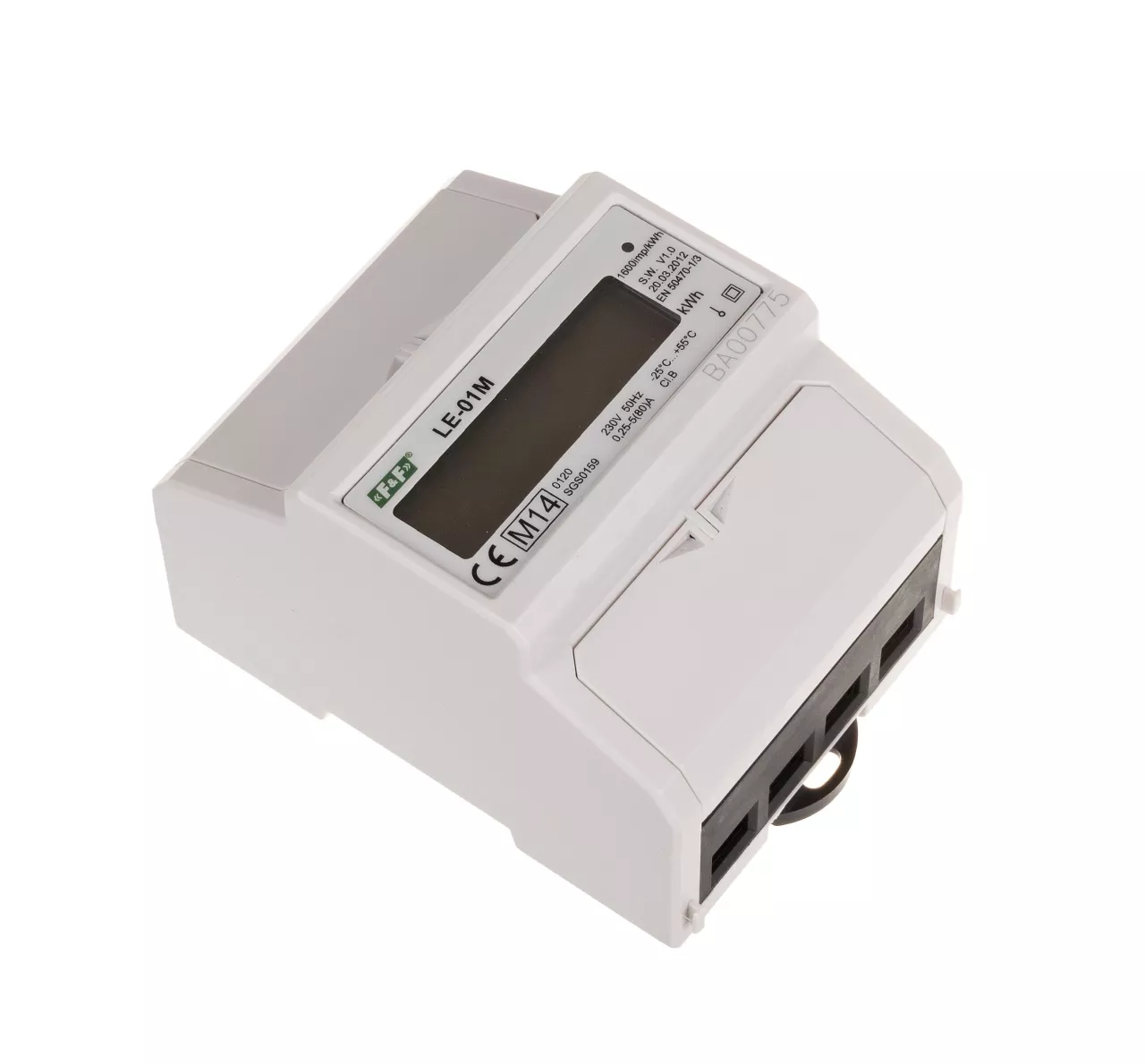

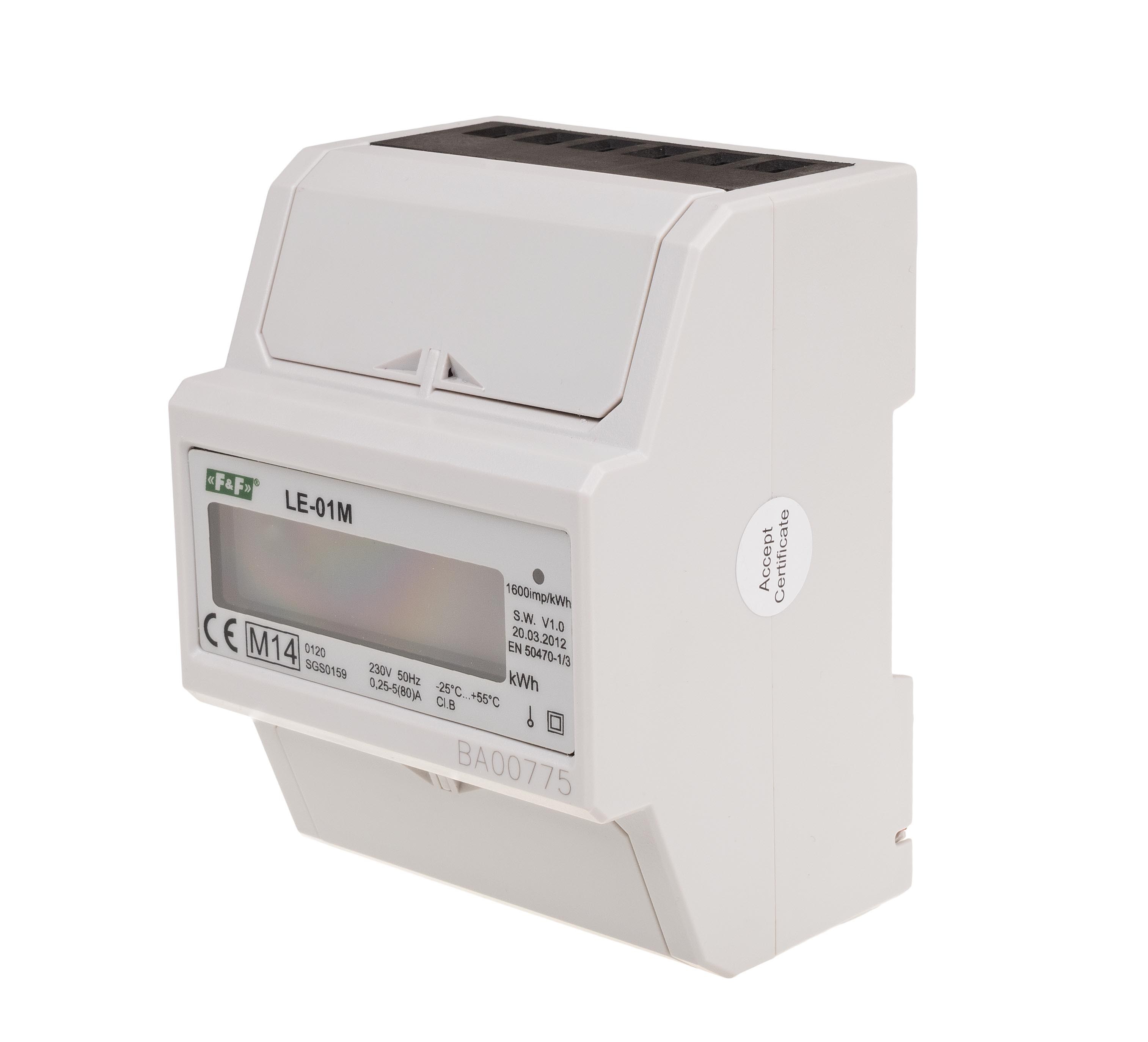

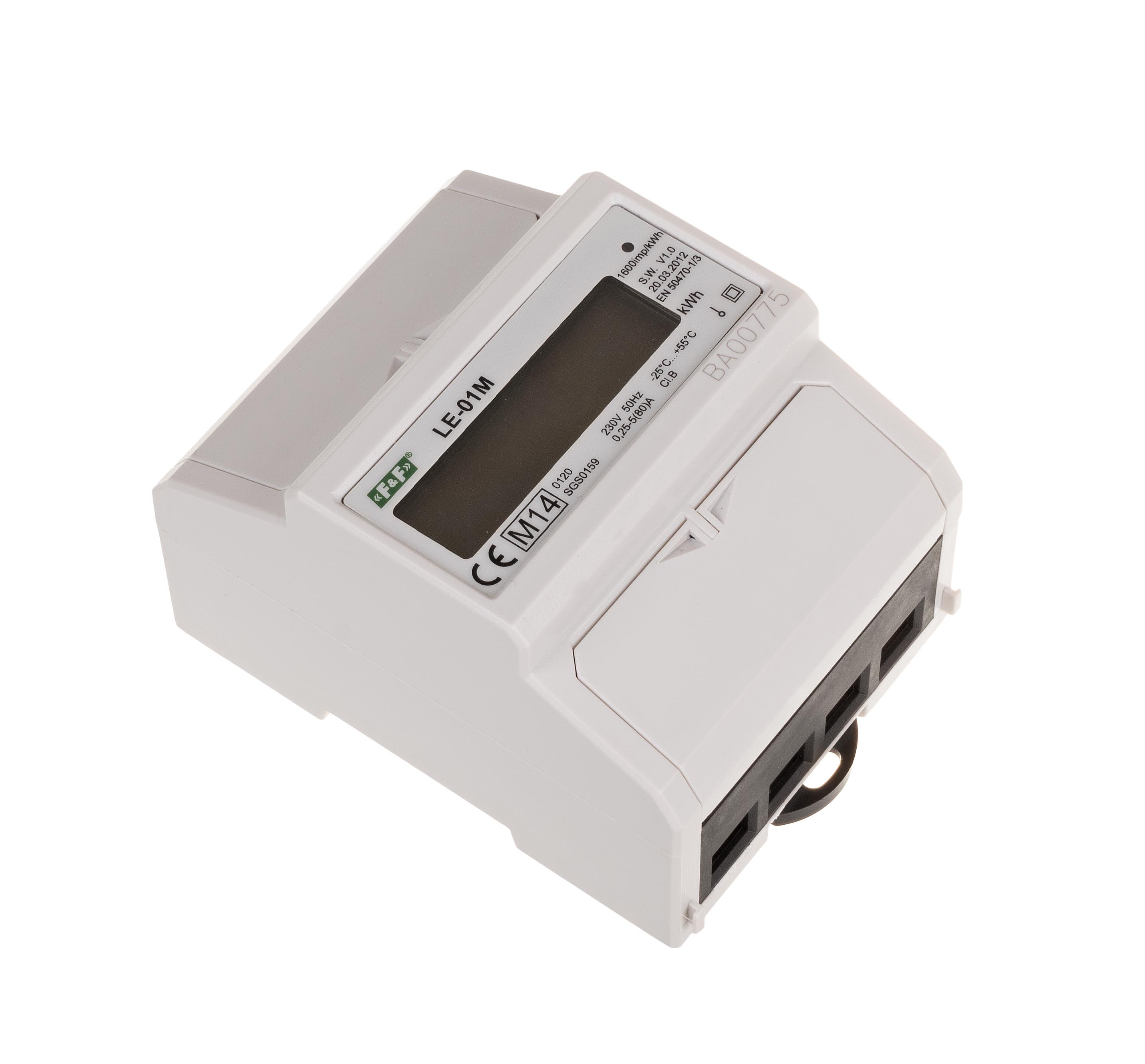

Licznik energii elektrycznej MODBUS RS-485 - jednofazowy LE-01M; MID
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | LE |
| Symbol | LE-01M |
| GTIN(EAN) | 5908312594390 |
| Price unit | piece |
| Catalog price | 257,07 zł (209,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Typ jednofazowy Porty RS-485 Protokół komunikacyjny MODBUS RTU Zgodność Dyrektywa MID 2014/32/EU Napięcie odniesienia 230 V AC ±30% Prąd bazowy 10 A Prąd maksymalny 100 A Minimalny prąd mierzony 0,04 A Dokładność pomiaru zgodnie z IEC61036 klasa 1 Pobór własny licznika 10 VA; 2 W Zakres wskazań liczydła 0÷99999,99 kWh Stała licznika (0,625 Wh/imp) 1600 imp/kWh Sygnalizacja sczytywania LED czerwona Wyjście impulsowe SO+ SO- otwarty kolektor Napięcie podłączenia SO+ SO- maks. 27 V DC Prąd podłączenia SO+ SO- maks. 27 mA Czas impulsu SO+ SO- 34÷80 ms Przyłącze zaciski śrubowe 25 mm² Wymiary 4,5 modułu (75 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 364 g |
| ETIM class: | Kilowatt-hour meter |
| Type of meter: | Electronic |
| Nominal current (In): | 5 A |
| Max. current (Imax): | 100 A |
| Accuracy class: | B |
| Pole type: | Single phase |
| Model: | Direct measurement |
| Energy type: | Effective power |
| Suitable for: | Purchase |
| Tariff type: | One-tariff |
| Tariff control: | External |
| Measurement type load profile: | no |
| Escapement mechanism: | yes |
| Calibrated: | no |
| Approval: | Measuring Instruments Directive |
| Pulse output: | Electrical |
| Pulse type: | S0 |
| Type of indication: | Digital |
| Mounting method: | DRA (DIN-rail adapter) |
| Width in number of modular spacings: | 4.5 |
| Type of interface: | RS-485 |
| EEC40 signature: | no |
| With lock code: | no |
| Degree of protection (IP): | IP20 |
