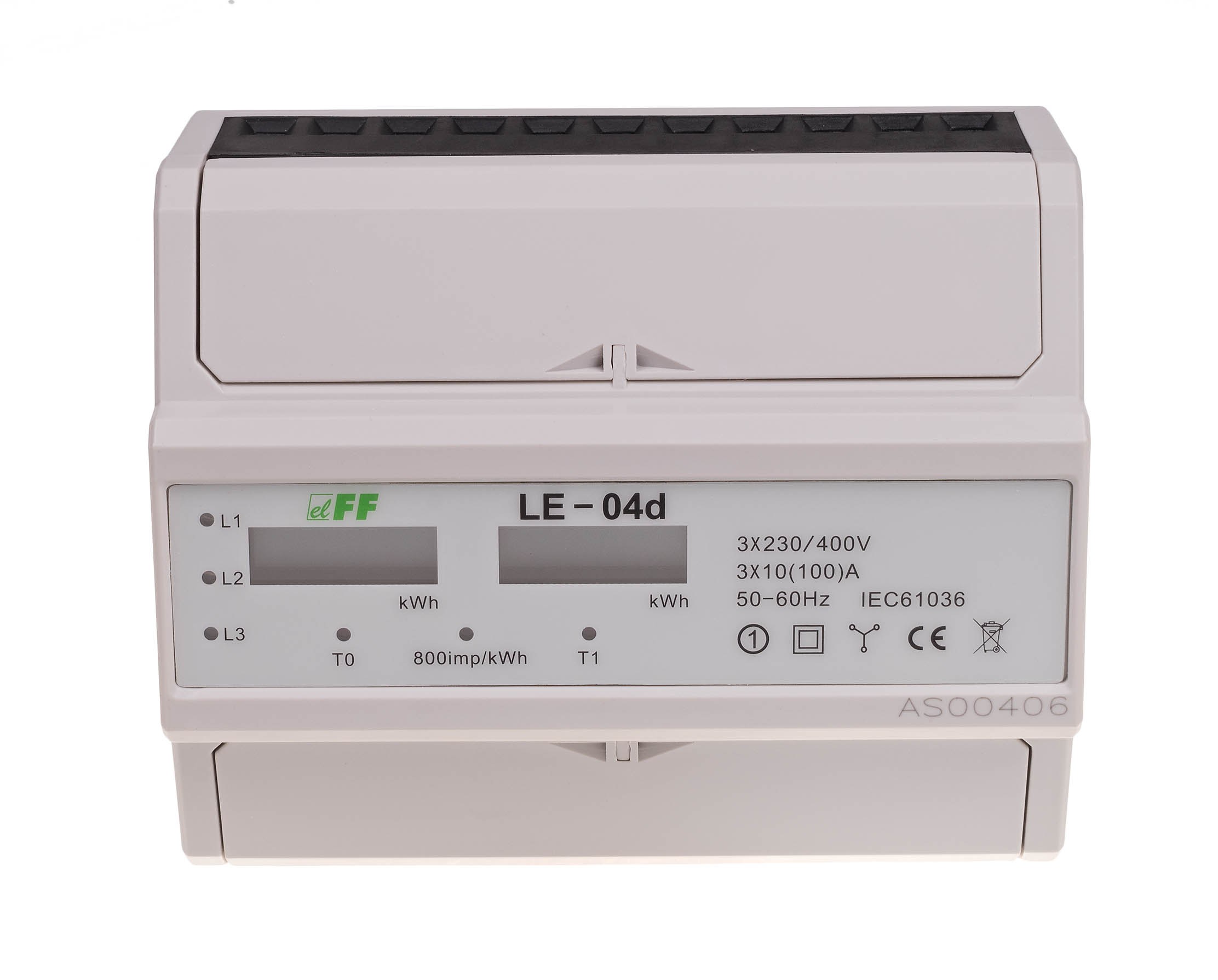

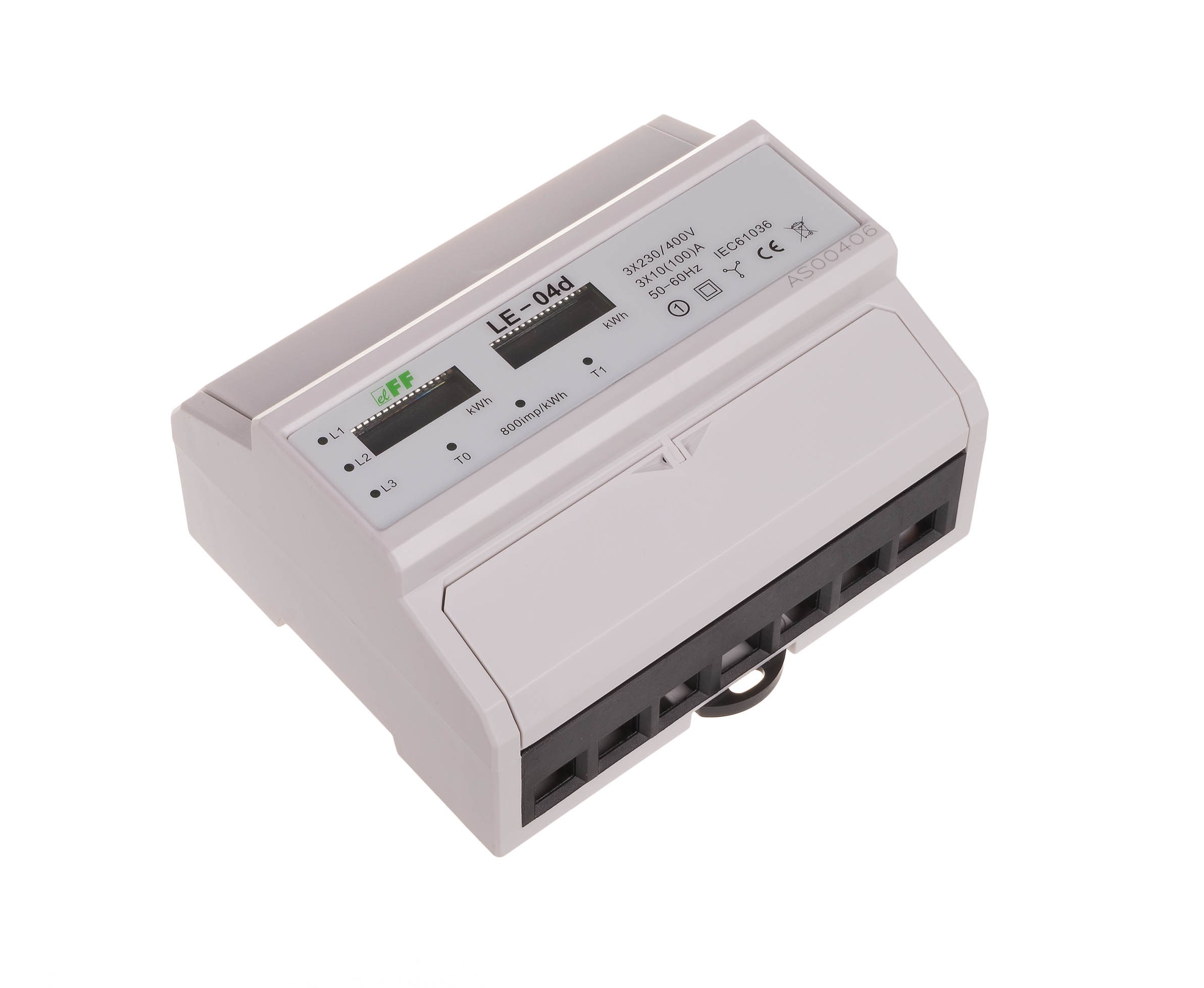

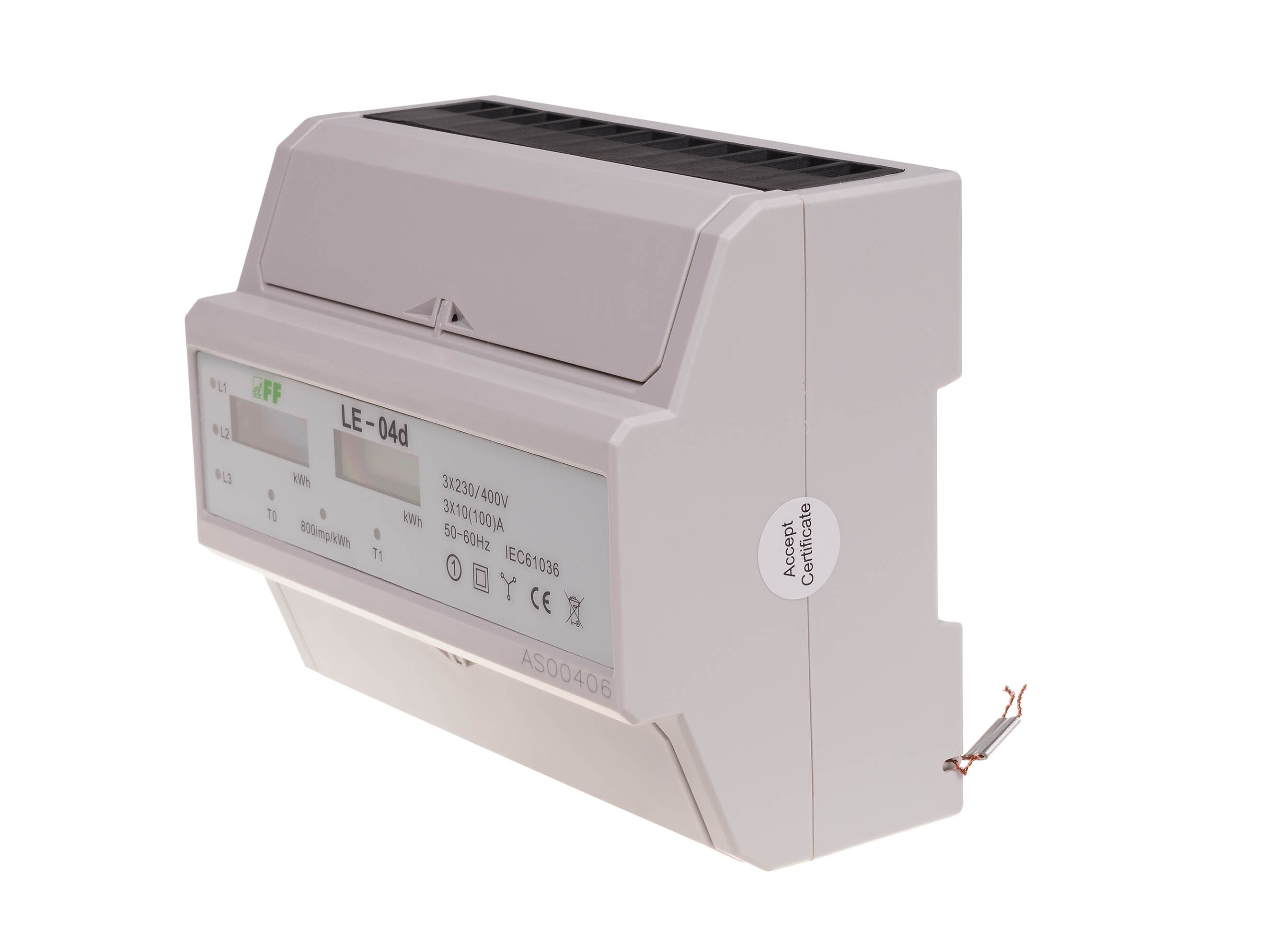

Licznik energii elektr. dwutaryfowy LCD
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | LE |
| Symbol | LE-04d |
| GTIN(EAN) | 5908312593379 |
| Price unit | piece |
| Catalog price | 713,40 zł (580,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Typ trójfazowy Protokół komunikacyjny brak Napięcie odniesienia 3×400 V+N Prąd bazowy 10 A Prąd maksymalny 100 A Minimalny prąd mierzony 0,04 A Dokładność pomiaru zgodnie z IEC61036 klasa 1 Zakres wskazań liczydła 0÷99999,99 kWh Stała licznika (1,25 Wh/imp) 800 imp/kWh Sygnalizacja sczytywania 2 x LED czerwona Prąd podłączenia SO+ SO- maks. 30 mA Czas impulsu SO+ SO- 30 ms Sygnalizacja poboru prądu 3×LED czerwona Wyjście impulsowe VO otwarty kolektor Napięcie podłączenia VO maks. 24 V DC Przyłącze zaciski śrubowe 25 mm² Temperatura pracy -20÷55°C Wymiary 7 modułów (122 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 467 g |
| ETIM class: | Kilowatt-hour meter |
| Type of meter: | Electronic |
| Nominal current (In): | 10 A |
| Max. current (Imax): | 100 A |
| Accuracy class: | B |
| Pole type: | Three conductor |
| Model: | Direct measurement |
| Energy type: | Effective power |
| Suitable for: | Purchase |
| Tariff type: | Two-tariff |
| Measurement type load profile: | no |
| Escapement mechanism: | yes |
| Calibrated: | no |
| Approval: | Domestic |
| Pulse output: | Electrical |
| Pulse type: | S0 |
| Type of indication: | Digital |
| Width in number of modular spacings: | 7 |
| EEC40 signature: | no |
| With lock code: | no |
| Degree of protection (IP): | IP20 |
