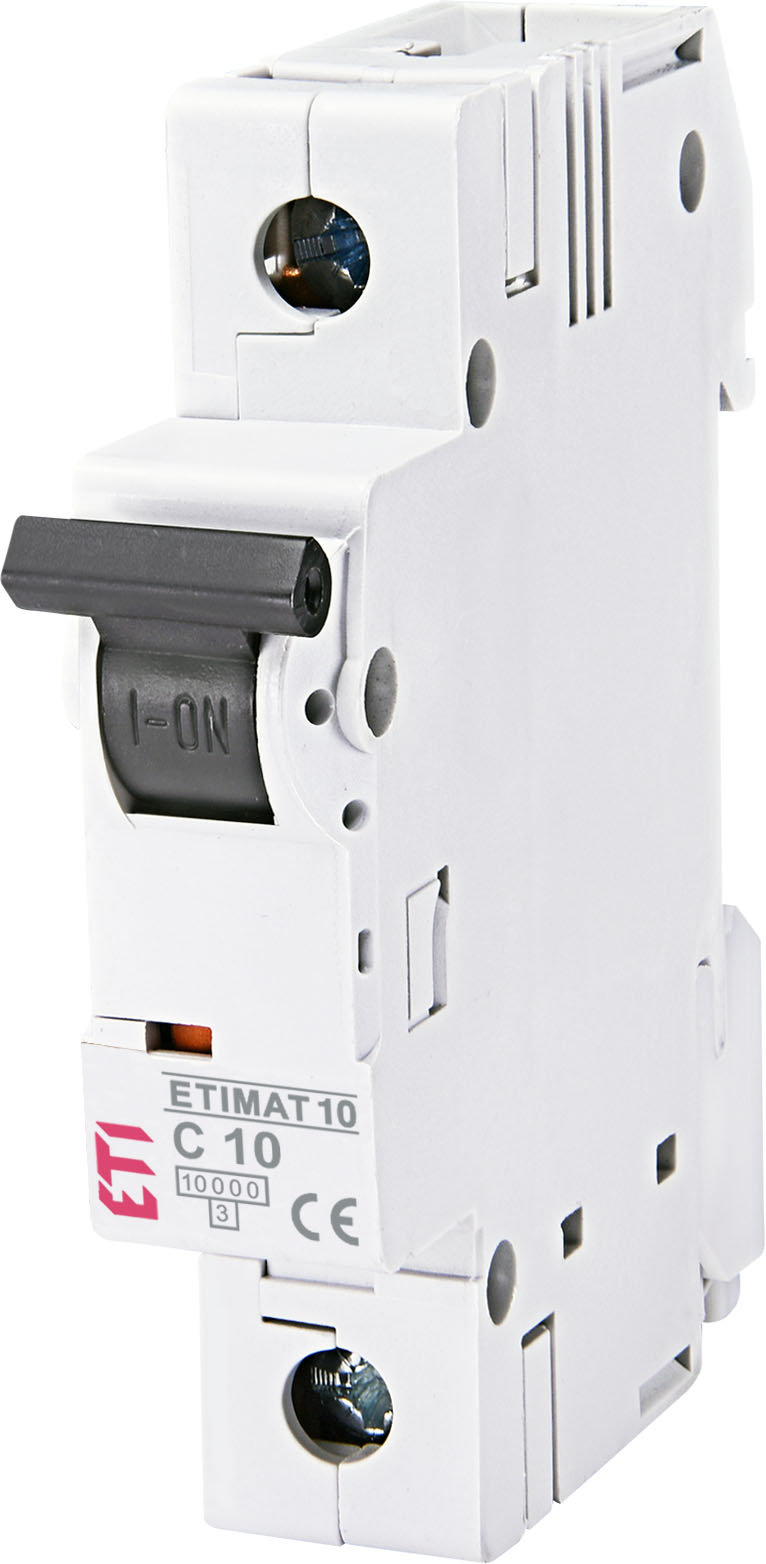

ETIMAT 10 1p C10 Wyłącznik nadprądowy
Information | Value |
---|---|
Supplier | ETI-POLAM Sp. z o.o. |
Series | ASTI - ETIMAT |
Symbol | 002131714 |
GTIN(EAN) | 5904722938076 |
Price unit | piece |
Catalog price | 41,44 zł (33,69 zł + 23% VAT) |
Sale price | from 8,61 zł (7,00 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
Information | Value |
---|---|
Net weight: | 114,4 g |
ETIM class: | Miniature circuit breaker (MCB) |
Release characteristic: | C |
Number of poles (total): | 1 |
Number of protected poles: | 1 |
Rated current: | 10 A |
Rated insulation voltage Ui: | 500 V |
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 10 kA |
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 10 kA |
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: | 15 kA |
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: | 15 kA |
Voltage type: | Other |
Frequency: | 50 - 60 Hz |
Current limiting class: | 3 |
Over voltage category: | 3 |
Pollution degree: | 3 |
Additional equipment possible: | yes |
Width in number of modular spacings: | 1 |
Built-in depth: | 68 mm |
Degree of protection (IP): | IP20 |
Ambient temperature during operating: | -25 - 55 °C |
Connectable conductor cross section multi-wired: | 1 - 25 mm² |
Connectable conductor cross section solid-core: | 1 - 25 mm² |
