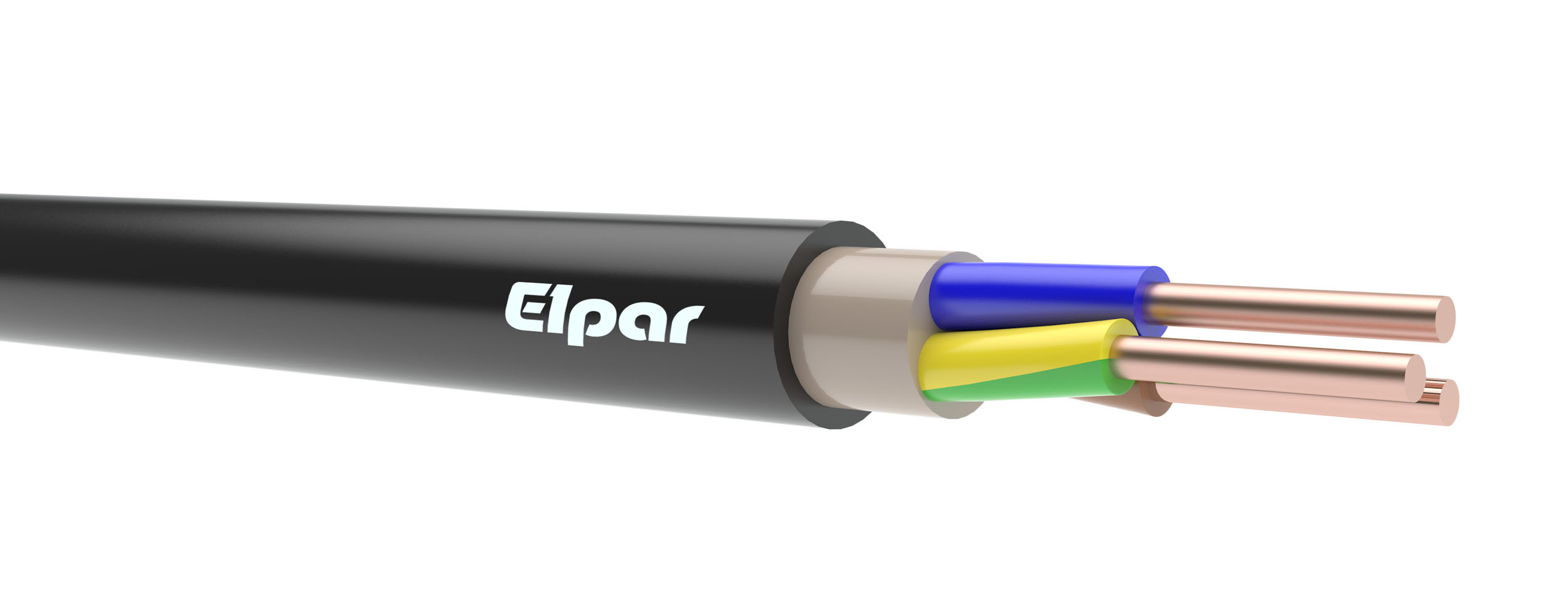

YKY 0,6/1kV 3x2,5 RE mm2; Kabel
| Information | Value |
|---|---|
| Supplier | ELPAR Fabryka Kabli Sp. z o.o. |
| Symbol | 5901854415260 |
| GTIN(EAN) | 5901854415260 |
| Price unit | kilometer |
| Catalog price | 11 719,44 zł (9 528,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 188,8 kg |
| ETIM class: | Power cable < 1 kV, for permanent installation |
| Conductor material: | Copper |
| Conductor surface: | Bare |
| Nominal cross section conductor: | 2.5 mm² |
| Diameter conductor: | 10.9 mm |
| Conductor category: | Class 1 = solid |
| Number of cores: | 3 |
| Twisted cores: | yes |
| Material core insulation: | Polyvinyl chloride (PVC) |
| Specification core insulation: | Other |
| Core identification: | Colour |
| Core colour: | Several |
| Max. conductor temperature: | 70 °C |
| Screen: | no |
| Drain wire: | no |
| Protective barrier: | None |
| Armouring/reinforcement: | None |
| Material outer sheath: | Polyvinyl chloride (PVC) |
| Specification material outer sheath: | Other |
| Colour outer sheath: | Black |
| Cable geometry: | Round |
| Reaction-to-fire according to EN 13501-6: Class: | Eca |
| Reaction-to-fire according to EN 13501-6: Smoke production: | None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | None |
| Reaction-to-fire according to EN 13501-6: Acidity: | None |
| Low temperature resistant according to EN 60811-504+505+506: | no |
| Oil resistant according to EN IEC 60811-404: | no |
| Outer diameter approx.: | 10.6 mm |
| Min. permitted bending radius, stationary application/permanent installation: | 127.2 mm |
| Nominal voltage U0: | 600 V |
| Nominal voltage U: | 1000 V |
| Shape of conductor: | Round |
| Suitable as installation cable: | no |
| Certified for shipboard application: | no |
| Certified as airport lighting cable: | no |
| Low smoke according to EN IEC 61034-2: | no |
