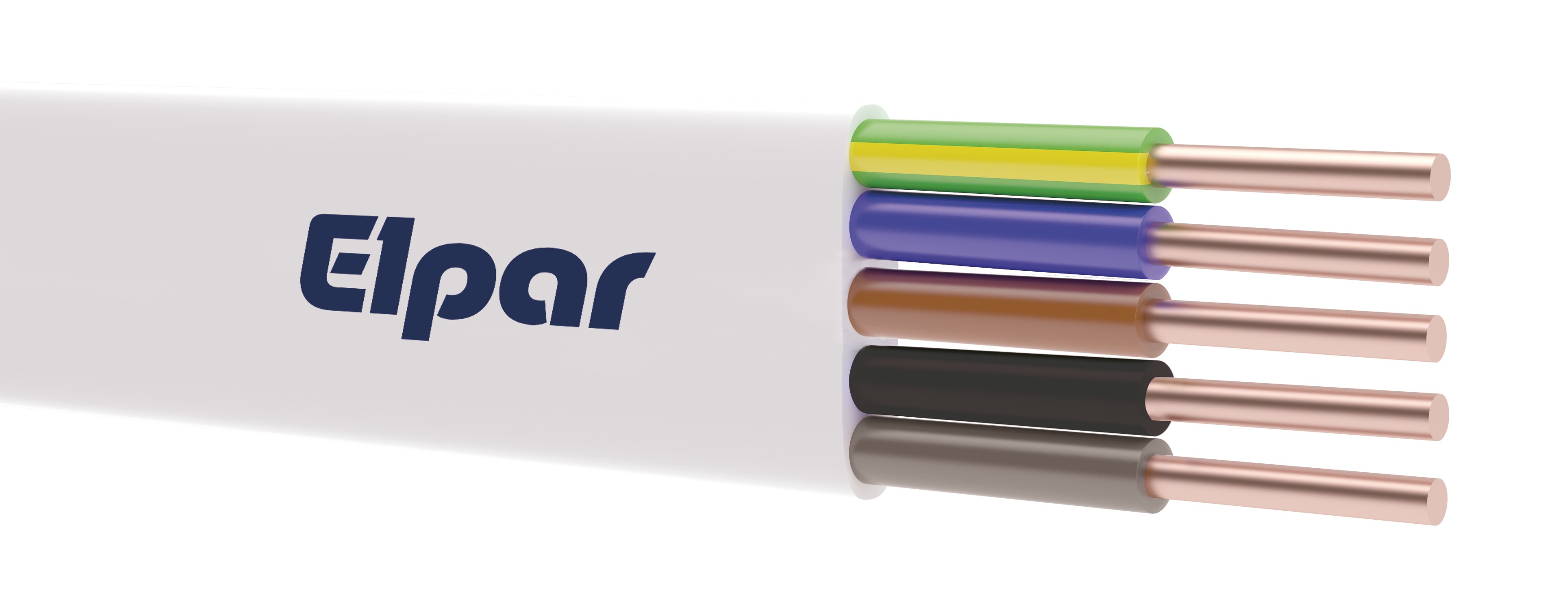

YDYpżo 450/750V 5x6 mm2; Przewód
| Information | Value |
|---|---|
| Supplier | ELPAR Fabryka Kabli Sp. z o.o. |
| Symbol | 5901854413167 |
| GTIN(EAN) | 5901854413167 |
| Price unit | kilometer |
| Catalog price | 27 823,83 zł (22 621,00 zł + 23% VAT) |
| Sale price |
from 9,11 zł
/ m from 9 112,25 zł / km (7 408,33 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 441,1 kg |
| ETIM class: | Power cable < 1 kV, for permanent installation |
| Conductor material: | Copper |
| Conductor surface: | Bare |
| Nominal cross section conductor: | 6 mm² |
| Conductor category: | Class 1 = solid |
| Number of cores: | 5 |
| Twisted cores: | yes |
| Material core insulation: | Polyvinyl chloride (PVC) |
| Specification core insulation: | Other |
| Core identification: | Colour |
| Core colour: | Several |
| Max. conductor temperature: | 70 °C |
| Screen: | no |
| Drain wire: | no |
| Protective barrier: | None |
| Armouring/reinforcement: | None |
| Material outer sheath: | Polyvinyl chloride (PVC) |
| Specification material outer sheath: | Other |
| Colour outer sheath: | White |
| Cable geometry: | Flat |
| Reaction-to-fire according to EN 13501-6: Class: | Eca |
| Reaction-to-fire according to EN 13501-6: Smoke production: | None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | None |
| Reaction-to-fire according to EN 13501-6: Acidity: | None |
| Low temperature resistant according to EN 60811-504+505+506: | no |
| Oil resistant according to EN IEC 60811-404: | no |
| Min. permitted bending radius, stationary application/permanent installation: | 149.4 mm |
| Nominal voltage U0: | 450 V |
| Nominal voltage U: | 750 V |
| Shape of conductor: | Round |
| Suitable as installation cable: | yes |
| Certified for shipboard application: | no |
| Certified as airport lighting cable: | no |
| Low smoke according to EN IEC 61034-2: | no |
buy at the outlet / on sale
Wholesaler / branch / Address
Distance
Available
Price
Actions
DORIAN DKL Sp. z o.o. - oddział Płock
Płock, Przemysłowa 18
Płock, Przemysłowa 18
Distance:
0.006 kilometra
9,11 zł/m
(9 112,25 zł/km)
(9 112,25 zł/km)
Buy online
Buy / order
Wholesaler
Address
Distance
Available
Actions
Kwidzyn,
Toruńska 34
Distance:
Dostępność:
0.246 km
Piaseczno,
Jana Pawła II 62
Distance:
Dostępność:
0.38 km
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-11-04 11:20:13 |
| Files to download: |
