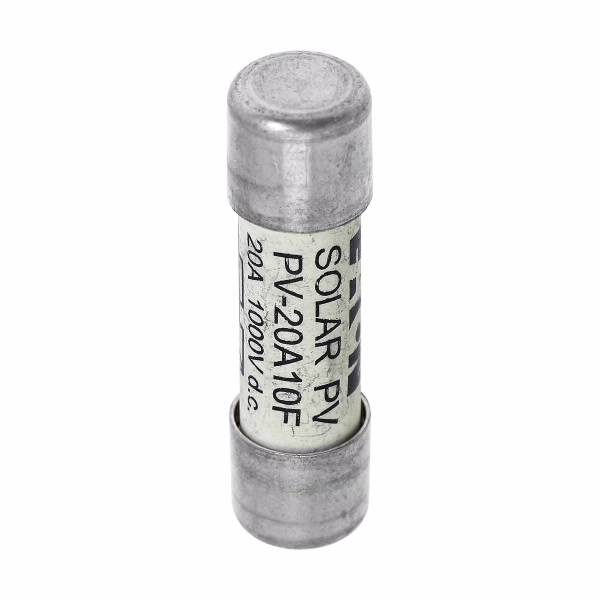

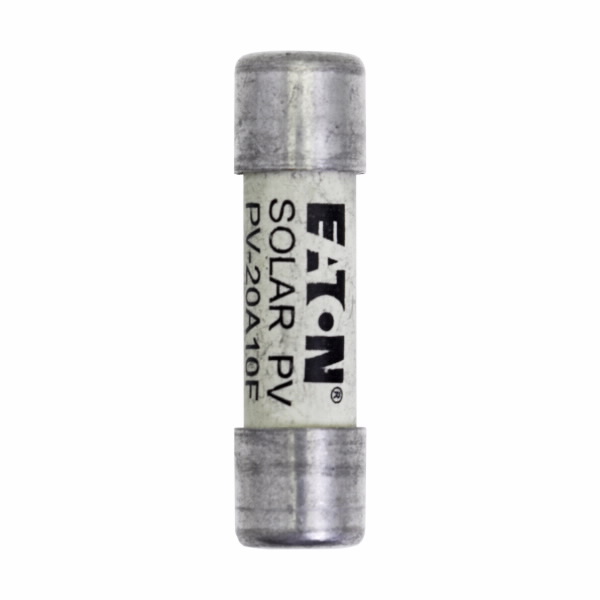

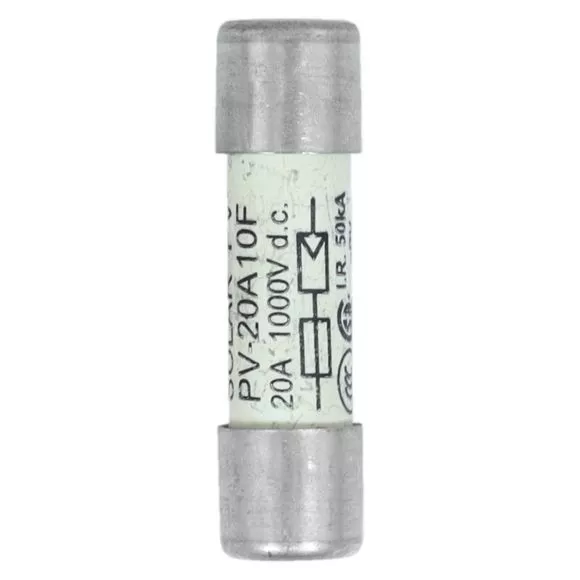

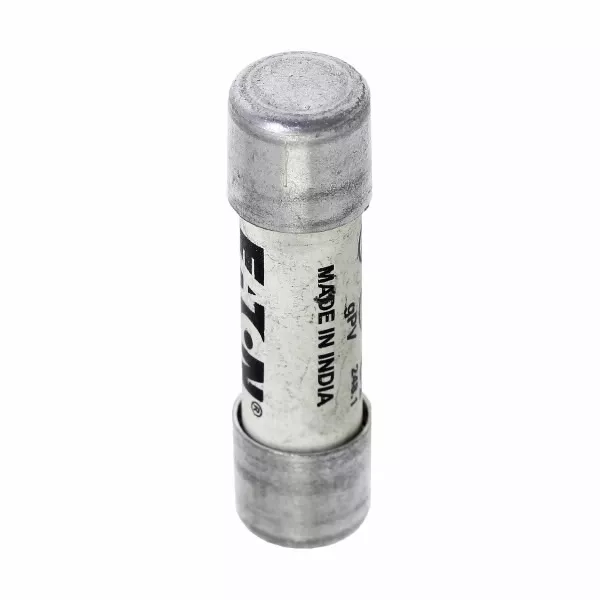

PV-20A10F 20A 1000Vdc wkładka cylindryczna 10x38 do PV
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | PV-20A10F |
GTIN(EAN) | 5027590505802 |
Price unit | piece |
Catalog price | 41,91 zł (34,07 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 9,7 g |
ETIM class: | Cylindrical fuse |
Model: | Ceramic fuse |
Size: | 10x38 mm |
Voltage type: | DC |
Rated current: | 20 A |
Rated voltage: | 1000 V |
Utilization category: | gPV (photovoltaic protection) |
Rated operating frequency: | 0 - 0 Hz |
Type of fuse status indicator: | Other |
Release characteristic: | Other |
Breaking capacity: | 50 kA |
Power loss at rated current: | 2.1 W |
